Fujitsu ABUH18LUAS - Forced Thermostat off; Rotary Switch; Input Signal

¢

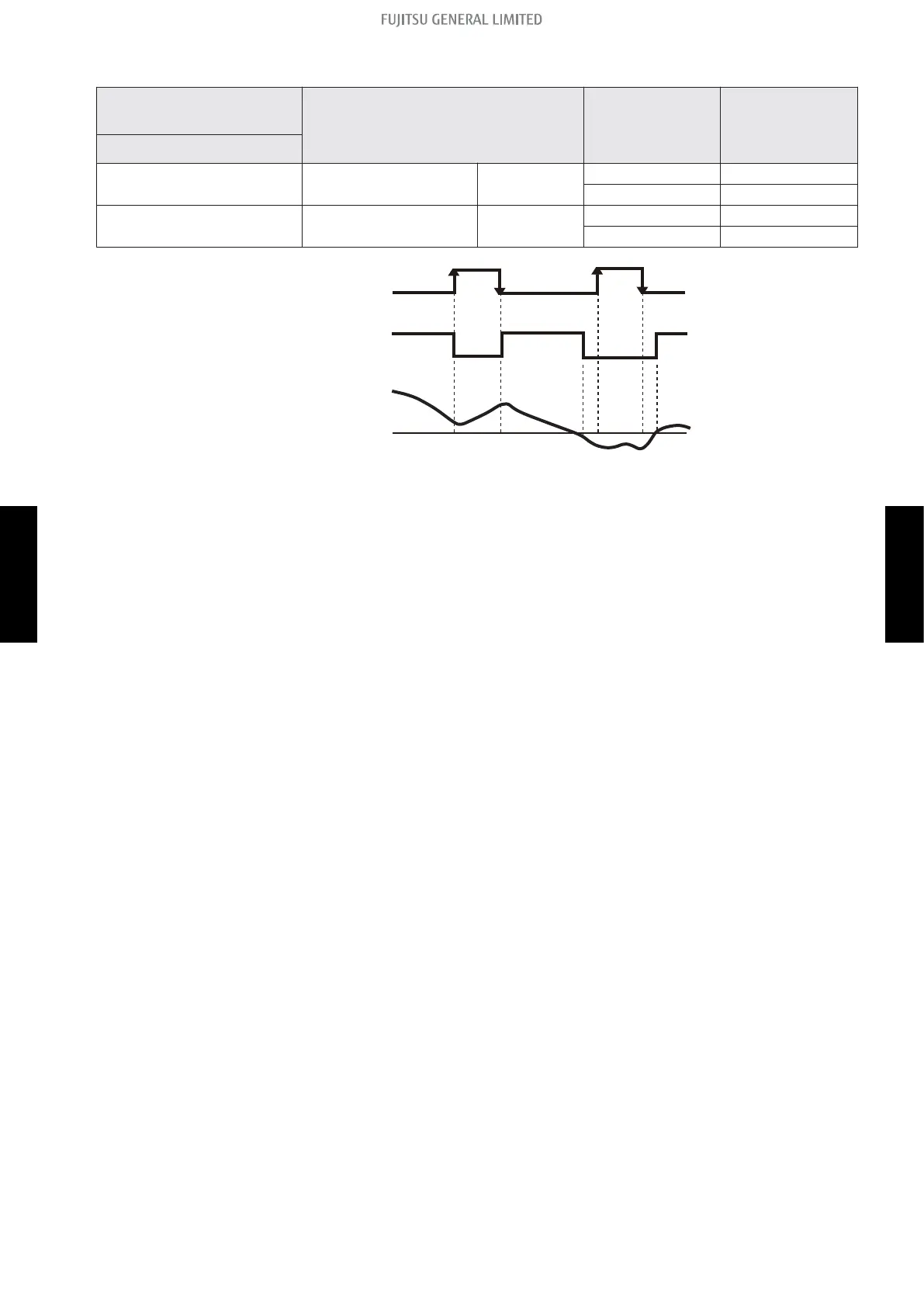

Forced thermostat off
External Input and Output
PCB
External input Input signal Command
Rotary switch
2, B, C, D
External Input and
Output PCB
Ex IN 1
Off  On Thermostat off
On  Off Normal operation
4, 7, 8, A
External Input and
Output PCB
Ex IN 1
Off  On Thermostat off
On  Off Normal operation
On
Off
On
Off
Compressor
Room temp.
Set temp.
Ex IN 1
3-4. Details of control input function - (05-23) - 3. External input and output (for indoor unit)
