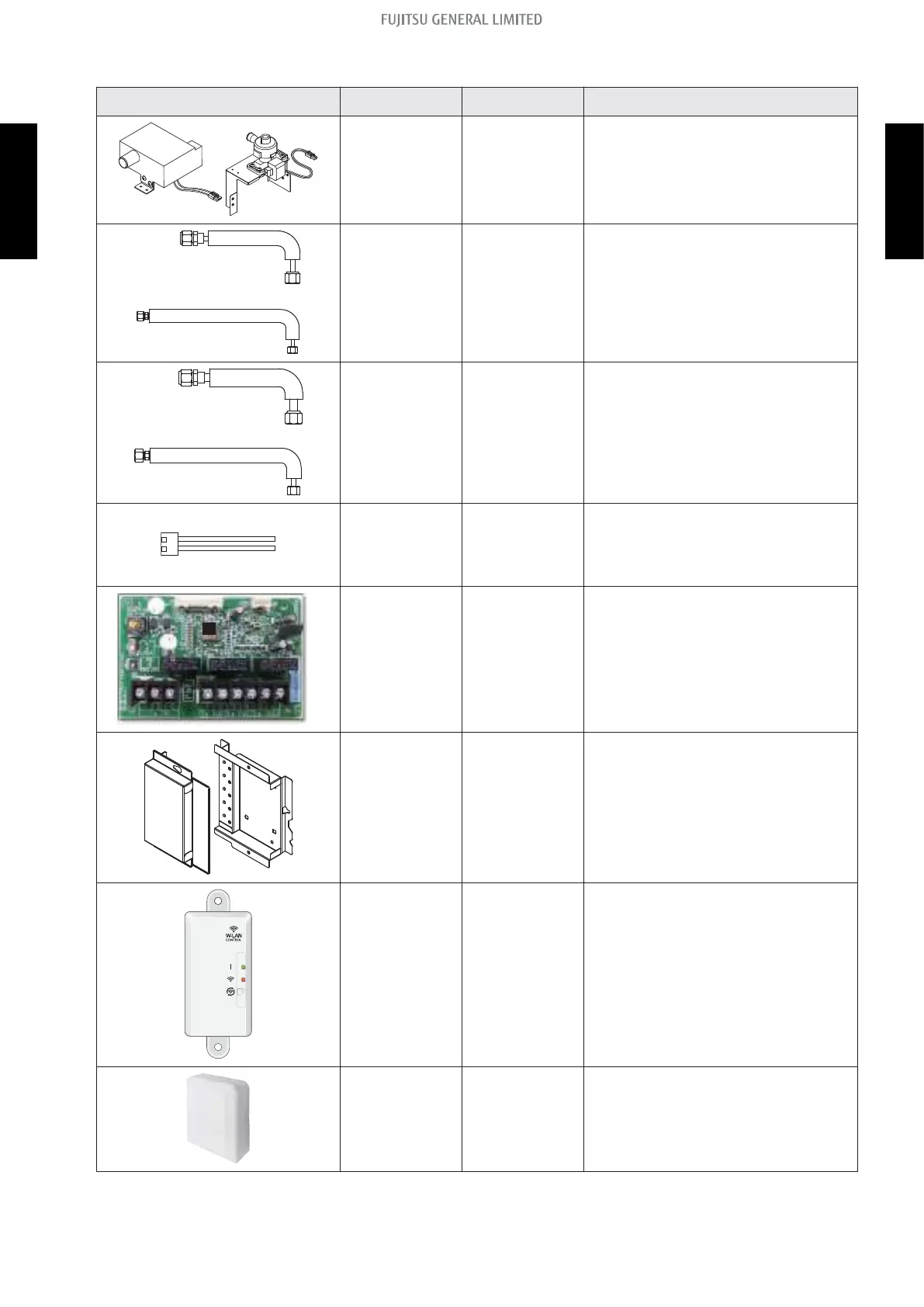

Exterior Part name Model name Summary
Drain Pump Unit UTZ-PU1EBB
Optional drain lift up mechanism
allows more flexible installation.
Auxiliary Pipe
Assembly
UTP-F↓24A
For piping of upward direction only.
• For liquid: 1/4 in (6.35 mm)
• For gas: 1/2 in (12.70 mm)
Auxiliary Pipe
Assembly
UTP-F↓35A
For piping of upward direction only.
• For liquid: 3/8 in (9.52 mm)
• For gas: 5/8 in (15.88 mm)
External
Connect Kit
UT↔-↓→Z↓ZG
Use to connect with various peripheral
devices and air conditioner PCB.
For control output port.
Connecting point: CN47 on Main PCB
External Input
and Output PCB
UT↔-↓CS↓
Use to connect with external devices
and air conditioner PCB.
Connecting point: CN65 or CN75 on
Main PCB
External Input
and Output PCB
Box
UTZ-G↓EA
For installing the External input and
output PCB.
→LAN Adapter UT↔-TFS↓J4
Remotely manage an air conditioning
system using mobile devices such as
smartphones and tablets.
For connection indoor unit with UART
interface.
Appropriate application for each region
is required to use this option. For
details, contact FGL sales company.
Connecting point: CN75 on Main PCB
Modbus
Converter
UT↔-VMS↓
For connection between indoor unit
with UART interface and a Modbus
open network.
Connecting point: CN65 or CN75 on
Main PCB
