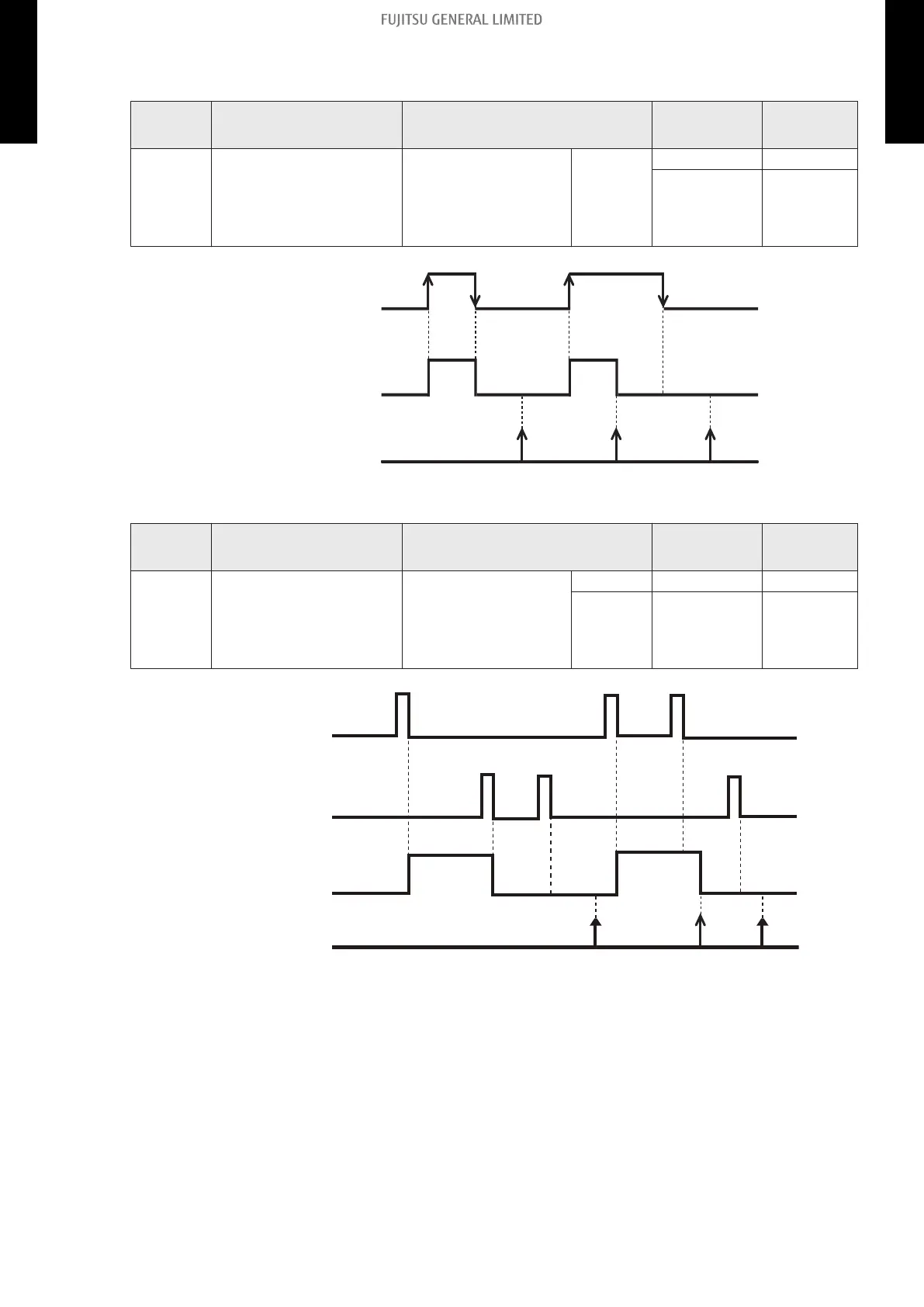

• When function setting is “Operation/Stop” mode 2
– In the case of “Edge” input:
Function
setting
Rotary SW on External
Input and Output PCB
External input Input signal Command
46-03 1
External Input and
Output PCB
CN313
Off → On Operation
On → Off
Stop
(Remote
controller
disabled)
On
CN313
Off
Operation
Indoor unit
Stop
(R.C. disabled)
Remote contoller
On OnOff
– In the case of “Pulse” input:
Function
setting
Rotary SW on External
Input and Output PCB
External input Input signal Command
46-03 1
External Input and
Output PCB
CN313 Pulse Operation
CN314 Pulse
Stop
(Remote
controller
disabled)
On
On
Off
Operation
Stop
Remote controller
On
Off
Indoor unit
CN313
CN314
(R.C. disabled)
Off
On
NOTE:
When “Operation/Stop” mode 2 function is used with forming a remote controller group,
connect the same equipment to each indoor unit within the group.
- 135 -
13-4. Details of function 13. External input and output (LPAS series wall mounted type indoor unit)
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type
