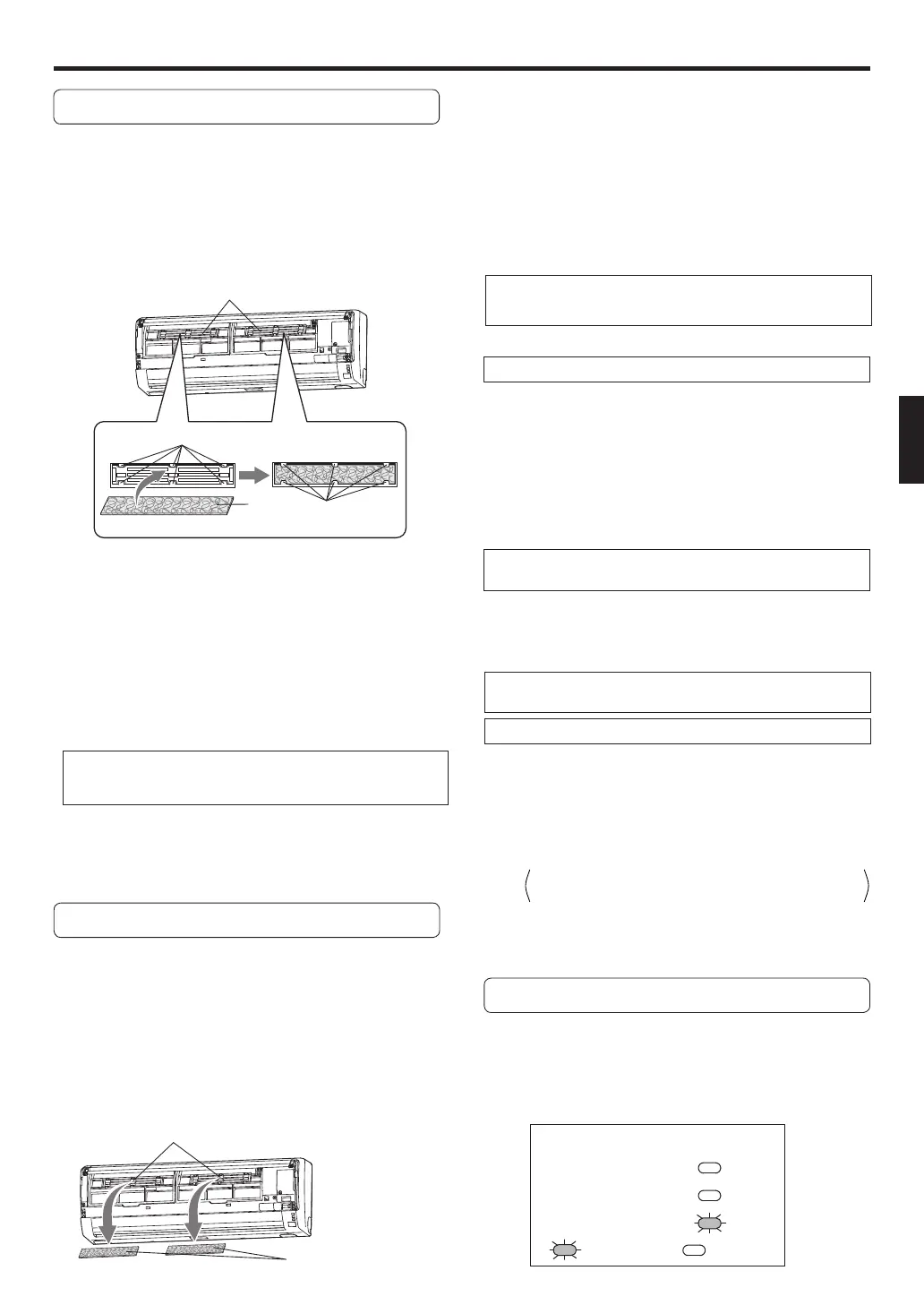

Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
fi lters.
2. Attach the air cleaning fi lter to the frame
of the front panel.
●
Attach the fi lter on the inside of the tabs (6 places) so as
not to stick out.
(In the above fi gure, the intake grille is omitted for the
explanation)
3. Install the 2 Air filters and close the In-
take Grille.
●
Don't operate the air conditioner with being opened the
intake grille.
●
When air cleaning fi lters are used, the effect will increased
by setting the fan speed to “High”.
3. Replace them by 2 new Air cleaning fi l-
ters.
1
Remove the old air cleaning fi lters in reverse order of
their installation.
2
Install in the same way as for installation of the air
cleaning fi lter set.
4. Install the 2 Air filters and close the In-
take Grille.
●
Don't operate the air conditioner with being opened the
intake grille.
About the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER
(1 sheet)
●
The Air Cleaning Filters are disposable fi lters. (They can not
be washed and reused.)
●
For storage of the Air Cleaning Filters, use the filters as
soon as possible after opening the package.
(The air cleaning effect decreases when the fi lters are left in
the opened package)
●
Generally, the filters should be exchanged about every 3
months.
Please buy dedicated air cleaning fi lters (UTR-FA16) (Sold
separately) to exchange the used dirty air cleaning fi lter.
[Negative air ions deodorizing fi lter (1 sheet) — light blue]
●
The fi lter should be exchanged about every 3 years so as
to maintain the deodorizing effect.
●
Filter frame is not a one-off product.
Please buy dedicated deodorizing fi lter (UTR-FA16-2) (Sold
separately) when exchanging the fi lter.
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the
fi lter in the follow way once 3 months.
1
Remove the deodorizing fi lter.
2
Clean with water and dry in the air.
1) Flush the fi lter with high-pressure hot water until the
surface of the filter is covered with water. Please
fl ush with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it
will damage the deodorizing effect.
2) Rinse with water fl ow.
3) Dry in shade.
3
Reinstall the deodorizing fi lter.
CLEANING AND CARE
Replacing dirty Air cleaning fi lters
Replace fi lters with the following components (purchased sep-
arately).
●
POLYPHENOL CATECHIN AIR CLEANING FILTER
: UTR-FA16
●
Negative air ions deodorizing fi lter: UTR-FA16-2
1. Open the Intake Grille and remove the Air
fi lters.
2. Remove the air cleaning fi lters attached
to the frames of the front panel.
Air cleaning fi lter frame
Tabs (6 places)
Tabs
(6 places)
Air Clean-
ing Filter
Air Cleaning Filter
Air cleaning fi lter frame
Filter Indicator Reset (The special setting)
Can be used if set correctly during installation.
Please consult authorized serviceman when using this function.
• It lights on when it is time to clean the air fi lters.
Clean the fi lter referring to “CLEANING AND CARE”.
After cleaning, press the MANUAL AUTO button(Fig.2
2
) for 2 seconds or less on the indoor unit.
