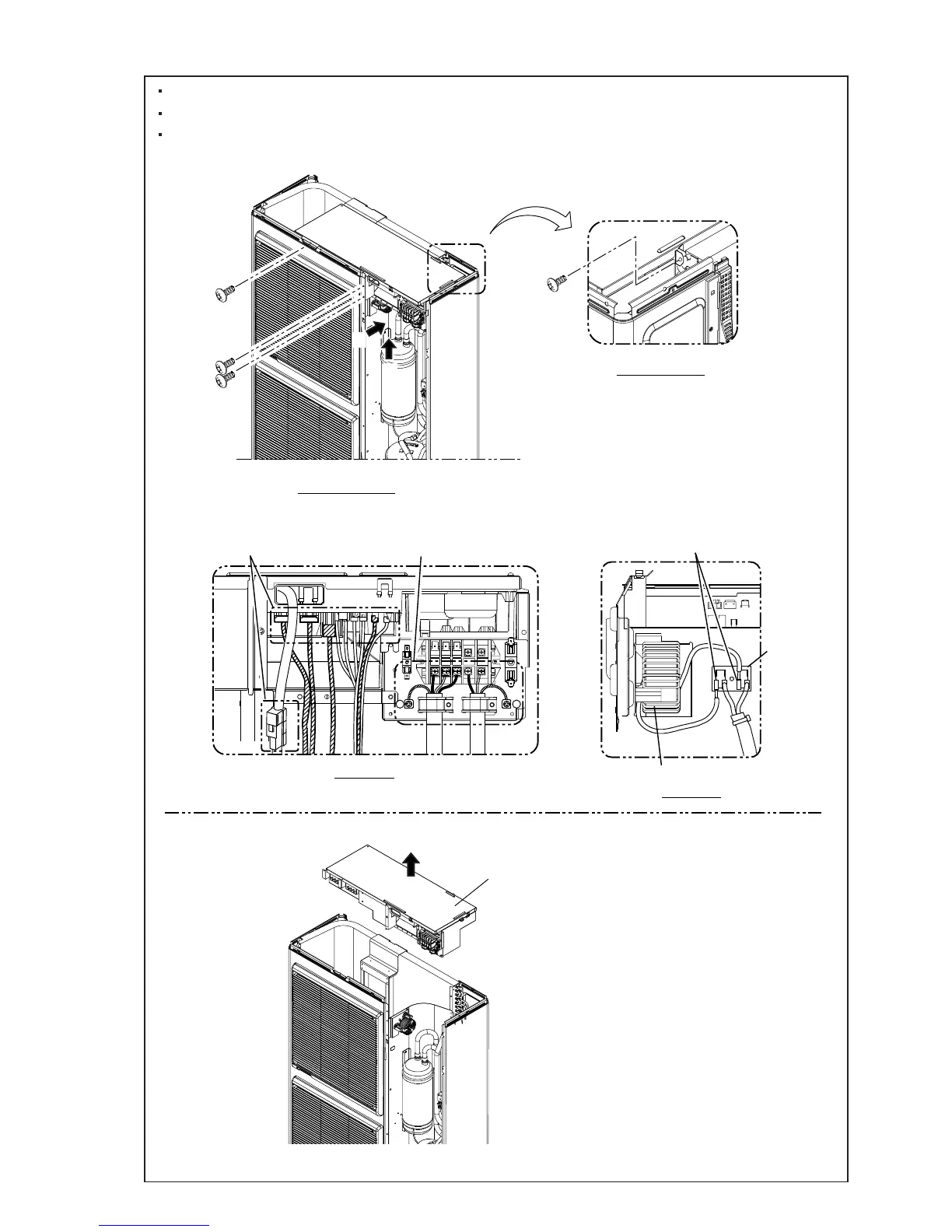

3. INVERTER BOX removal
Remove the 4 mounting screws.
Remove the connectors and cords. (Refer to VIEW -C,-D)
Remove the INVERTER BOX upward.
GG
VIEW - C
REAR VIEW
C
D
FRONT VIEW
Remove power supply &
Connection cord.
Remove the connectors
INVERTER BOX
Remove the connectors
VIEW - D
Choke coil
Terminal
10-27
