Fujitsu AOAG30LAT4 - Page 46

45
11 Motor Bracket Sub Assy
13 Propeller Fan Assy
12 Fan Motor
14 Condenser A Sub Assy
15 Separate Wall Sub Assy
17 Base Assy
9374418053
9366378020
9602843015
9374420087
9374413065
9374166084
16 Choke Coil 9703458019
-- Drain Assy
-- Drain Cap
9303029015
313166024302
Ref. Description Part number

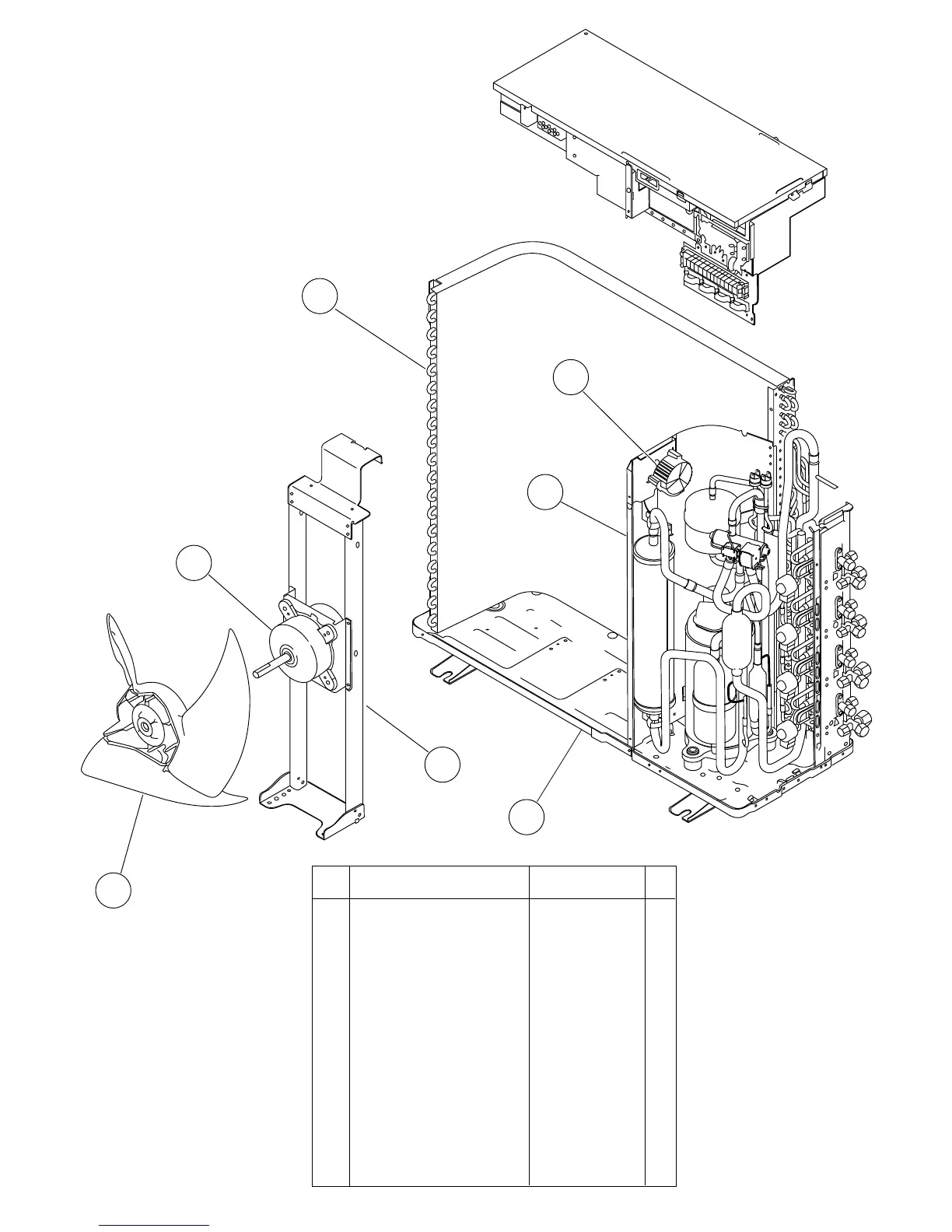

OUTDOOR UNIT
17
11
13
12
14
15
16
2011.12.09
