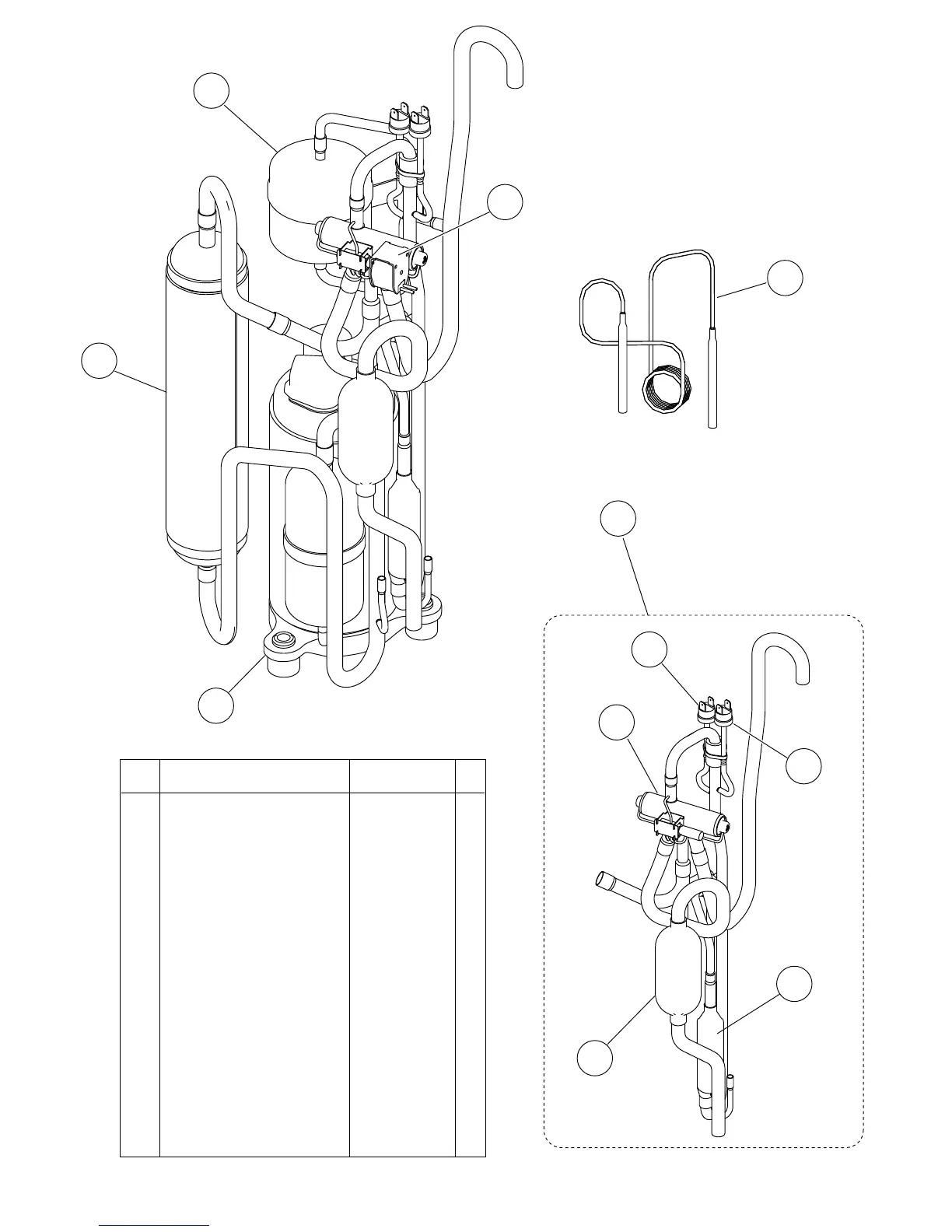

OUTDOOR UNIT
44
45
42
41
43
472011.12.21
41 Compressor Assy
46 4-way Valve Sub Assy
48 Pressure Switch
49 Pressure Switch
42 Accumulator Sub Assy
44 Receiver Tank Sub Assy
43 Capillary Assy
9377946010
9374425204
47 4-way Valve 9900164010
9900186012
9900341015
9374426072
9373426028
9372197370
Ref. Description Part number
45 Solenoid 9900165055
50 Discharge Pipe Assy 9372264225
51 Joint Pipe (Valve) E Assy 9379802000
48
47
49
50
46
51
