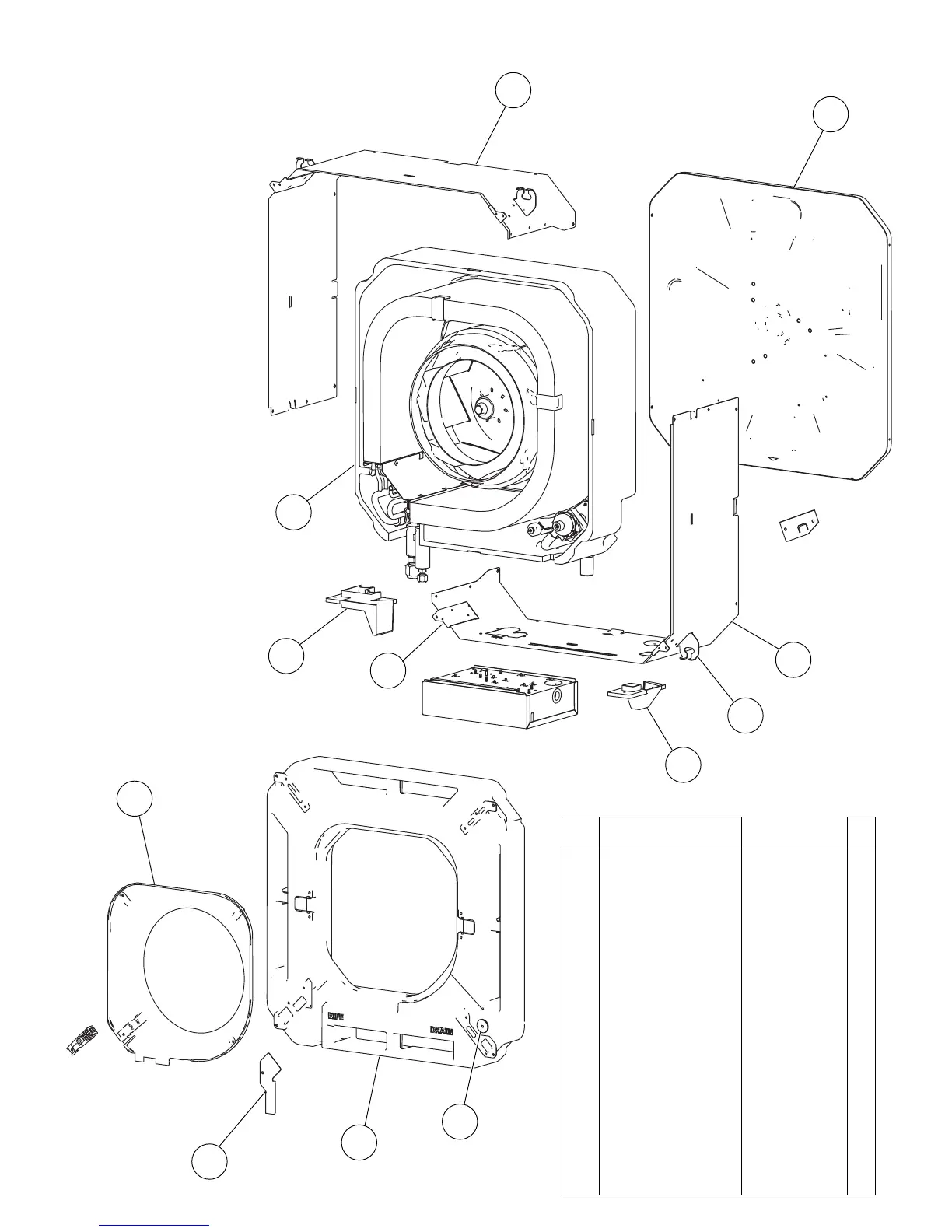

INDOOR UNIT
COMPACT CASSETTE
AUAG09LVLA
AUAG12LVLA
AUAG14LVLA
AUAG18LVLA
2 Cabinet A Assy 9375492014
1 Top Plate Assy 9375490027
3 Cabinet B 9375494018
10 Wire Holder 9375478018
9 Bell Mouse 9375503017
11 Drain Pan Sub Assy 9377765024
7 Wire Cover 9375516017
8 Pipe Cover 9375515010
4 Hook R 9375504014
5 Hook L 9375505011
6 Insulation Box Assy 9377764065
12 Drain Cap 9375502010
Ref. Description Part number
