66
2011.12.21

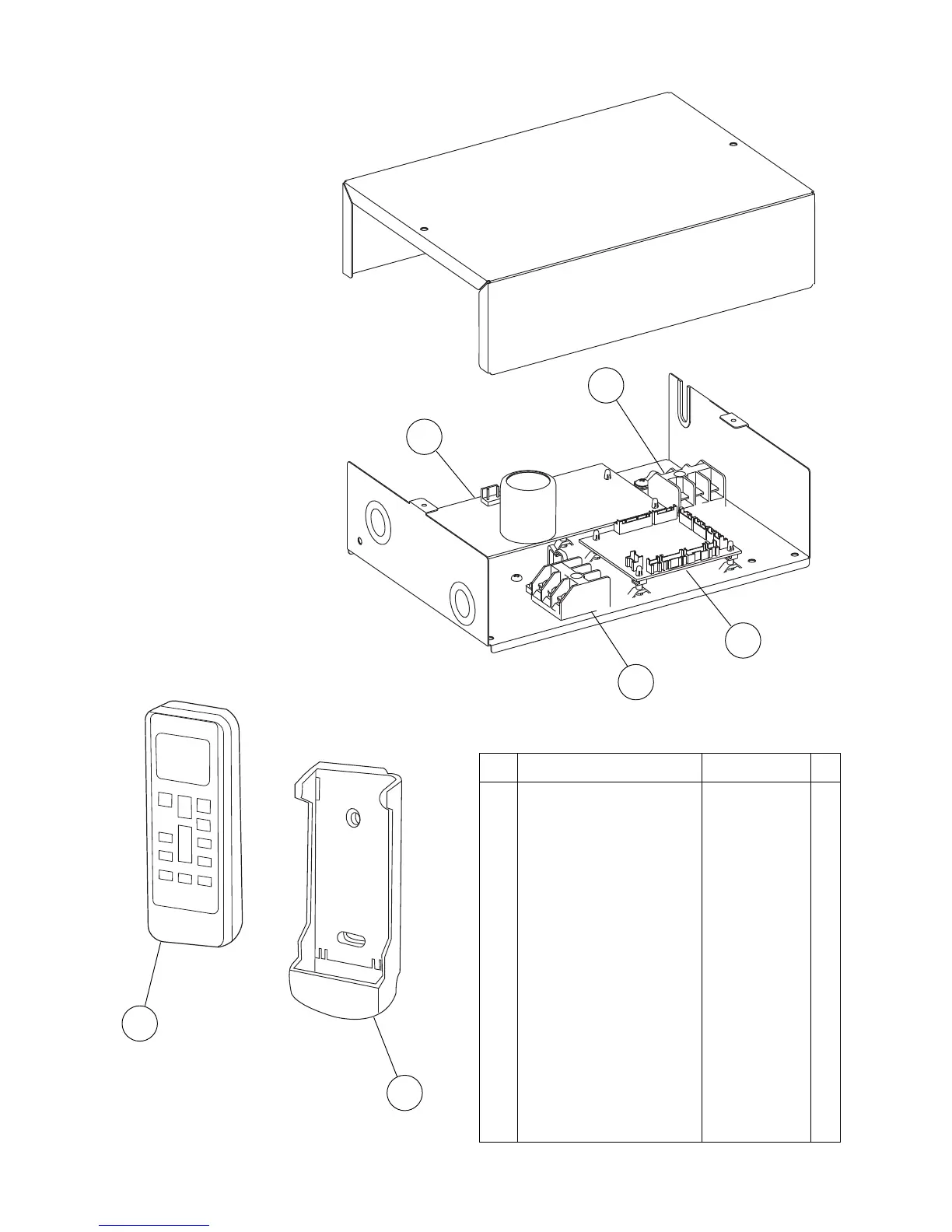

INDOOR UNIT
COMPACT CASSETTE
AUAG09LVLA
AUAG12LVLA
AUAG14LVLA
AUAG18LVLA
Control unit
31
32
36
35
33
34
31
31
31
Controller PCB Assy (09) 9707393743
Controller PCB Assy (12) 9707393750
31 Controller PCB Assy (14) 9707393767
Controller PCB Assy (18) 9707393774
32 Power Supply PCB Assy 9707398250
33 Terminal 9306489045
34 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor 9900502003
35 Remote Control 9379219006
36 Remote Control Holder 9305642045
