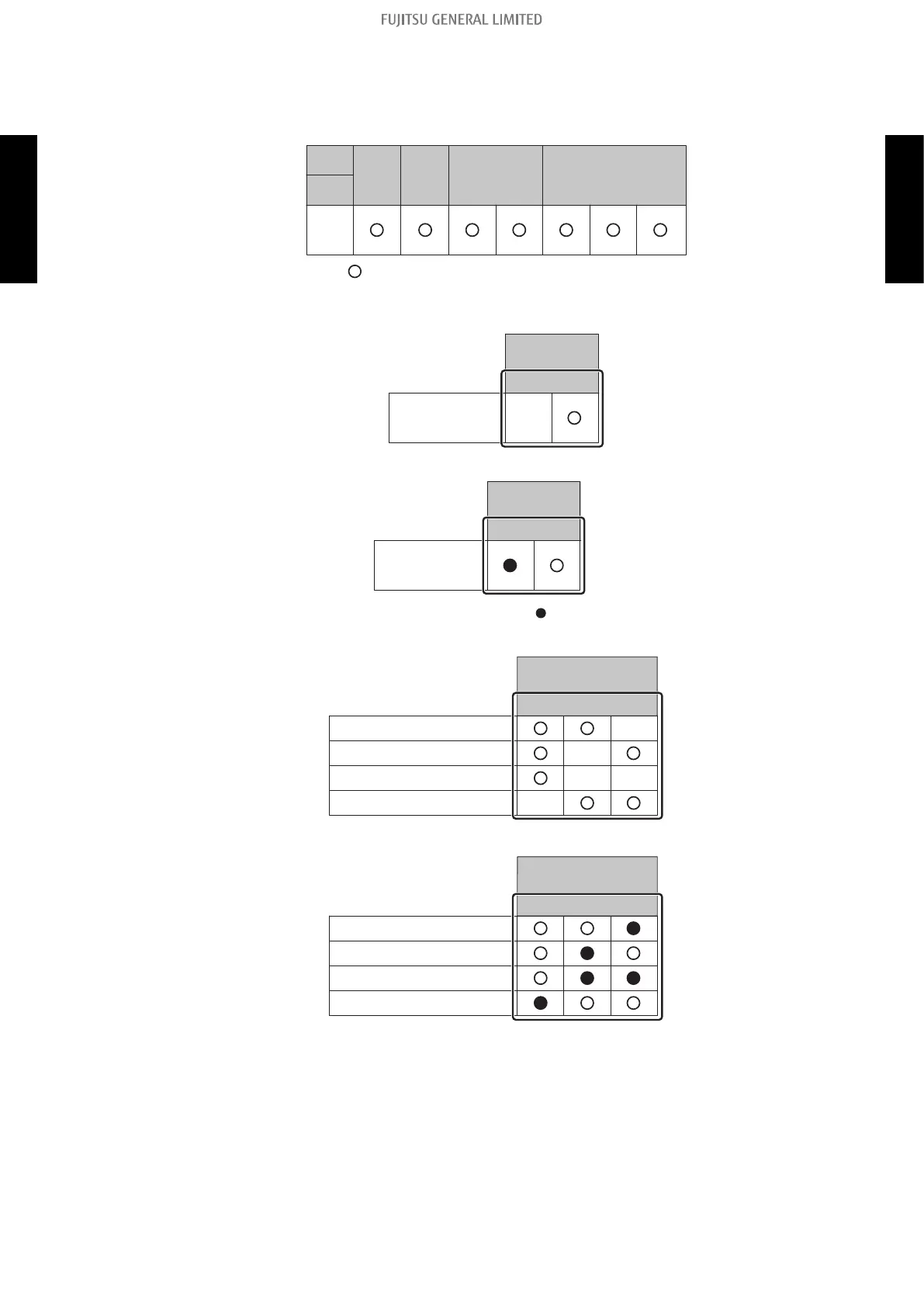

Peak cut mode
1. Press the MODE switch button (S134) for 3 seconds or more to switch to “Local setting mode”.
2. After confirming the LED lamp of POWER/MODE blinks 9 times, press the ENTER switch but-
ton (S132).
POWER
MODE
ERROR
(L1) (L2) (L3) (L4) (L5) (L6)
PUMP
DOWN
LOW NOISE PEAK CUT
Blinks
(9 times
)
Sign “ ”: Lights off
3. Press the SELECT switch button (S133), and adjust the LED lamp as shown below. Then the
LED lamp indicates the current setting.
(L2)
(L3)
LOW NOISE
Blink
PEAK CUT
MOD
E
4. Press the ENTER switch button (S132).
(L2) (L3)
LOW NOISE
PEAK CUT
MODE
Sign “ ”: Lights on
5. Press the SELECT switch button (S133), and adjust the LED lamps as shown below.
100 % of rated input ratio
75 % of rated input ratio
50 % of rated input ratio
0 % of rated input ratio
Blink
Blink Blink
Blink
Blink
PEAK CUT
(L4) (L5) (L6)
6. Press the ENTER switch button (S132) and fix it.
100 % of rated input ratio
75 % of rated input ratio
50 % of rated input ratio
0 % of rated input ratio
PEAK CUT
(L4) (L5) (L6)
7. To return to “Operating status display (Normal operation)”, press the EXIT switch button
(S131).
NOTE: When pressed number is lost during setting, you must redo the setting procedure. Return to
“Operation status display (Normal operation)” by pressing the EXIT switch button once, and
restart from the beginning of the setting procedure.
- 98 -
13-2. Local setting procedure
13. Function settings (30-54 models)
OUTDOOR UNIT AOYG24-54KBTB OUTDOOR UNIT AOYG24-54KBTB
