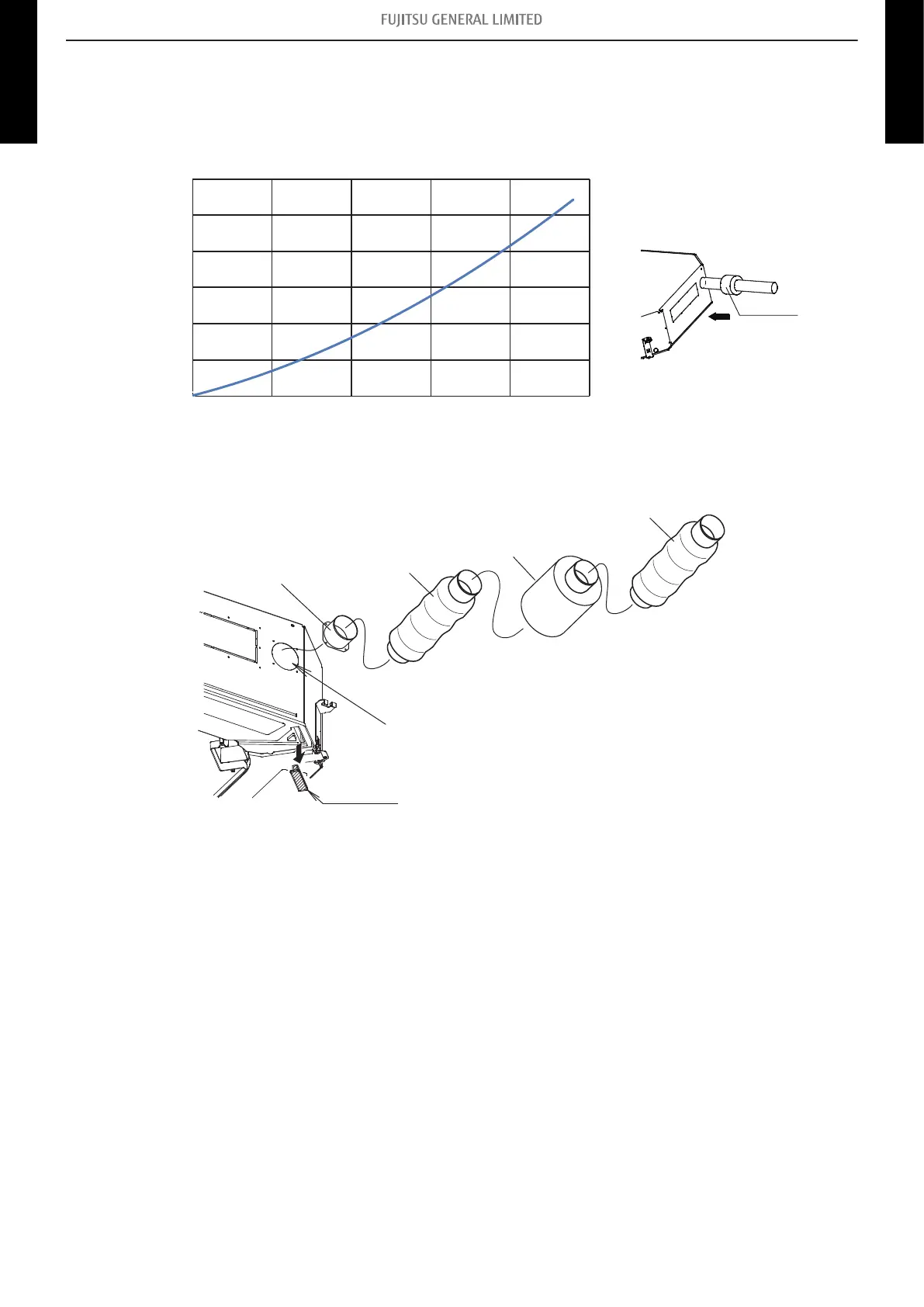

5-3. Fresh-air characteristics
¢ Airflow volume: static pressure of fresh-air intake characteris-
tics
Airflow (m
3
/h)
0
20
40
60
80
100
120
0 10 20 30 40 50
Duct static pressure (Pa)
Duct (inside
diameter: ø 95 mm)
Static pressure required
to take in fresh-air
Duct fan
¢ Installation
Duct flange *2
Flexible duct *2
Fan *2
Flexible duct *2
Insulation *1
*1: In case of fresh-air intake, remove the insulation.
*2: Locally-purchased parts
Fresh-air inlet position
For the fresh-air inlet position, refer to "Dimensions" on page 5.
- 28 -
5-3. Fresh-air characteristics
5. Fan performance
CASSETTE TYPE
AUXG24-54KRLB
CASSETTE TYPE
AUXG24-54KRLB
