Fujitsu AOG30KATA Series Design & Technical Manual

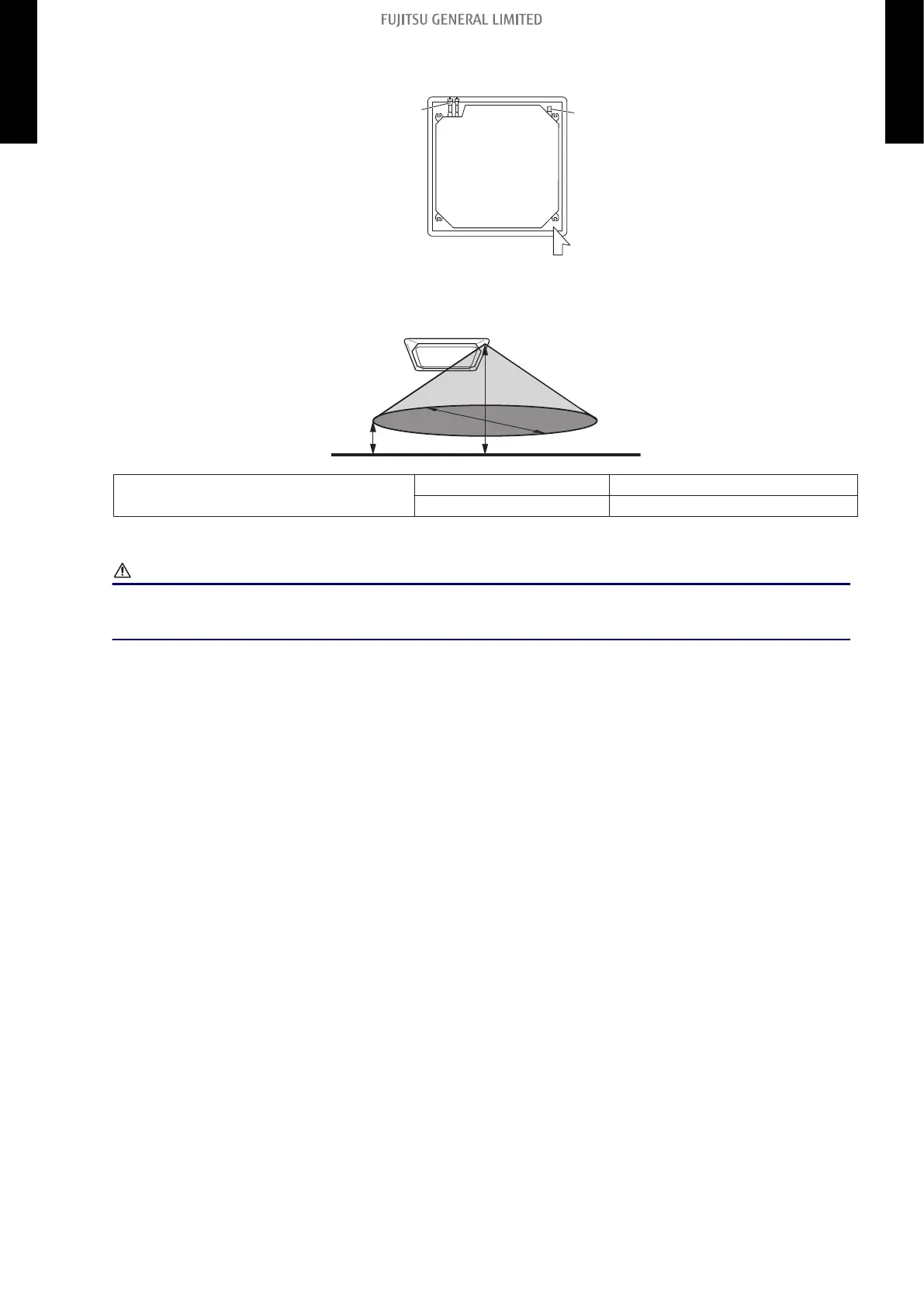

• Human sensor (Option)
Drain
pipe
Refrigerant
pipe
Human
sensor
Top view
Example of sensitivity range:
3,200
800
8,800
Unit: mm
Equal sensitivity range of temperature
Ceiling height 3,200 mm
Detecting position 800 mm from floor surface
NOTE: When the installation height gets higher, the temperature sensitivity decreases.
CAUTION
• Do not place large objects near the human sensor.
• Keep any other heating units outside the sensor’s detection area.
- 8 -
