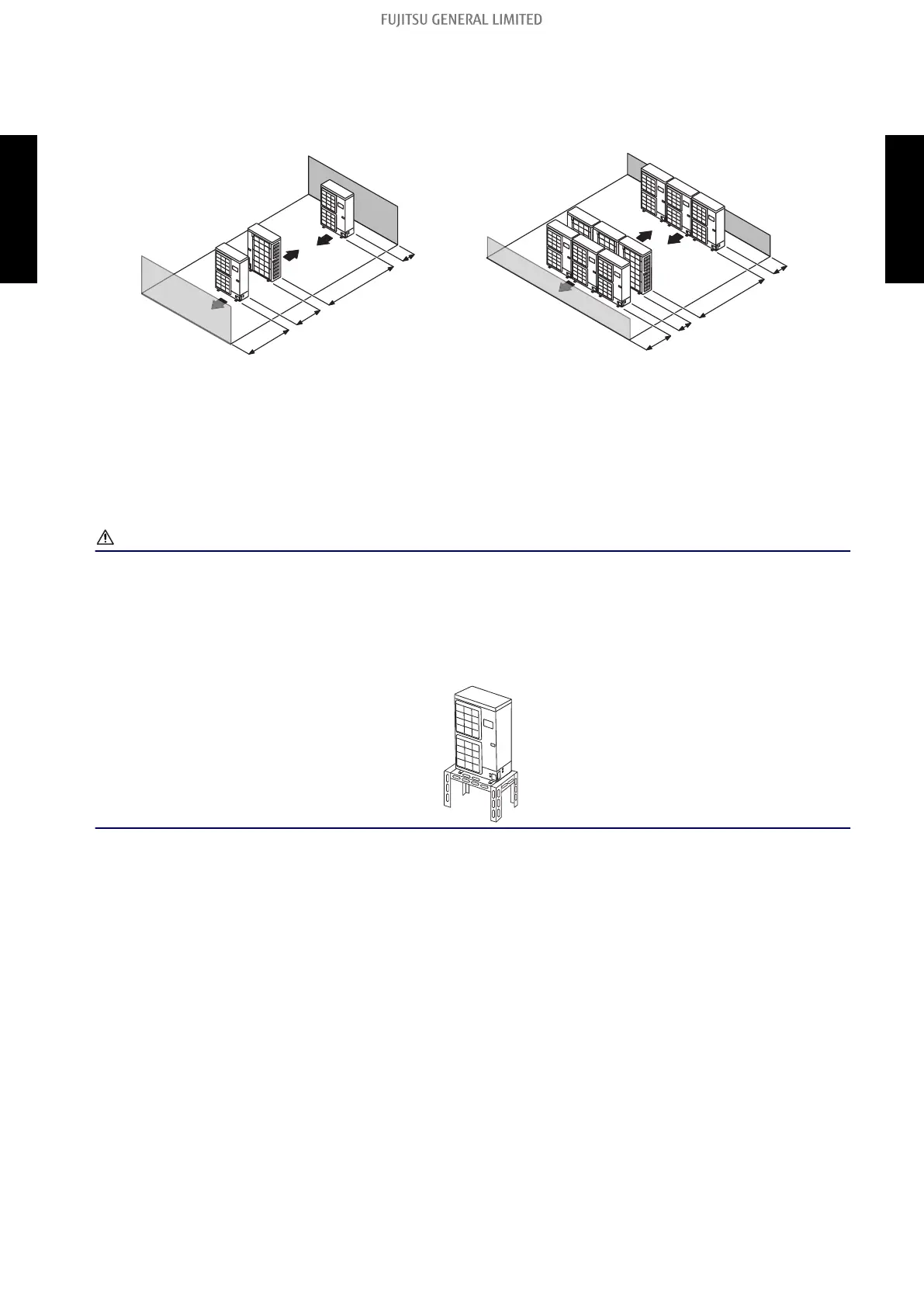

Outdoor unit installation in multi-row
Unit: in (mm)
Single parallel unit arrangement Multiple parallel unit arrangement
40 (1,000) or more
79 (2,000)
or more
24 (600) or more
6 (150)
or more
119 (3,000)
or more
24 (600) or more
60 (1,500) or more
20 (500)
or more
NOTES:
• If the space is larger than stated above, the condition will be the same as when there is no ob-
stacle.
• Height above the floor level should be 2 in (50 mm) or more.
• When installing the outdoor unit, be sure to open the front and left side to obtain better operation
efficiency.
CAUTION
• When the outdoor temperature is 32 °F (0 °C) or less, do not use the accessory drain pipe and
drain cap. If the drain pipe and drain cap are used, the drain water in the pipe may freeze in
extremely cold climate. (For reverse cycle model only.)
• In area with heavy snowfall, if the inlet and outlet of the outdoor unit is blocked with snow, it
might become difficult to get warm, and it is likely to cause product malfunction. Construct a
canopy and a pedestal, or place the unit on a high stand that is locally installed.
- 112 -
3-3. Models: AOU42RGLX and AOU48RGLX 3. Installation space
OUTDOOR UNIT
AOU12-48R
OUTDOOR UNIT
AOU12-48R
