Fujitsu AOU24RGLX Design & Technical Manual

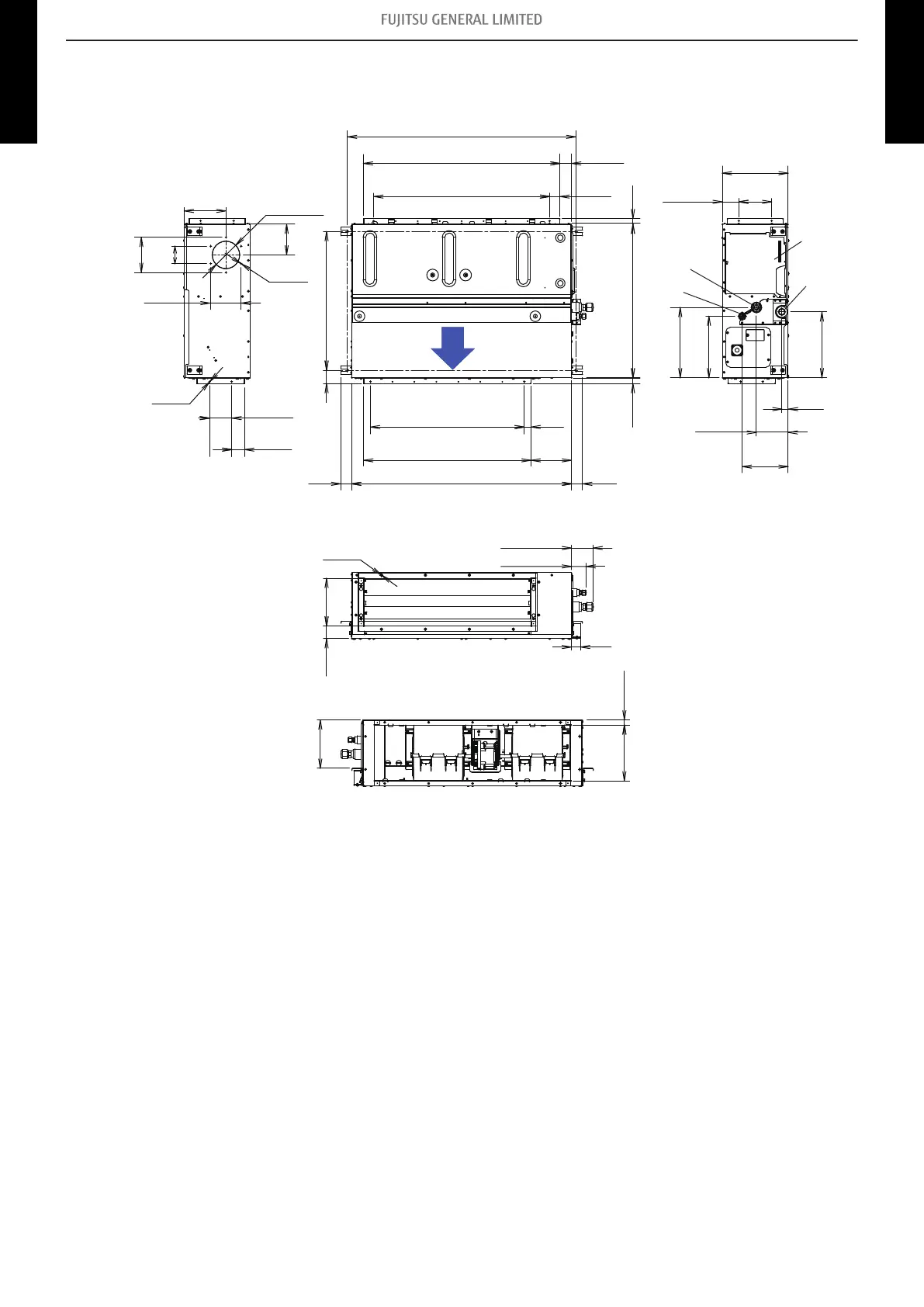

2-2. Models: ARU18RGLX, ARU24RGLX, and ARU30RGLX
Unit: in (mm)
Air
Gas pipe
Drain
port
Control
box
Liquid pipe
Side view (L)
Side view (R)
Top view
Front view
Rear view
Ø3/16
(Ø4.5)
3-15/16
(100)
2-5/16
(59)
5-1/2
(139)
6-5/16
(160)
3-1/8
(80)
7-1/2
(190)
Ø4-15/16
(Ø125)
5-1/2
(140)
Ø3/16
(Ø4)
40-15/16 (1,040)
35-1/4 (895)
2-1/16
(53)
P3-15/16 × 8 = 31-1/2
(P100 × 8 = 800)
1-7/8
(47)
1 (25)1 (25) 27-9/16 (700)
24-13/16 (631)
2-3/8 (60)
1-15/16
(49)
1-15/16
(49)
39-3/8 (1,000)
30 (762)
7-1/4
(184)
P3-15/16 × 7 = 27-9/16
(P100 × 7 = 700)
1-1/4
(31)
1-1/8
(29)
8-1/4
(210)
5-11/16
(145)
11-13/16
(300)
12-5/8
(320)
11 (280)
11-13/16
(300)
2-15/16
(75)
5-7/8
(150)
Ø3/16
(Ø4.5)
8-9/16
(217)
2-1/4
(57)
2-5/8 (66)
3-7/8 (98)
1-5/8
(41)
8-11/16
(220)
7/8 (22)
10-1/16
(255)
- 9 -
2-2. Models: ARU18RGLX, ARU24RGLX, and ARU30RGLX 2. Dimensions
DUCT TYPE ARU12-48RGLX DUCT TYPE ARU12-48RGLX
