Fujitsu AOU24RGLX Design & Technical Manual

¢
Model: AOU48RGLX
 Cooling
Octave band sound pressure level, dB:(0dB=0.0002μbar)
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency ,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB:(0dB=0.0002μbar)
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency ,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15

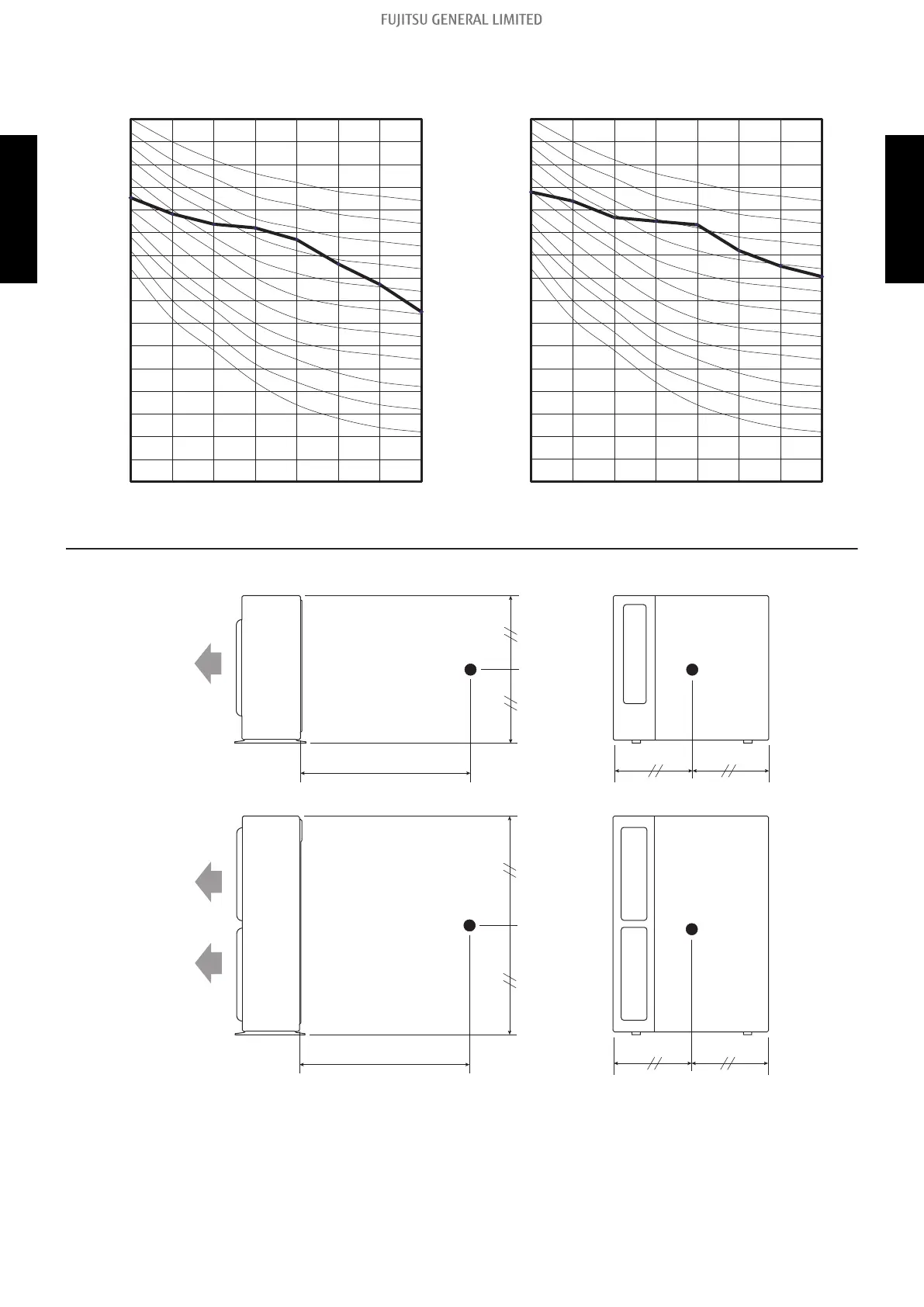

9-2. Sound level check point
40 in (1 m)
MicrophoneMicrophone
Rear
Airflow
Rear view
Side view
Airflow
MicrophoneMicrophone
Rear
Rear viewSide view
40 in (1 m)
NOTE:
Detailed shape of the actual outdoor unit might be slightly different from the one illustrated
above.
- 131 -
9-1. Noise level curve 9. Operation noise (sound pressure)
OUTDOOR UNIT AOU12-48R OUTDOOR UNIT AOU12-48R
