Fujitsu AOU24RGLX Design & Technical Manual

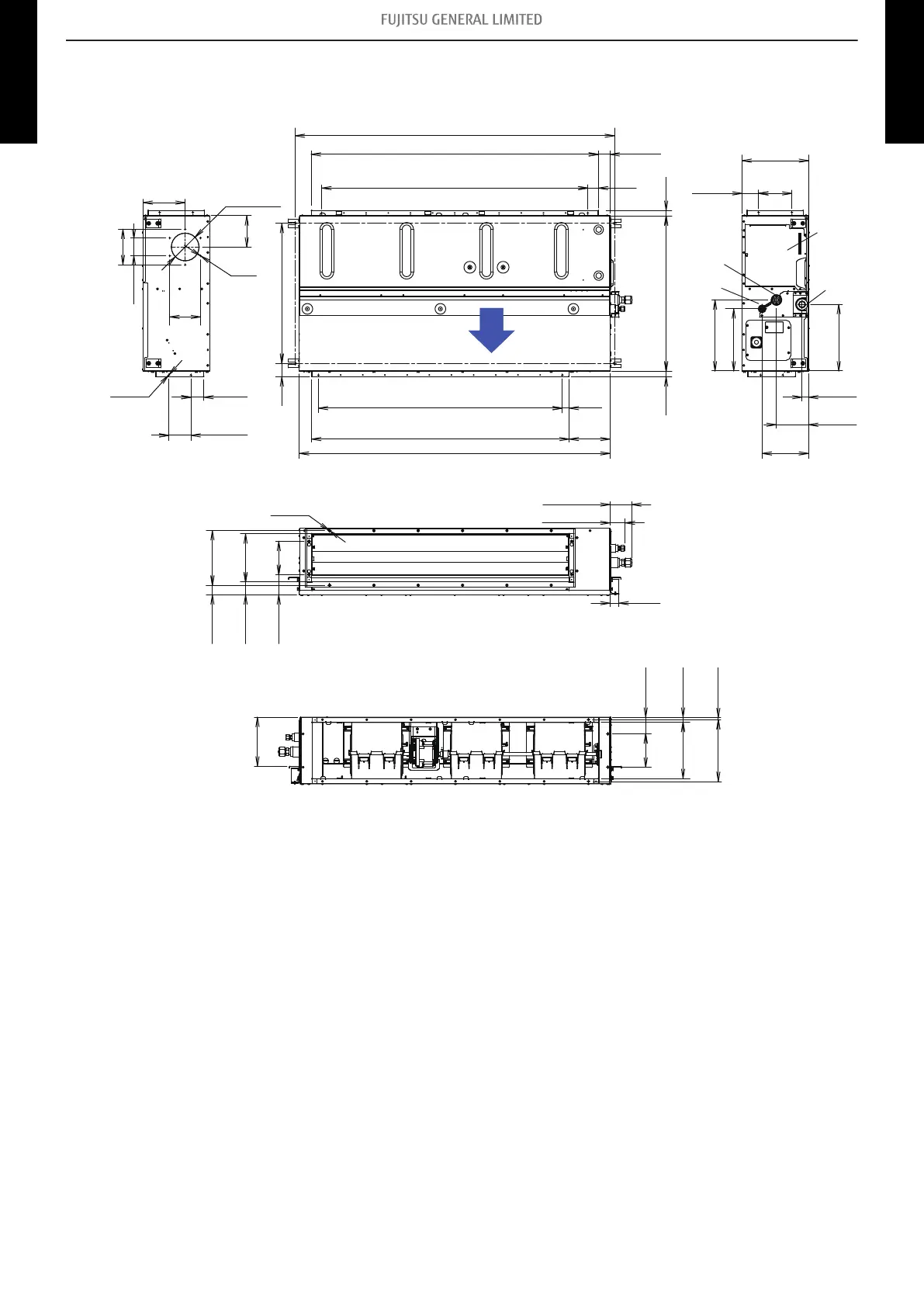

2-3. Models: ARU36RGLX, ARU42RGLX, and ARU48RGLX
Unit: in (mm)
Gas
pipe
Drain
port
Control
box
Liquid
pipe
Air
Side view (L) Top view Side view (R)
Front view
3-9/16
(91)
1-11/16
(43)
5-7/8
(150)
8-9/16
(217)
9-11/16
(246)
Rear view
56-11/16 (1,440)
51 (1,295)
2-1/16
(53)
P3-15/16 × 12 = 47-1/4
(P100 × 12 = 1,200)
1-7/8
(47)
1 (25)
1 (25)
27-9/16 (700)
24-13/16 (631)
2-3/8 (60)
45-3/4 (1,162)
55-1/8 (1,400)
7-1/4
(184)
1-1/4
(31)
P3-15/16 × 11 = 43-5/16
(P100 × 11 = 1,100)
11-13/16
(300)
2-15/16
(75)
5-7/8
(150)
12-5/8 (320)
11 (280)
11-13/16
(300)
1-1/8
(29)
8-1/4
(210)
5-11/16
(145)
Ø4-15/16
(Ø125)
5-1/2
(140)
Ø3/16
(Ø4)
7-1/2
(190)
Ø3/16
(Ø4.5)
2-5/16
(59)
6-5/16
(160)
3-1/8
(80)
5-1/2
(139)
Ø3/16
(Ø4.5)
2-1/4
(57)
2-5/8 (66)
3-7/8 (98)
1-5/8
(41)
8-11/16
(220)
7/8 (22)
10-1/16
(255)
5-7/8
(150)
2-15/16 (75)
10-15/16
(278)
3/8 (10)
3-15/16
(100)
