Fujitsu AOU30RLXB Service Manual

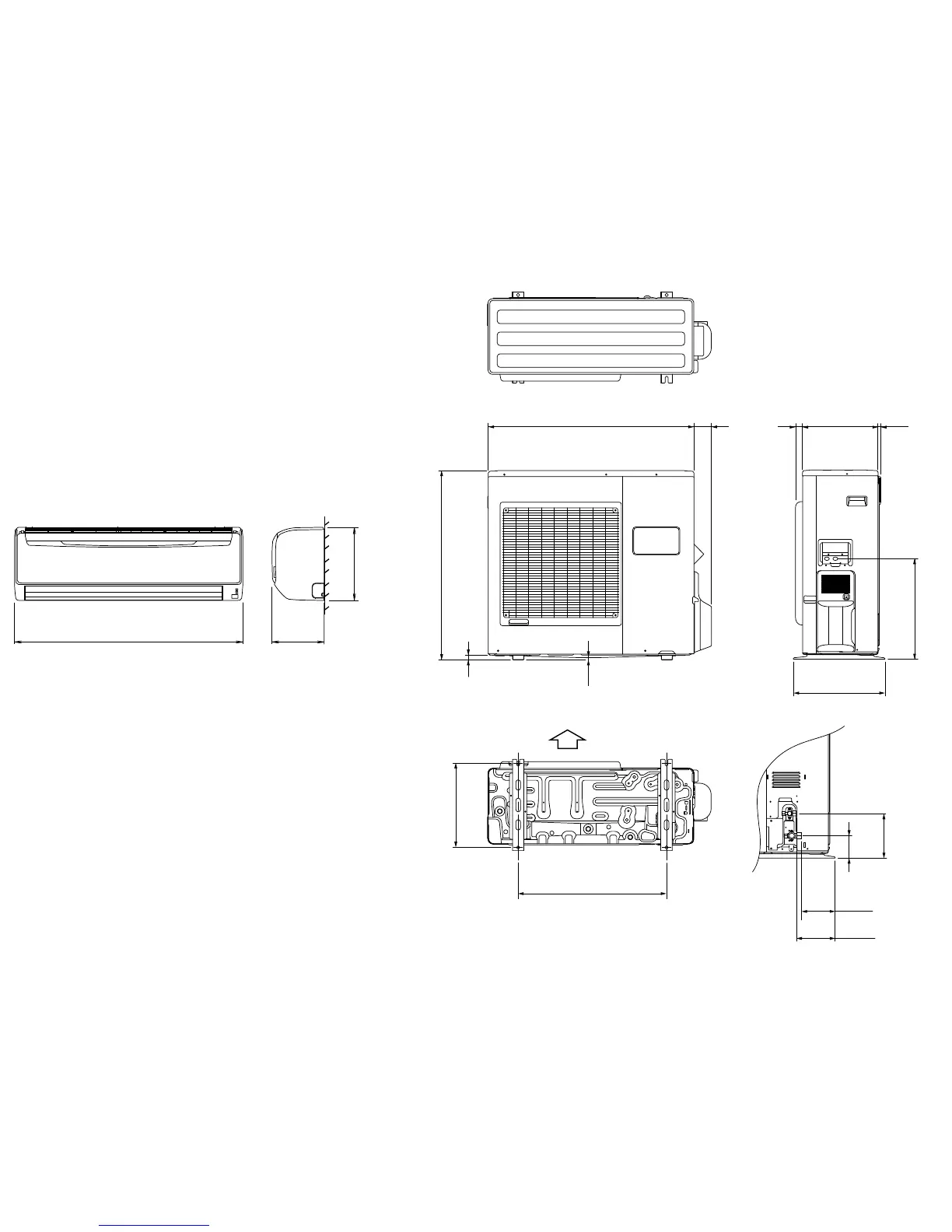

DIMENSIONS
Drain pipe diameter
Inside : 5/8 inch (16 mm)
Outside : 1-3/32 inch (28 mm)
Liquid pipe diameter : 3/8 inch (9.52 mm)
Gas pipe diameter : 5/8 inch (15.88 mm)
INDOOR UNIT
39-1/4 inch (998 mm)
9 inch
(228 mm)
12-5/8 inch
(320 mm)
2014.10.29 2
OUTDOOR UNIT
3 inch
(77 mm)
35-1/2 inch (900 mm)
32-3/4 inch (830 mm)
17-3/8 inch
(440 mm)
7/8 inch (21 mm) 3/8 inch (9 mm)
15-3/4 inch
(400 mm)
13 inch
(330 mm)
1-1/4 inch
(31 mm)
1/2 inch
(12 mm)
7-3/4 inch
(196 mm)
5-3/4 inch (147 mm)
6-3/4 inch (170 mm)
3-7/8" (99 mm)
14-5/8 inch
(370 mm)
25-5/8 inch (650 mm)
Air Flow

Fujitsu AOU30RLXB Specifications

General

Brand	Fujitsu
Model	AOU30RLXB
Category	Air Conditioner
Language	English
