Fujitsu AOU30RLXB Service Manual

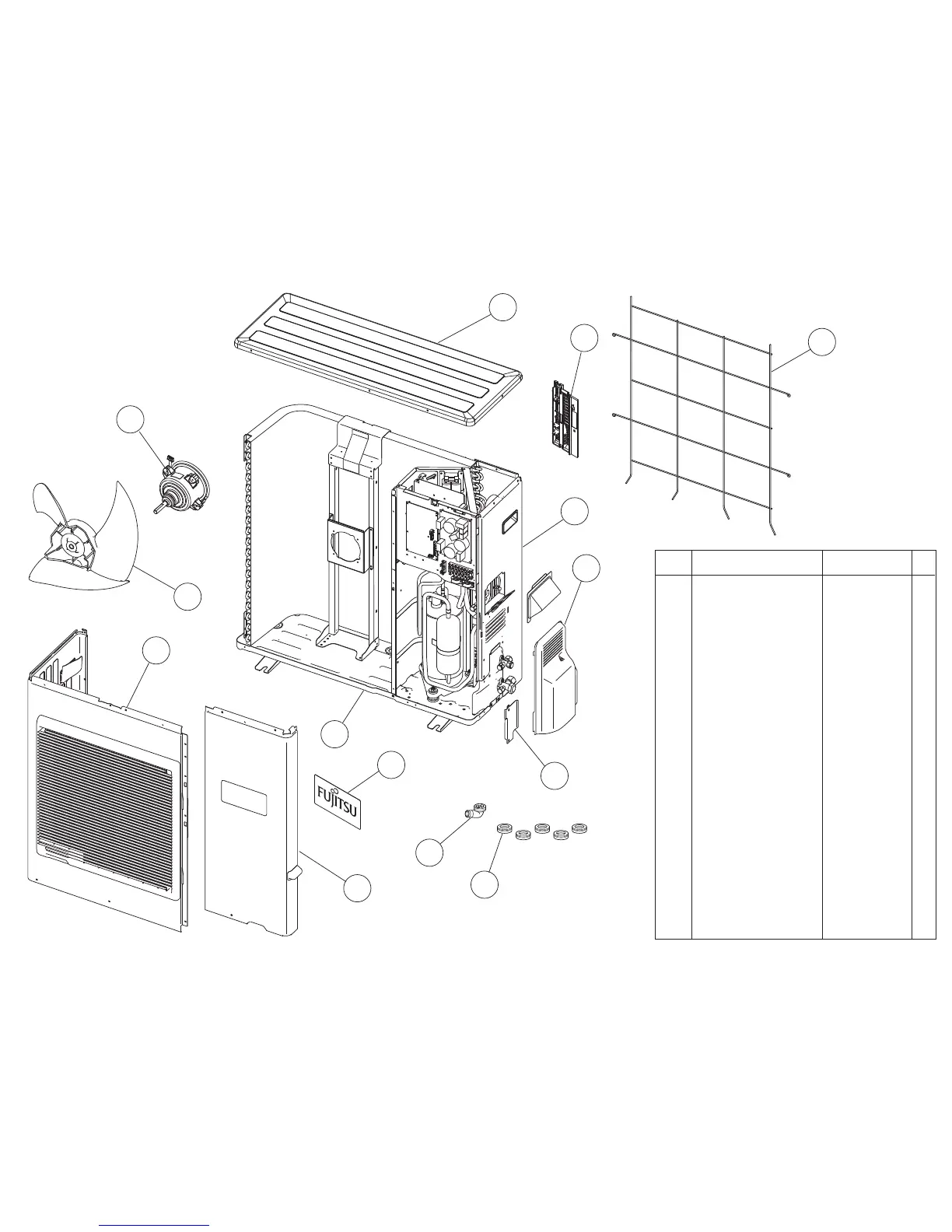

OUTDOOR UNIT
PARTS
2014.10.29 13
3 Top Panel Sub Assy 9374417032
4 Front Panel Sub Assy 9374414079
5
Service Panel Sub Assy 9374415052
7 Right Panel Sub Assy 9374416134
6 Emblem Rear 9351355005
9 Valve Cover 9374174010
8 Cover Plate 9375117016
1 Protective Net 9375381011
2 Thermo Holder 9375211011
Ref. Part numberDescription
11 Propeller Fan Assy 9366378020
10 Fan Motor 9602843015
13 Drain Assy 9303029015
12 Base Assy 9374166206
14 Drain Cap 313166024302
7
2
9
8
6
12
5
4
3
13
14
11
10
1

Fujitsu AOU30RLXB Specifications

General

Brand	Fujitsu
Model	AOU30RLXB
Category	Air Conditioner
Language	English
