WALL MOUNTED ASU30RLE

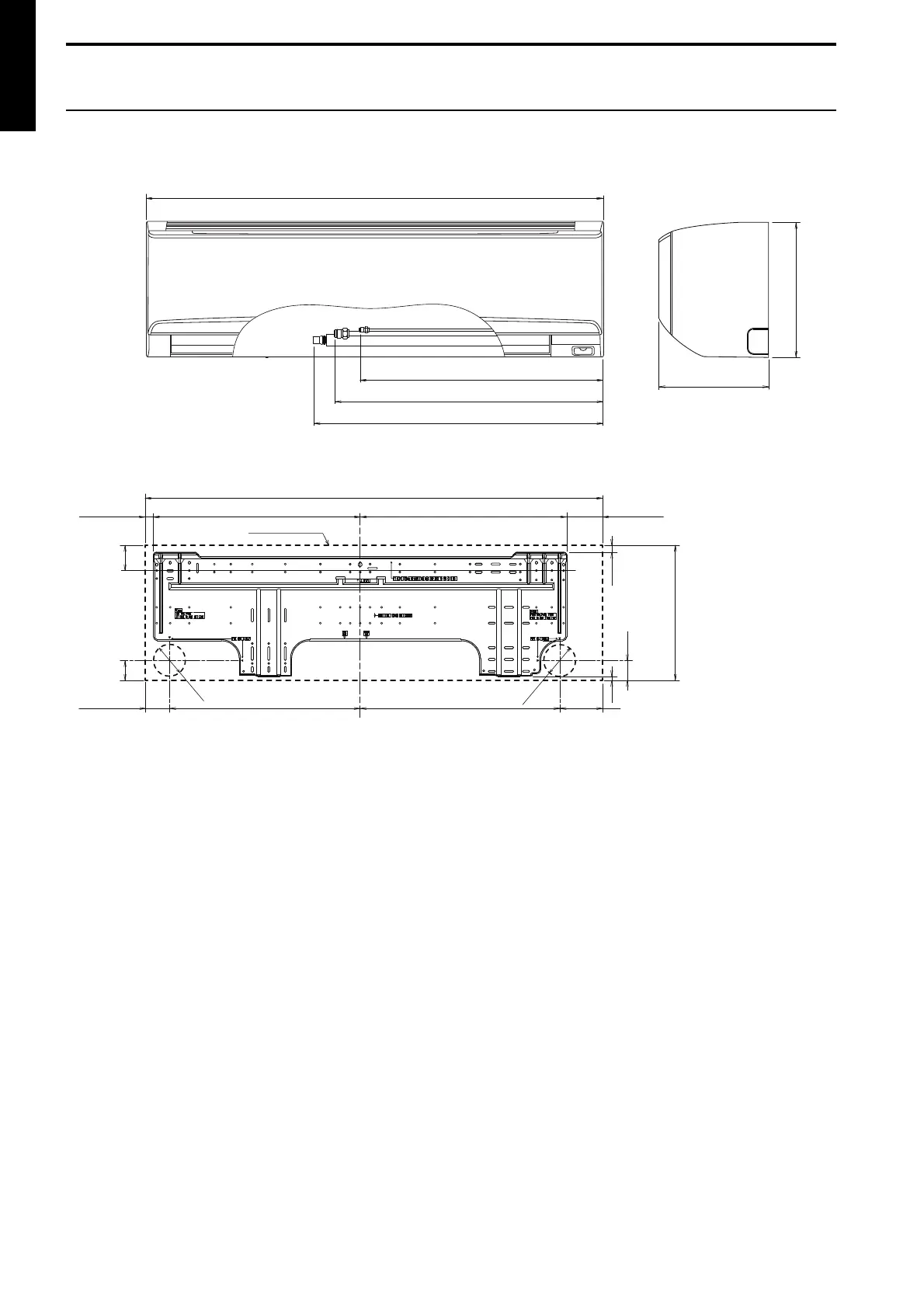

4. Dimensions
4-1. Model: ASU30RLE
Unit: in (mm)
Outline of unit
20-1/2 (520)
3-9/16 (90)
13/16 (21)
2-1/2 (64)
18-7/8 (479)2-6/16 (61)
4-1/4
(108)19-6/8 (502)
20-1/2 (520)
1-15/16 (50)
1-15/16
(50)
7/16 (11)
13-6/16 (340)
ø80
ø80
13-6/16
(340)
11 (280)
10/16
(16)
45-1/4 (1150)
24 (609)
26-7/16 (672)
28-9/16 (725)
45-1/4 (1150)
