En-11

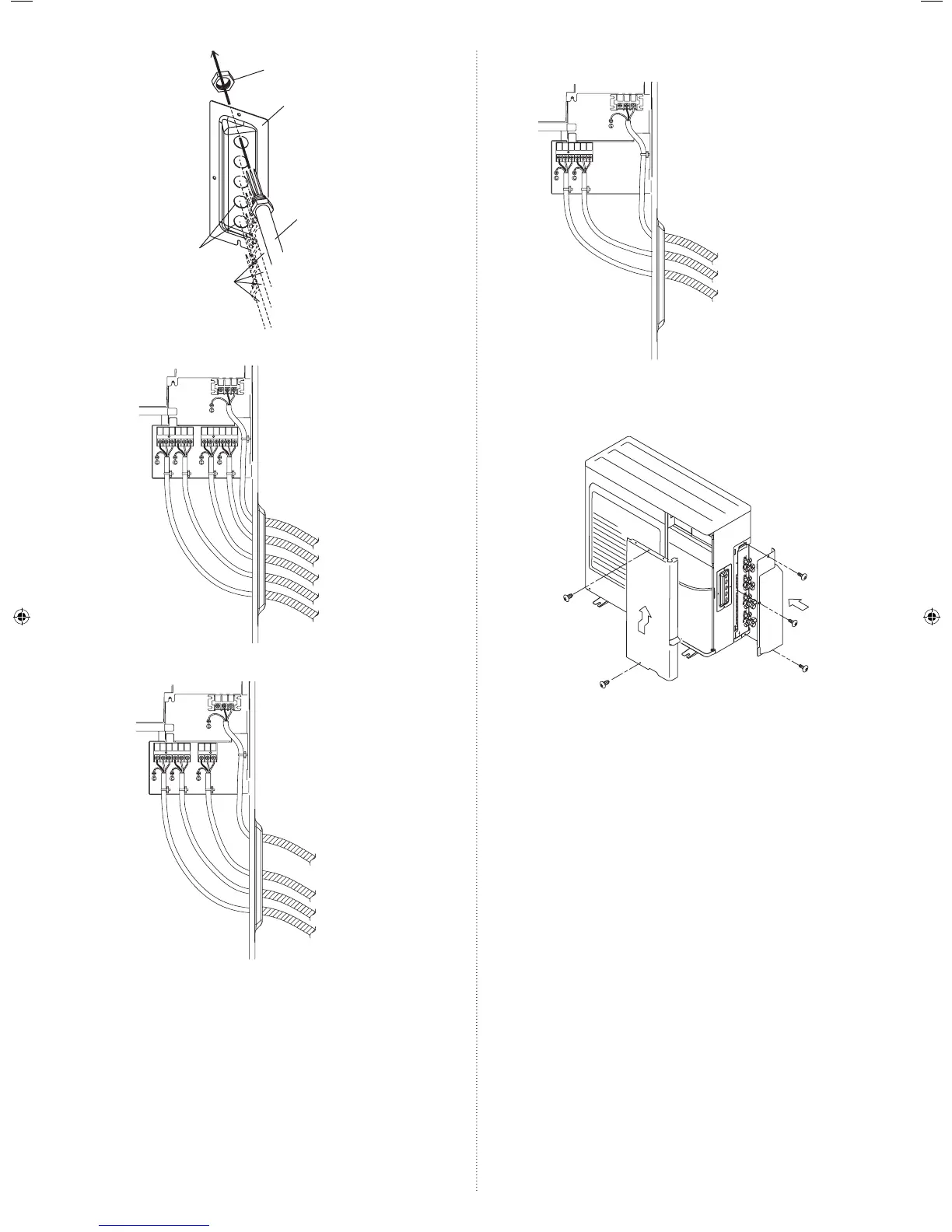

Look nut
Conduit plate
Power supply cable
Knockout hole
Connection cable
36 type
Power supply cable
UNIT D connection cable
UNIT C connection cable
UNIT B connection cable
UNIT A connection cable
24 type
Power supply cable
UNIT C connection cable
UNIT B connection cable
UNIT A connection cable
18 type
Power supply cable
UNIT B connection cable
UNIT A connection cable
(5) Be sure to seal the holes when applying the putty.
Place the cables side by side. (Do not overlap the cables.)
(6) Put the service cover and valve cover back after completion of the work.
