En-7

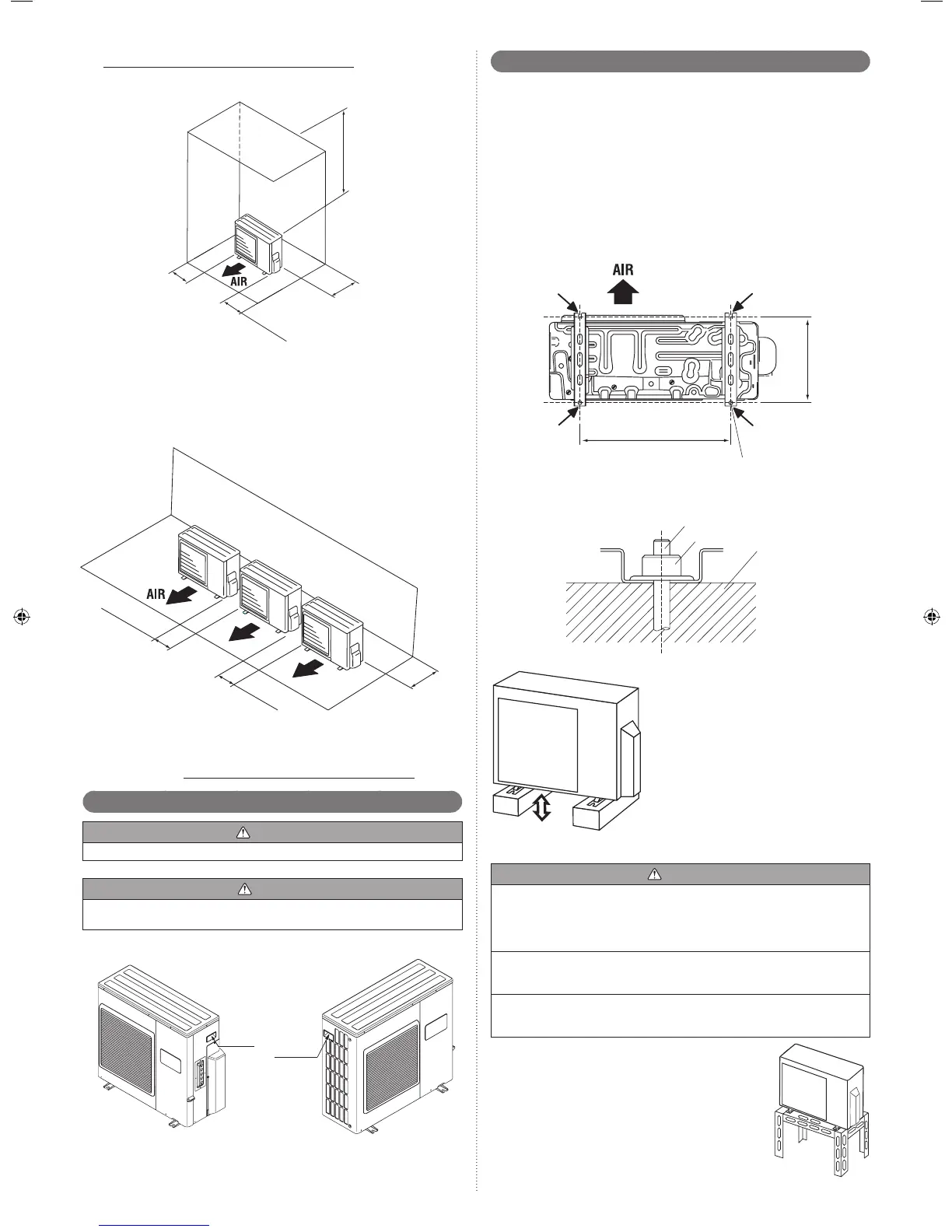

When an obstruction is present also in the upward area
• When there are obstacles at the back, side(s), and top
.
4 in.-12 in.*
(100-300 mm)
10 in. (250 mm)
or more
(Service space)
12 in. (300 mm)
or more
24 in.-40 in.*
(600-1000 mm)
* If the space is larger than that is stated, the condition will be the same as that there
are no obstacles.
• When there are obstacles at the back side with the installation of more than one unit.
10 in. (250 mm)
or more
10 in. (250 mm)
or more
12 in. (300 mm)
or more
• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the
following example when an obstruction is present also in the upward area.
3. 4. Transportation of the unit
WARNING
Do not touch the ns. Otherwise, personal injury could result.
CAUTION
When carrying the unit, hold the handles on the right and left sides and be careful. If
the outdoor unit is carried from the bottom, hands or ngers may be pinched.
• Be sure to hold the handles on the sides of the unit. Otherwise, holding the suction
grille on the sides of the unit may cause deformation.
Handle
Handle
3. 5. Installation of the unit
• Install 4 anchor bolts at the locations indicated with arrows in the gure.
• To reduce vibration, do not install the unit directly on the ground. Install it on a secure
base (such as concrete blocks).
• The foundation shall support the legs of the unit and have a width of 1 in. (50 mm) or
more.
• Depending on the installation conditions, the outdoor unit may spread its vibration
during operation, which may cause noise and vibration. Therefore, attach damping
materials (such as damping pads) to the outdoor unit during installation.
• Install the foundation, making sure that there is enough space for installing the
connection pipes.
• Secure the unit to a solid block using foundation bolts. (Use 4 sets of commercially
available M10 bolts, nuts, and washers.)
• The bolts should protrude 1 in. (20 mm) (Refer to the gure.)
• If overturning prevention is required, purchase the necessary commercially available
items.
[Unit: in. (mm)]
25-9/16
(650)
14-9/16
(370)
Bottom side
4-ø1/2 (ø12) hole
Fix securely with bolts on a solid block. (Use 4 sets of commercially available M10
bolt, nut and washer.)
Bolt
Nut
Block
• Do not install directly on the ground, this
may result in equipment failure.
2” (5 cm) or over
CAUTION
In areas with heavy snowfall , where intake and outlet of the outdoor unit can become
blocked by snow. It is recommended that unit be installed under a canopy or elevated
on a high stand.
Failure to do so will result in poor heating performance and/or premature failure of
equipment.
In places where the outdoor temperature drops to 32 °F (0 °C) or lower, the drain
water may freeze and may stop up the drain or cause other outdoor unit trouble.
Therefore take measures so that the drain water will not freeze and clog the drain.
Please set up the outdoor unit in a high place and please do not arrange the frame of
installed stand under the drain port, because the water dropped from the drain port
repeats freezing and accumulating, and may block the drain port.
9374747153_IM.indb 7 2014/12/19 14:57:17
