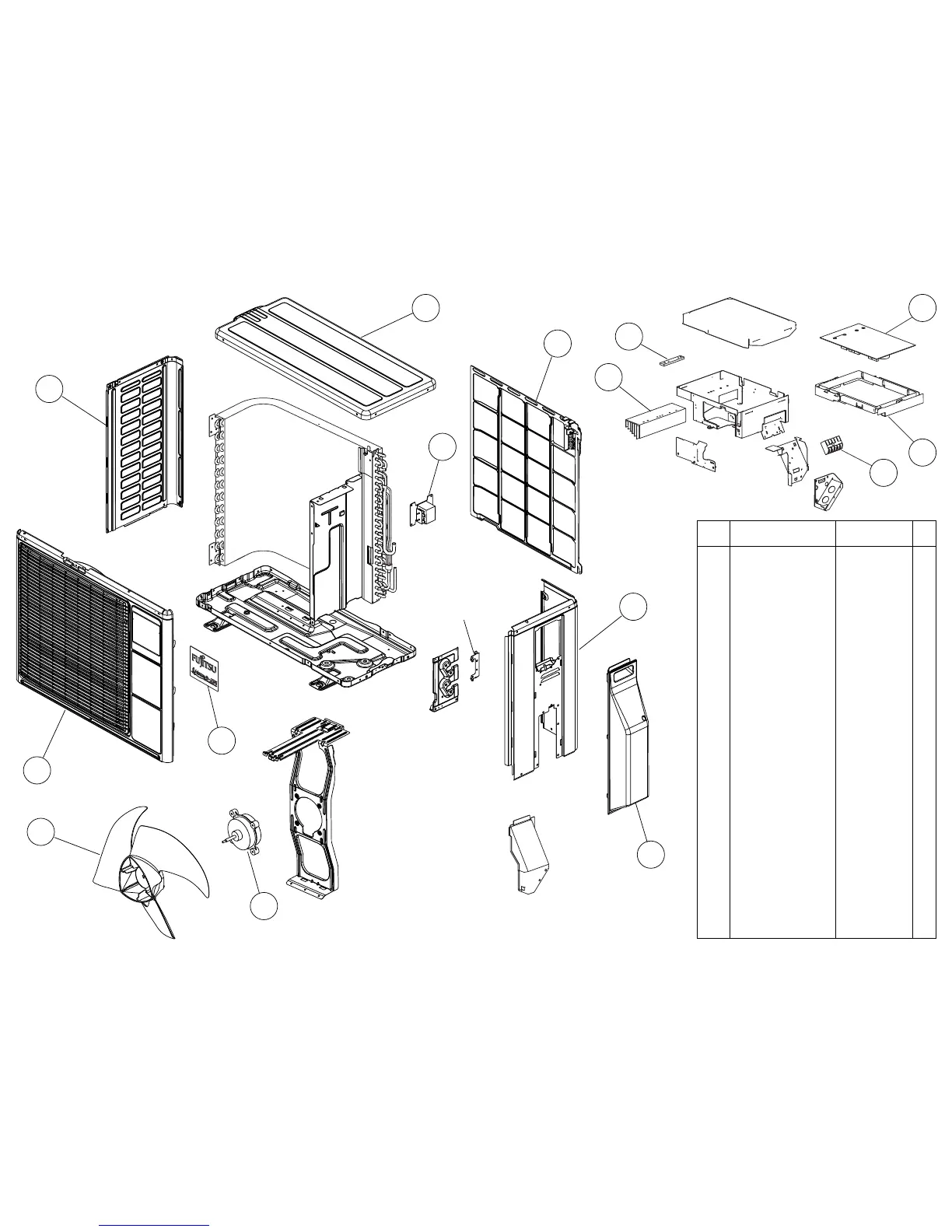

PARTS
OUTDOOR UNIT
AOU9RLFW1
2013.11.14 20
2 Top Panel Assy 9317939034
3 Front Panel Assy 9317789035
1 Protective Net 9331262019
5
6
Cabinet Left Assy 9317813006
4 Emblem 9332356014
Switch Cover 9313940027
Valve
bracket
7 Cabinet Right Assy 9331336079
Valve bracket
cover
Motor bracket
9 Propeller Fan 9309909014
10 Reactor Assy 9900583002
8 Fan Motor 9603074012
Ref. Description Part number
3
4
5
10
9
8
1
6
7
2
15
14
12
11
13
Terminal
bracket
13 Terminal 5P 9703874055
Inverter
Case Cover
Terminal cover assy
Bracket conduit
Main PCB
Sealed panel
11
Inverter case
assy
9709215074
12 PCB Holder 9331261012
15 Heatsink B 9314090011
14 Heatsink A 9331263016
To Next Page
