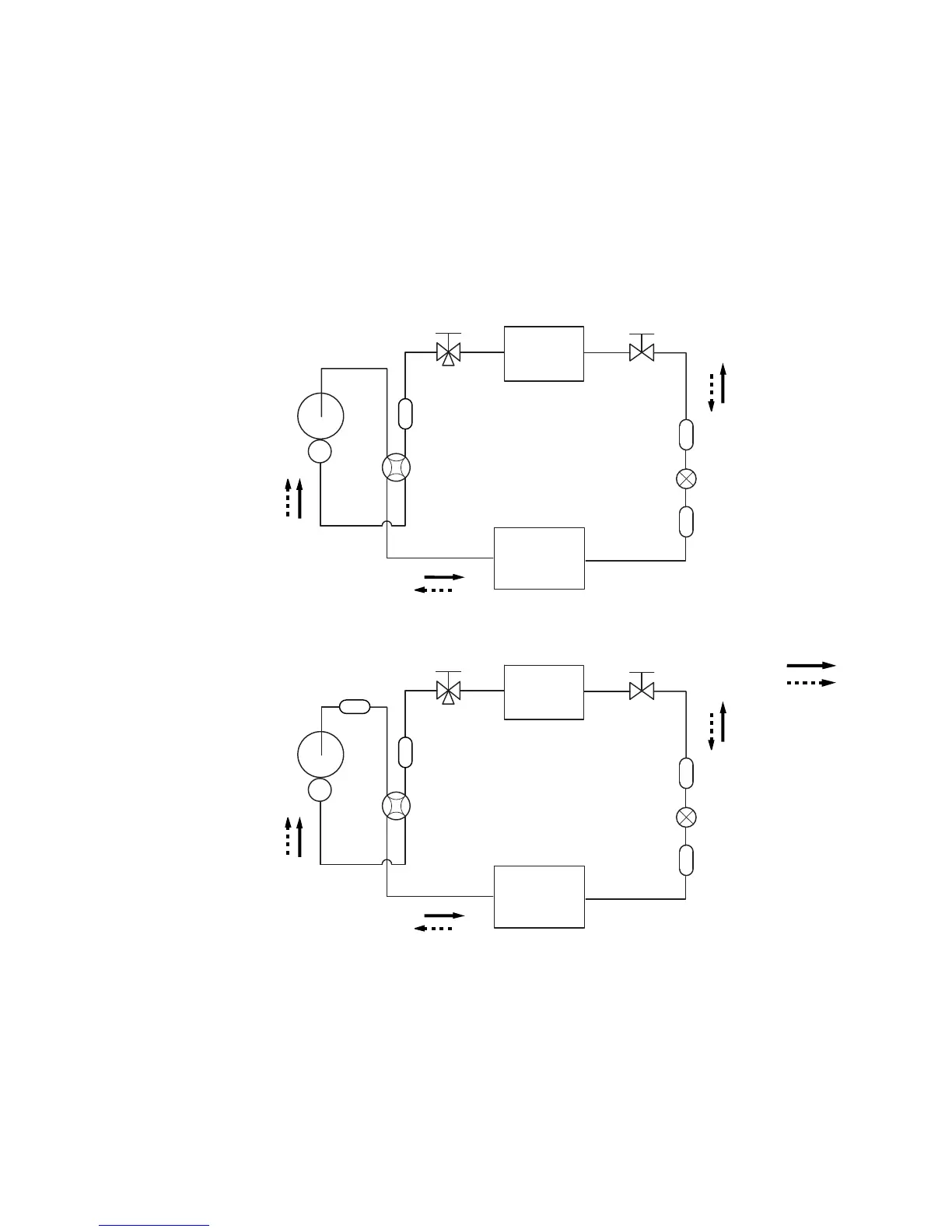

REFRIGERANT
SYSTEM DIAGRAM
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
4-Way valve
Expansion valve
Refrigerant direction
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
ASU9RLF1
AOU9RLFW1
ASU12RLF1
AOU12RLFW1
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
Muffler
4-Way valve
Expansion valve
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
2013.11.04
3
3
5
Table of Contents
Table of Contents
1
Wall Mounted Type
1
Indoor Unit
1
Outdoor Unit
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
7
Outdoor Pcb Circuit Diagram
11
Outdoor Unit Aou9Rlfw1 Circuit Diagram
12
Error Detection
15
Parts (Indoor Unit)
17
INDOOR UNIT Casing Assy
20
Parts (Outdoor Unit)
21
Outdoor Unit Aou12Rlfw1
23
Indoor Unit/Optional Parts
25
Accessories
25
