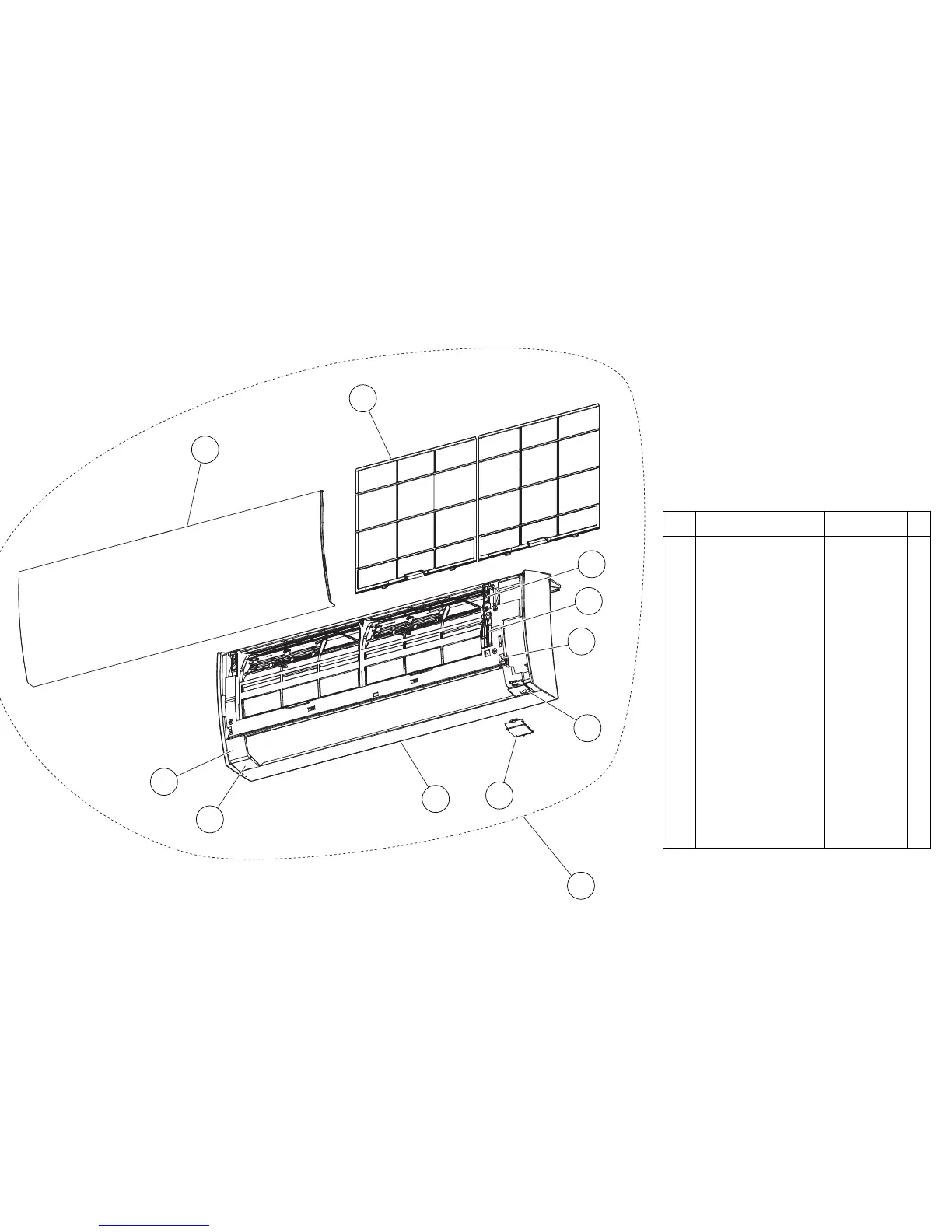

INDOOR UNIT
Front panel
2012.11.19 14
15
Air Filter
9318910001
12
Front Panel 9318876000
16 Display Plate Holder L 9318894004
14
Front Panel Cover U
17 9318895001
18 Display Plate R 9318893007
Display Plate Holder R
19 9318900002
20 Grille Stay 9318899016
21 Grille Clamper B 9316951006
Arm Cover
9318883008
13 Intake Grille Assy 9319351155
11 Front Panel Total Assy 9319348001
Ref. Description Part number
