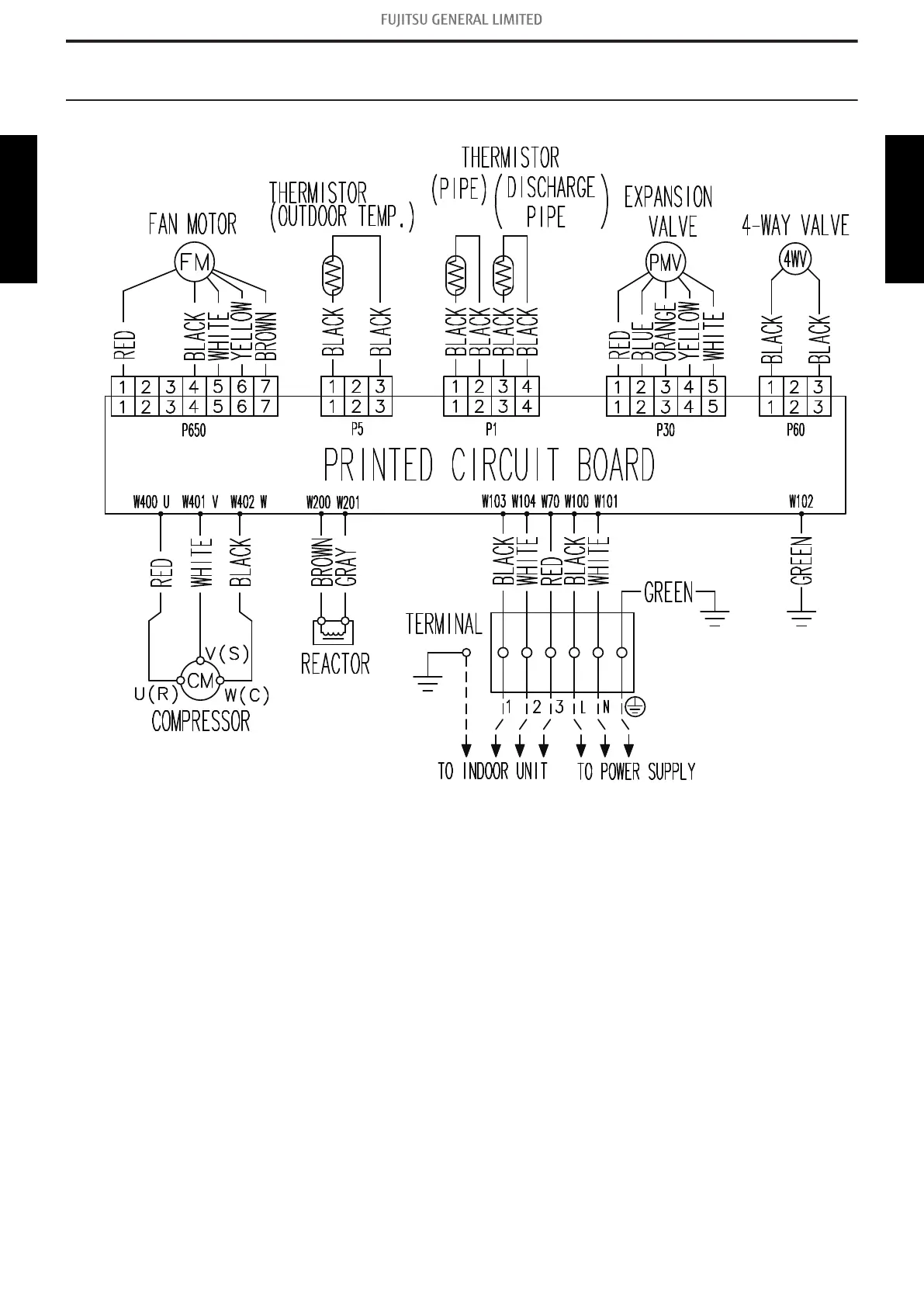

5. Wiring diagrams
5-1. Models: AOYG07KPCA, AOYG09KPCA, and AOYG12KPCA
- 32 -
5-1. Models: AOYG07KPCA, AOYG09KPCA, and AOYG12KPCA 5. Wiring diagrams
OUTDOOR UNIT
AOYG07-12KPCA
OUTDOOR UNIT
AOYG07-12KPCA
