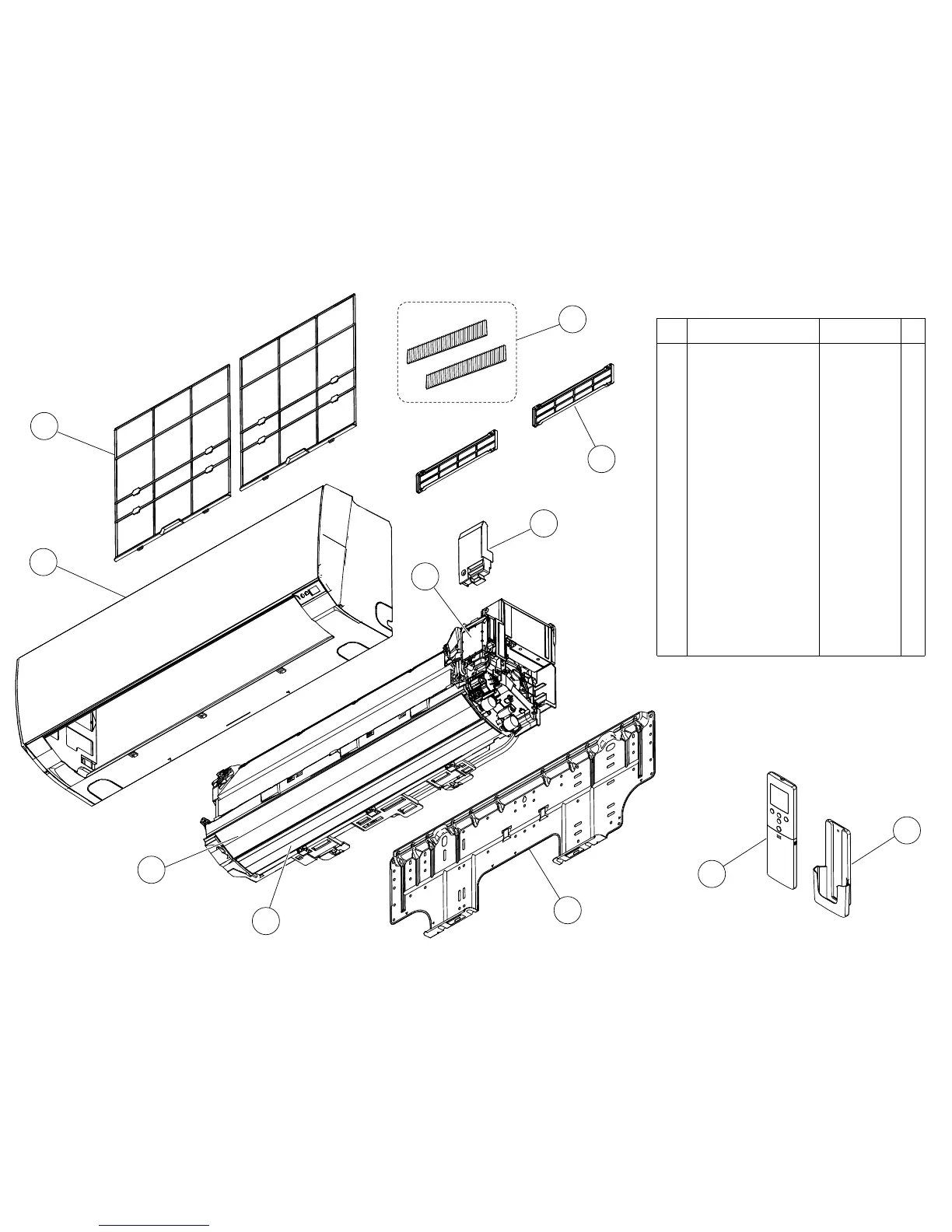

PARTS
8
5
4
10
6
11
7
3
9
1
2
INDOOR UNIT
2013.02.27 12
6
8
10
7
9
Front Panel Sub Assy 9332994001
3 Bracket Panel 9332882018
4
Wire Cover 9332894004
Wire Shield 9332906004
Electric Filter Holder 9332911008
5 Air Clean Filter Assy 9317250009
1 Remote Control 9319208008
2 Remote Control Holder 9318912005
Ref. Description Part number
Air Filter 9332875003
Louver 9332900002
11 Diffuser Assy 9332998009
