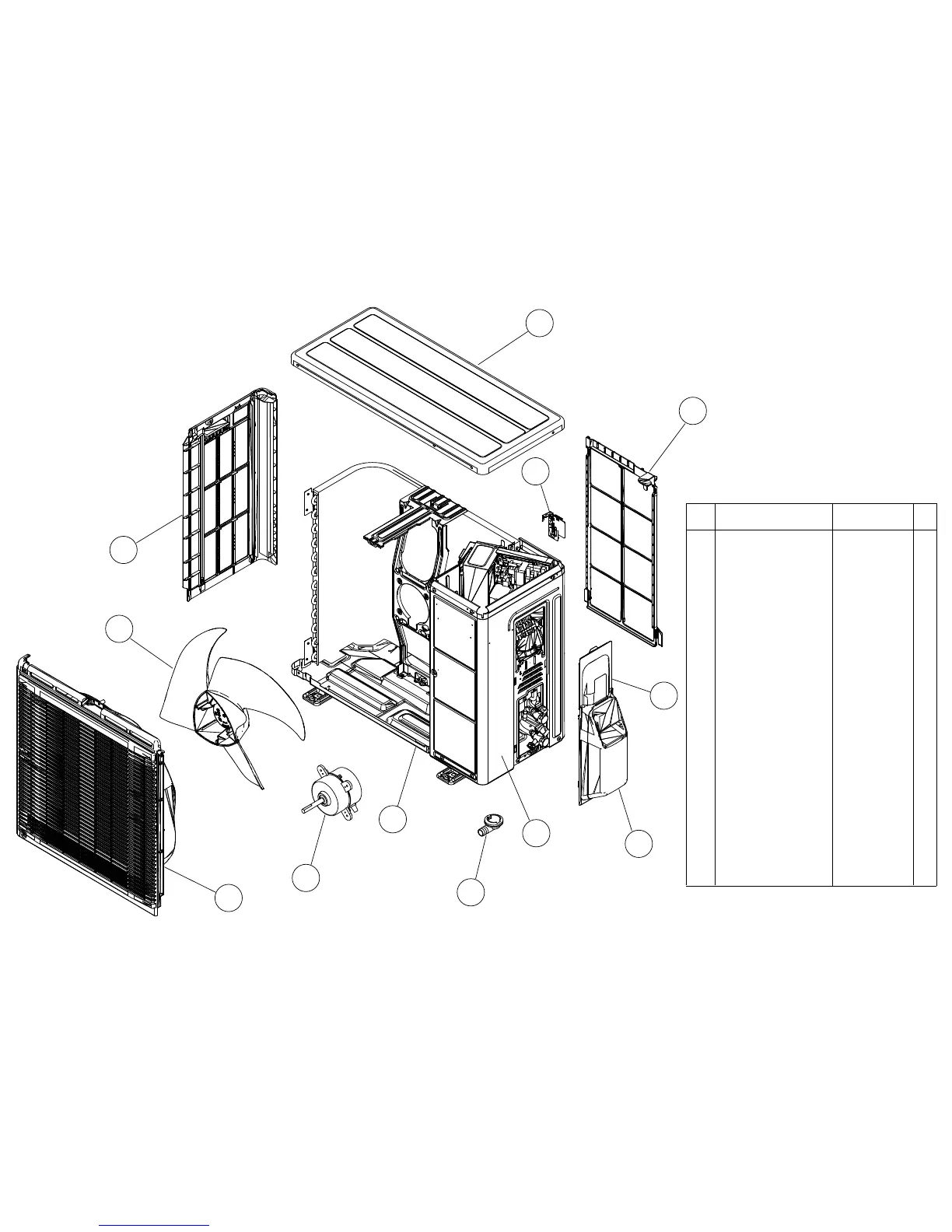

PARTS
OUTDOOR UNIT
2013.02.28 16
4 Front Panel Assy 9332965001
3 Top Panel Assy 9332977004
1 Protective Net 9332855005
2 Thermistor Holder 9332505009
5 Cabinet Left Assy 9332962000
-- Emblem 9319151007
12 Drain Assy 9332574005
11 Base Assy (07, 09) 9332888003
11 Base Assy (12) 9332888010
6 Cabinet Right Assy 9332963007
7 Switch Cover A Assy 9332964004
8 Switch Cover B 9332843002
Ref. Description Part number
10 Propeller Fan 9309909014
9 Fan Motor 9603074012
2
1
7
3
8
6
5
4
12
10
11
9
