– 11 –
Actual pipe length
30m 40m 50m Additional
(99ft) (132ft) (164ft) refrigerant (R407C)
Full charge amount 7,000g 8,000g 9,000g 100g/m
HEAT & COOL MODEL
(247 oz) (282 oz) (317 oz) (3.5 oz / 3.3 ft)
Full charge amount 6 ,000g 6,500g 7,000g 50g/m
COOLING MODEL (212 oz) (229 oz) (247 oz) (1.8 oz / 3.3 ft)
Cooling Mode *Heating Mode
COOLING MODEL Approx. 00 to 52°C –––––
HEAT & COOL MODEL
Approx. 00 to 46°C Approx. -10 to 21°C
(Reverse Cycle)
INDOOR TEMPERATURE Approx. 18 to 30°C Approx. below 30°C
INDOOR HUMIDITY Approx. 80% or less –––––

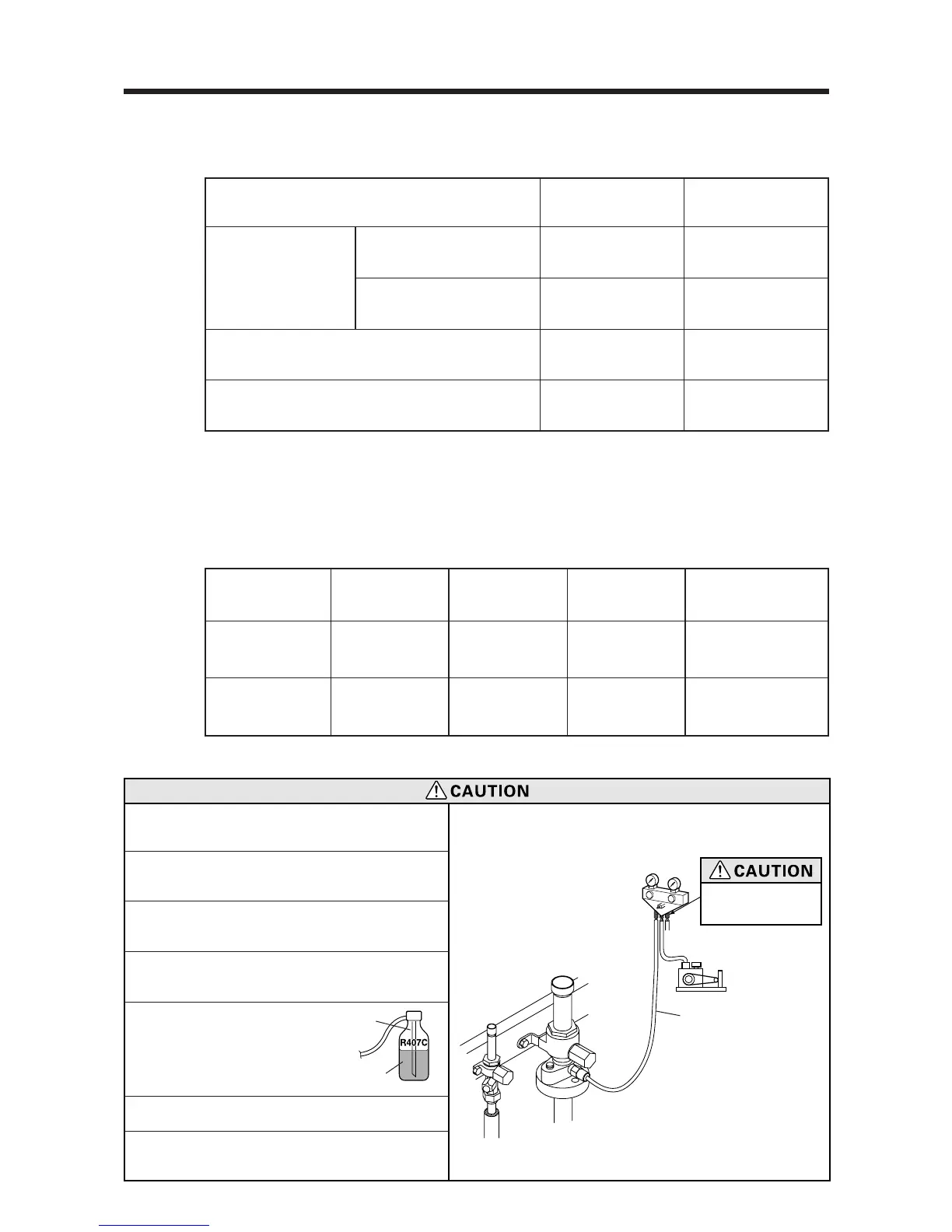

■ REFRIGERANT CHARGE
■ TEMPERATURE AND HUMIDITY RANGE
OUTDOOR
TEMPERATURE
• Do not use this unit for any purpose other than the cooling, (*) heating,
dehumidifying and circulating air of rooms in ordinary dwellings.
5. OPERATION DETAILS
Do not purge the air with refrigerants but use a vacuum
pump to vacuum the installation! There is no extra re-
frigerant in the outdoor unit for air purging!
Use a vacuum pump for R407C exclusively. Using the
same vacuum pump for different refrigerant may dam-
age the vacuum pump or the unit.
When moving and installing the air conditioner, do not
mix gas other than the specified refrigerant R407C
inside the refrigerant circuit.
When charging the refrigerant R407C, always use an
electronic balance for refrigerant charging (to measure
the refrigerant by weight).
When charging the refrigerant,
take into account the slight change
in the composition of the gas and
liquid phases, and always charge
from the liquid phase side whose
composition is stable.
Add refrigerant from the charging valve after the
completion of the work.
Use a brand-new refrigerant piping when replacing the
air conditioner using the refrigerant except R407C and
R410A.
Gas
Liquid
LO
HI
Gauge manifold
Service hose
Vacuum pump
Use a clean gauge mani-
fold and charging hose
for R407C exclusively.
