7-1-2. HIGH PRESSURE MODE
MODEL : AR 12L

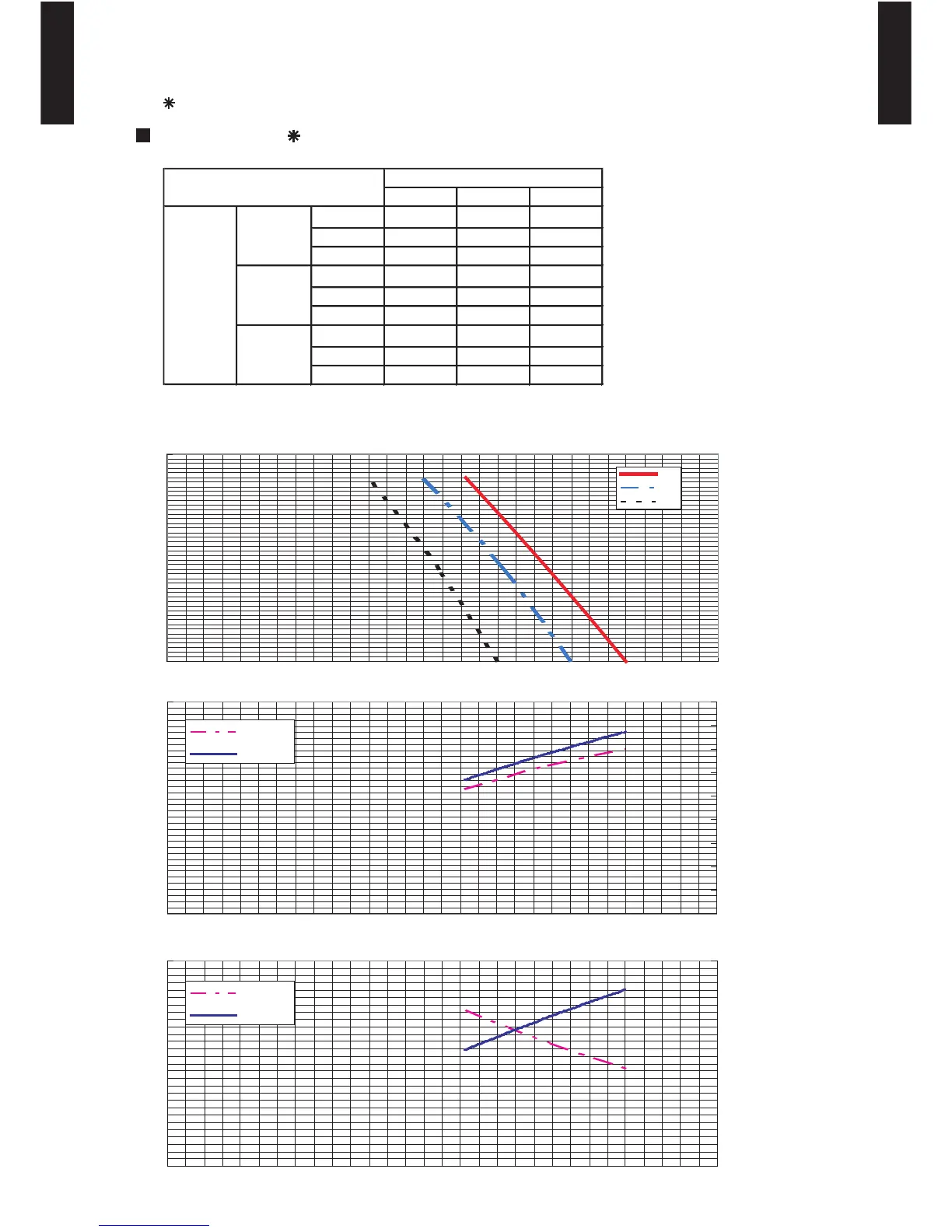

Q-h Characteristic curve
Cooling capacity(%) STATIC PRESSURE(Pa)Heating capacity(%)
COOLING
Air temperature(
°C)
Air temperature(
°C)
AIR FLOW (m
3
/h)
AIR FLOW (m
3
/h)
AIR FLOW (m
3
/h)
HEATING
For AR 9L models, HIGH PRESSURE MODE is not available.
0 20 40
m
3
/h
700 616 525
l/s 194 171 146
CFM 412 363 309
m
3
/h
640 568 480
l/s 178 158 133
CFM 377 335 283
m
3
/h
560 497 420
l/s 156 138 117
CFM 330 293 247
FAN SPEED
Hi
Med
Low
Static pressure (Pa)
0
5
10
15
20
25
30
35
40
45
200 300 400 500 600 700 800
Hi
Med
Low
76.0
80.0
84.0
88.0
92.0
96.0
100.0
104.0
200 300 400 500 600 700 800
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
Air temp
Capacity
76.0
80.0
84.0
88.0
92.0
96.0
100.0
104.0
200 300 400 500 600 700 800
31.0
33.0
35.0
37.0
39.0
41.0
43.0
45.0
Air temp
Capacity
