Fujitsu AS*12LMACW User Manual

- (02 - 05) -
OUTDOOR UNIT AO 18-24L2
OUTDOOR UNIT AO 18-24L2

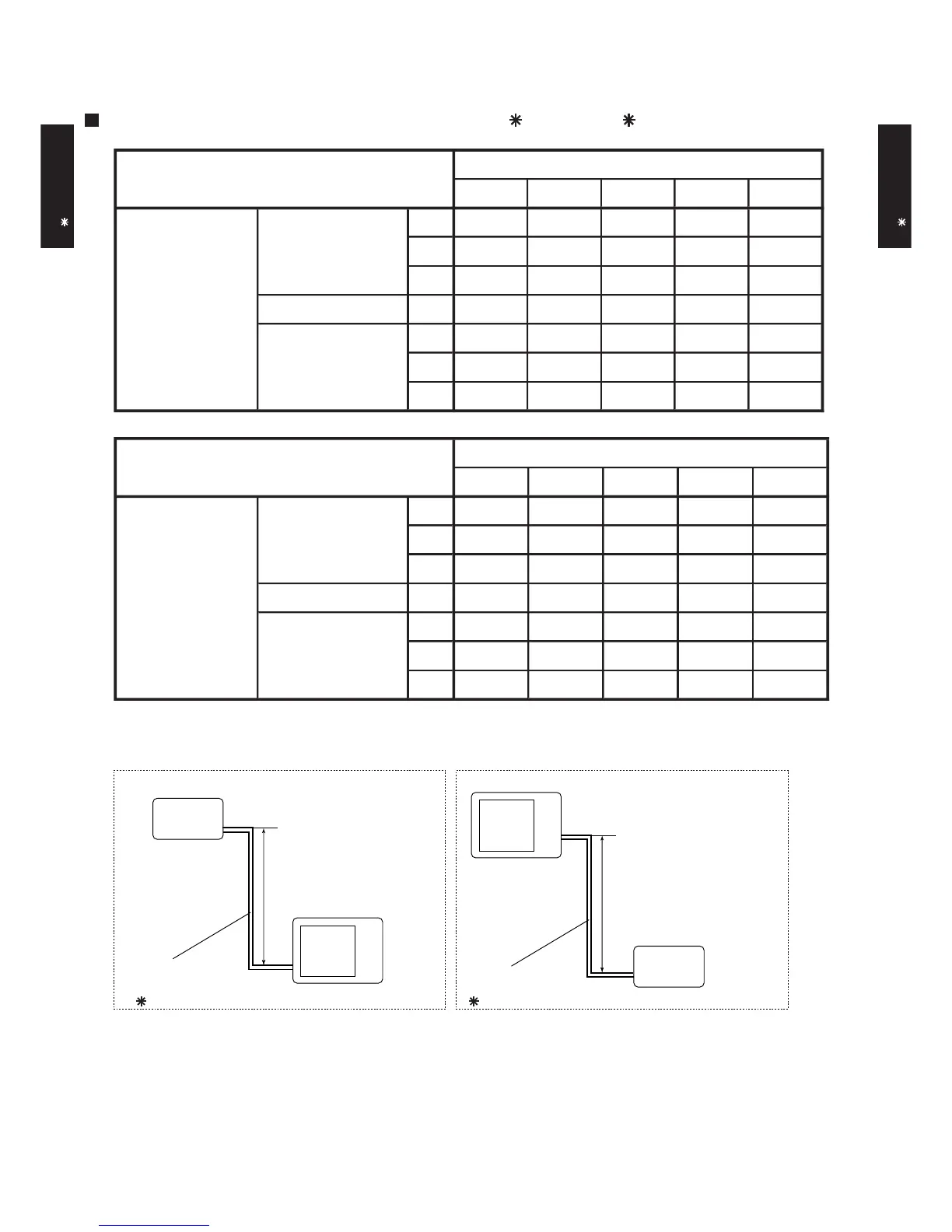

5. COEFFICIENT OF COMPENSATION FOR PIPE LENGTH
 AND HEIGHT DIFFERENCE
MODELS : INDOOR UNIT 7000BTU (AO 18L2, AO 24L2)
Indoor unit
Height difference H
Connection pipe
H
Outdoor unit
Indoor unit
Connection pipe
H
Outdoor unit
Indoor unit is upper than outdoor unit.
1
Indoor unit is under than outdoor unit.
2
5 7.5 10 15 20
10 - - 0.996 0.990 0.984
7.5 - 1.000 0.996 0.990 0.984
5 1.002 1.000 0.996 0.990 0.984
0 1.002 1.000 0.996 0.990 0.984
-5 0.994 0.992 0.988 0.982 0.976
-7.5 - 0.988 0.984 0.978 0.972
-10 - - 0.980 0.974 0.968
Height difference H
(m)
COOLING
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
5 7.5 10 15 20
10 - - 0.983 0.957 0.914
7.5 - 0.993 0.985 0.960 0.916
5 1.000 0.995 0.988 0.962 0.919
0 1.005 1.000 0.993 0.967 0.923
-5 1.005 1.000 0.993 0.967 0.923
-7.5 - 1.000 0.993 0.967 0.923
-10 - - 0.993 0.967 0.923
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
HEATING
Pipe length (m)
Pipe length (m)
Height difference H
(m)
