Fujitsu AS*12LMACW User Manual

- (02 - 06) -

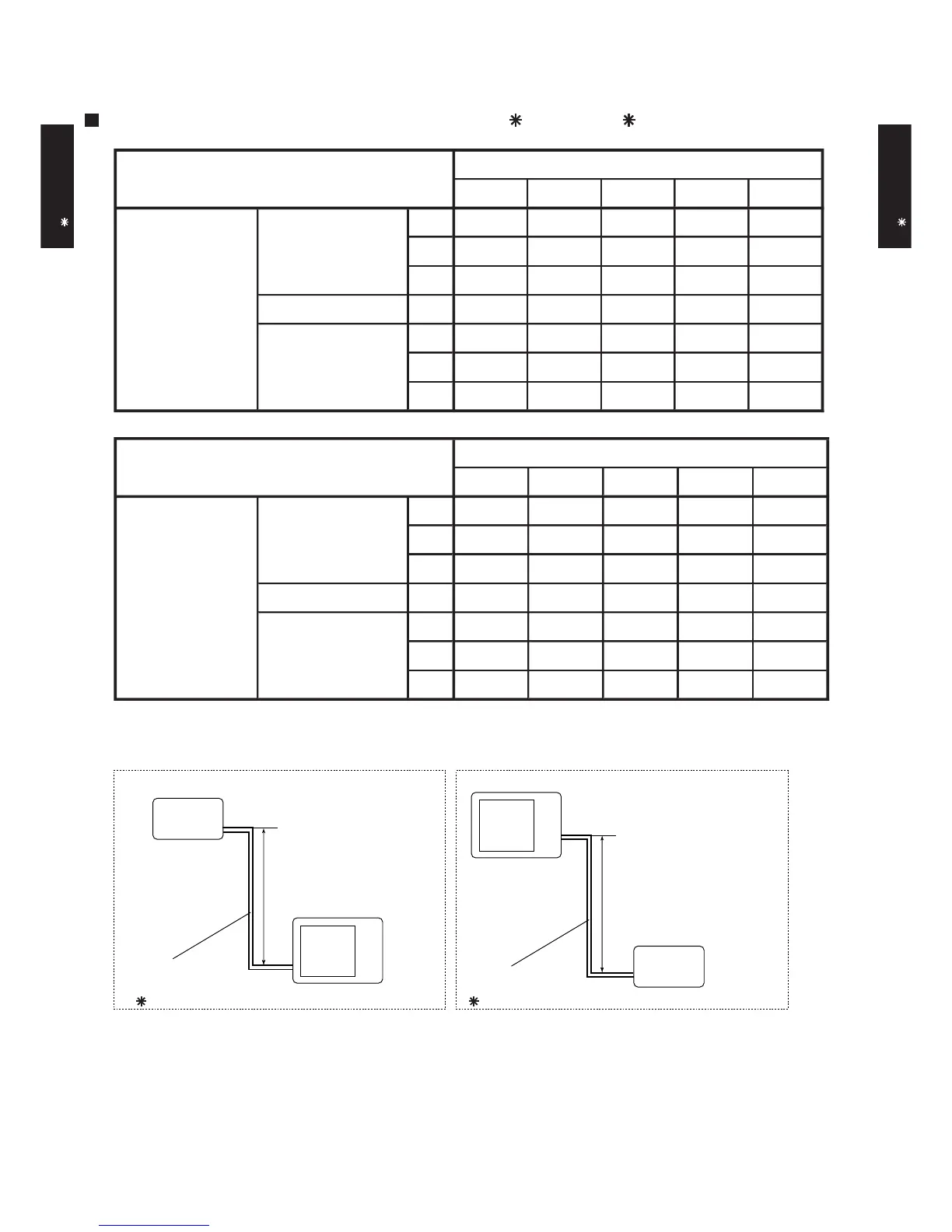

OUTDOOR UNIT AO 18-24L2
OUTDOOR UNIT AO 18-24L2
MODELS : INDOOR UNIT 9000BTU (AO 18L2, AO 24L2)
Indoor unit
Height difference H
Connection pipe
H
Outdoor unit
Indoor unit
Connection pipe
H
Outdoor unit
Indoor unit is upper than outdoor unit.
1
Indoor unit is under than outdoor unit.
2
5 7.5 10 15 20
10 - - 0.995 0.983 0.972
7.5 - 1.000 0.995 0.983 0.972
5 1.006 1.000 0.995 0.983 0.972
0 1.006 1.000 0.995 0.983 0.972
-5 0.998 0.992 0.987 0.976 0.964
-7.5 - 0.988 0.983 0.972 0.960
-10 - - 0.979 0.968 0.956
COOLING
Pipe length (m)
Height difference H
(m)
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
5 7.5 10 15 20
10 - - 0.983 0.957 0.914
7.5 - 0.993 0.985 0.960 0.916
5 1.000 0.995 0.988 0.962 0.919
0 1.005 1.000 0.993 0.967 0.923
-5 1.005 1.000 0.993 0.967 0.923
-7.5 - 1.000 0.993 0.967 0.923
-10 - - 0.993 0.967 0.923
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
HEATING
Pipe length (m)
Height difference H
(m)

Fujitsu AS*12LMACW Specifications

General

Brand	Fujitsu
Model	AS*12LMACW
Category	Air Conditioner
Language	English
