Fujitsu AS*12LMACW User Manual

- (02 - 07) -

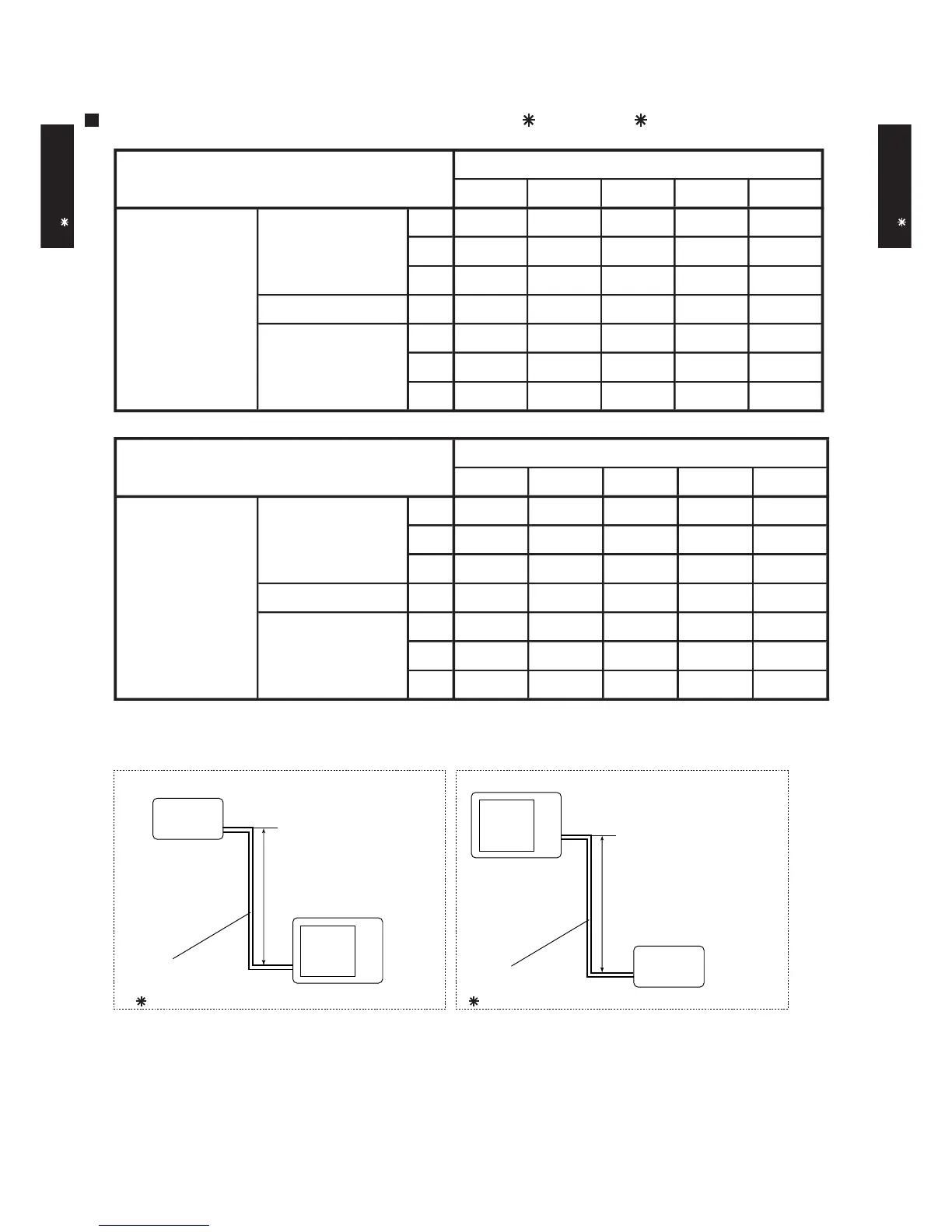

OUTDOOR UNIT AO 18-24L2
OUTDOOR UNIT AO 18-24L2
MODELS : INDOOR UNIT 12000BTU (AO 18L2, AO 24L2)
Indoor unit
Height difference H
Connection pipe
H
Outdoor unit
Indoor unit
Connection pipe
H
Outdoor unit
Indoor unit is upper than outdoor unit.
1
Indoor unit is under than outdoor unit.
2
5 7.5 10 15 20
10 - - 0.991 0.974 0.955
7.5 - 1.000 0.991 0.974 0.955
5 1.008 1.000 0.991 0.974 0.955
0 1.008 1.000 0.991 0.974 0.955
-5 1.000 0.992 0.983 0.966 0.948
-7.5 - 0.988 0.979 0.962 0.944
-10 - - 0.975 0.958 0.940
COOLING
Pipe length (m)
Height difference H
(m)
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
5 7.5 10 15 20
10 - - 0.979 0.951 0.913
7.5 - 0.993 0.982 0.953 0.915
5 1.004 0.995 0.984 0.956 0.918
0 1.009 1.000 0.989 0.960 0.922
-5 1.009 1.000 0.989 0.960 0.922
-7.5 - 1.000 0.989 0.960 0.922
-10 - - 0.989 0.960 0.922
HEATING
Pipe length (m)
Height difference H
(m)
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
