When there are obstacles at the
back or front sides.
When there are obstacles at the
back, side(s), and top.
When there are obstacles at the
back, side with the installation of
more than one unit.
MOUNTING POSITION
(Unit : mm)

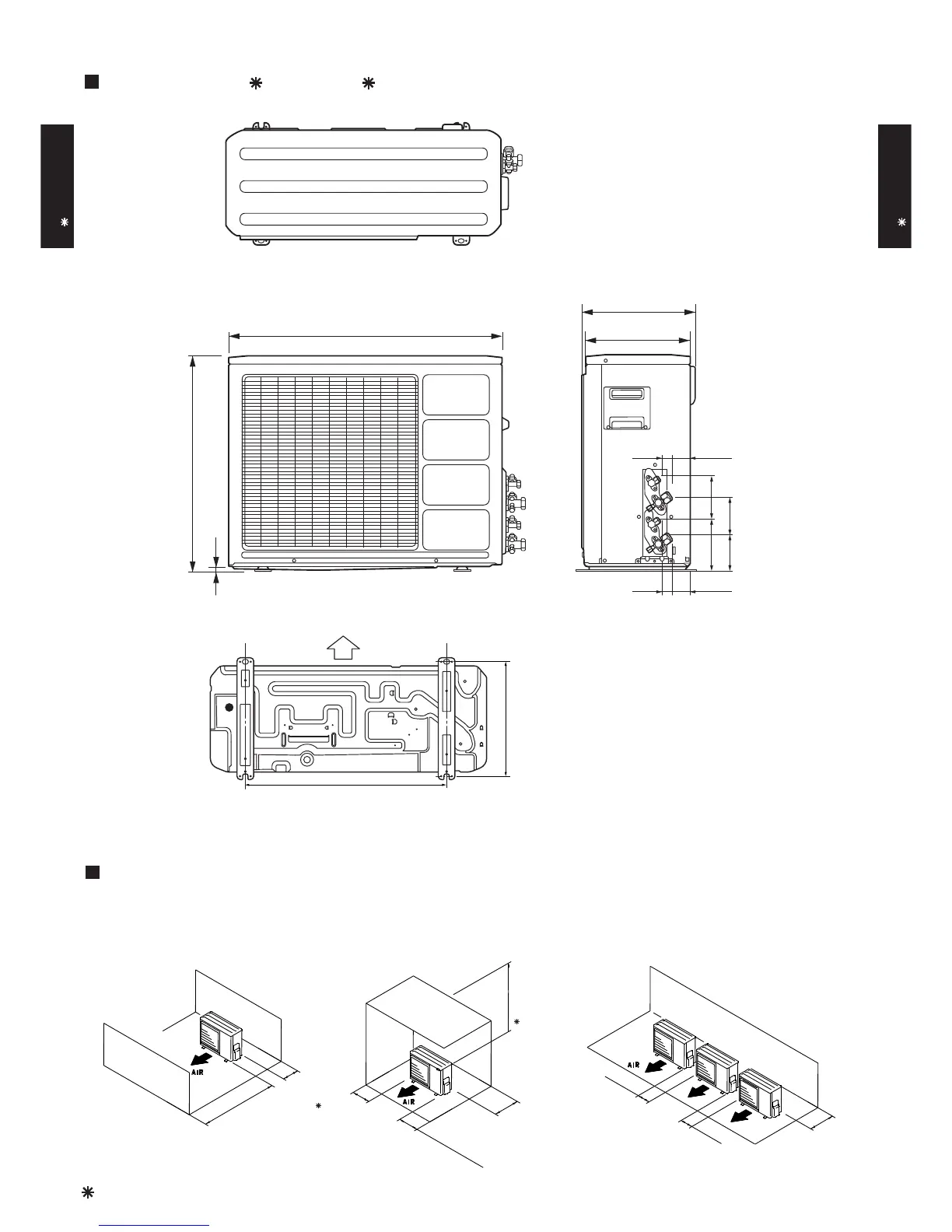

2. DIMENSIONS
MODELS : AO 18L2, AO 24L2
Top view
Front view
Bottom view
Side view
23.7 61
14.2 70.5
114.599.4
120154
600 or more
250 or more
250 or more
300 or more
600 - 1000
100 or more
300 or more
100 - 300
250 o
r
mo
r
e
(
Servic
e space)
If the space is larger that is stated, the condition will be the same as that are no obstacles.
Air flow
603
343
350
320
830
650
12
OUTDOOR UNIT AO 18-24L2
OUTDOOR UNIT AO 18-24L2
