11-2. External output
Use an external output cable with appropriate external dimension, depending on the number of ca-
bles to be installed.
¢
Operation status output
Indoor unit type Connector
Compact cassette CN103
Slim duct CN103
Wall mounted
ASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RLF1 CNB01
ASU9RLS2, ASU12RLS2, ASU15RLS2 CNB01
ASU7RLF, ASU9RLF, ASU12RLF CN304
ASU18RLF, ASU24RLF CN16
Floor AGU9RLF, AGU12RLF, AGU15RLF CN20
Air conditioner operation status signal can be output.

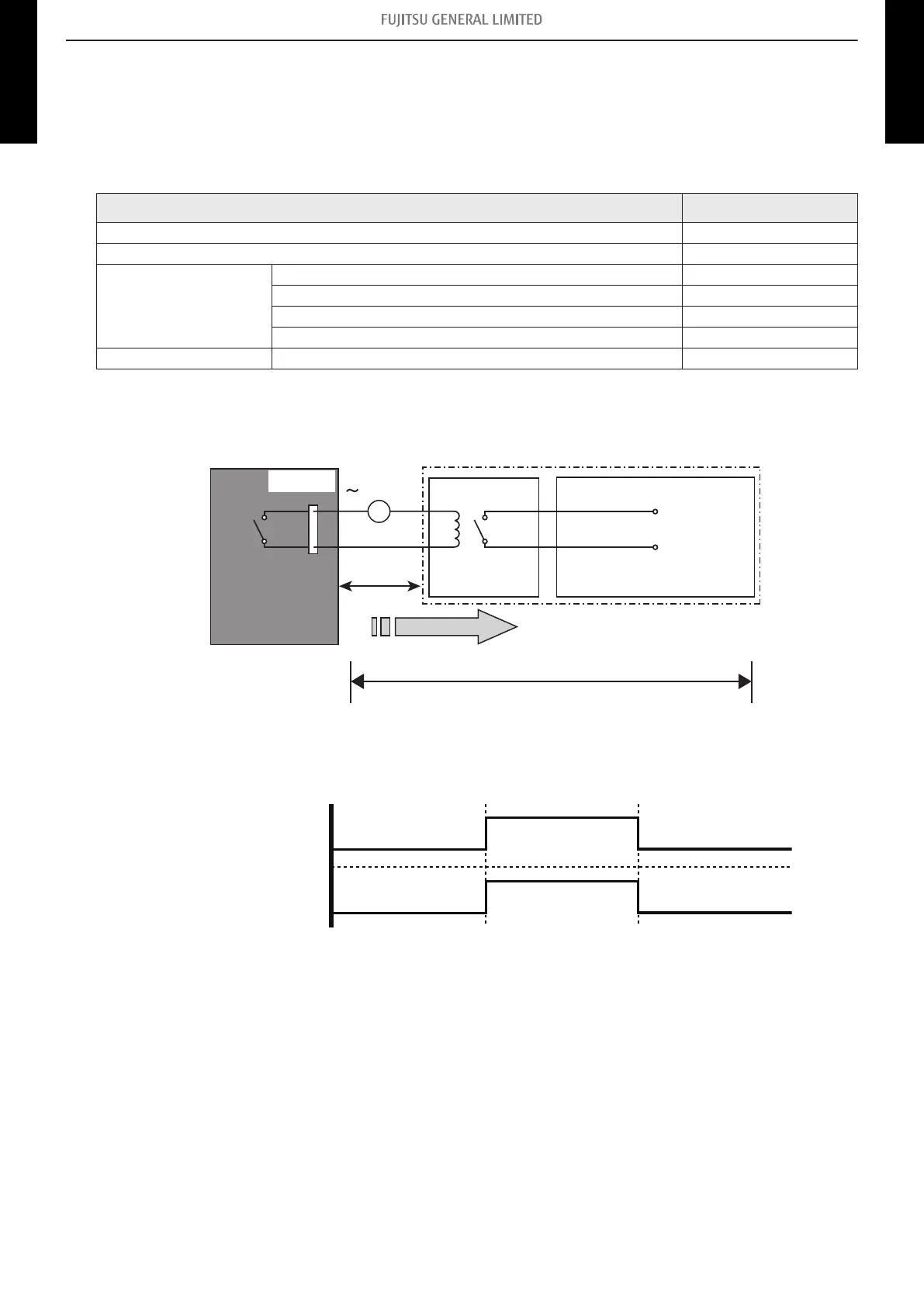

• Circuit diagram example
Locally purchased
Indoor unit
control PCB
*1
Connected unit
Example: Display Example: Relay unit
Relay
power supply
DC 24 V
1
2
Signal
V
Connector
33 ft
(10 m)*2
– *1: PCB of communication kit is used for wall mounted type (ASU7RLF1, ASU9RLF1,
ASU12RLF1, and ASU15RLF1).
– *2: Make the distance from the PCB to the connected unit within 33 ft (10 m).
– Relay spec: Max. DC 24 V, 10 mA to less than 500 mA.
On
Off
Operation
Stop
Indoor unit
Output signal
- 100 -
11-2. External output 11. External input and output
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
