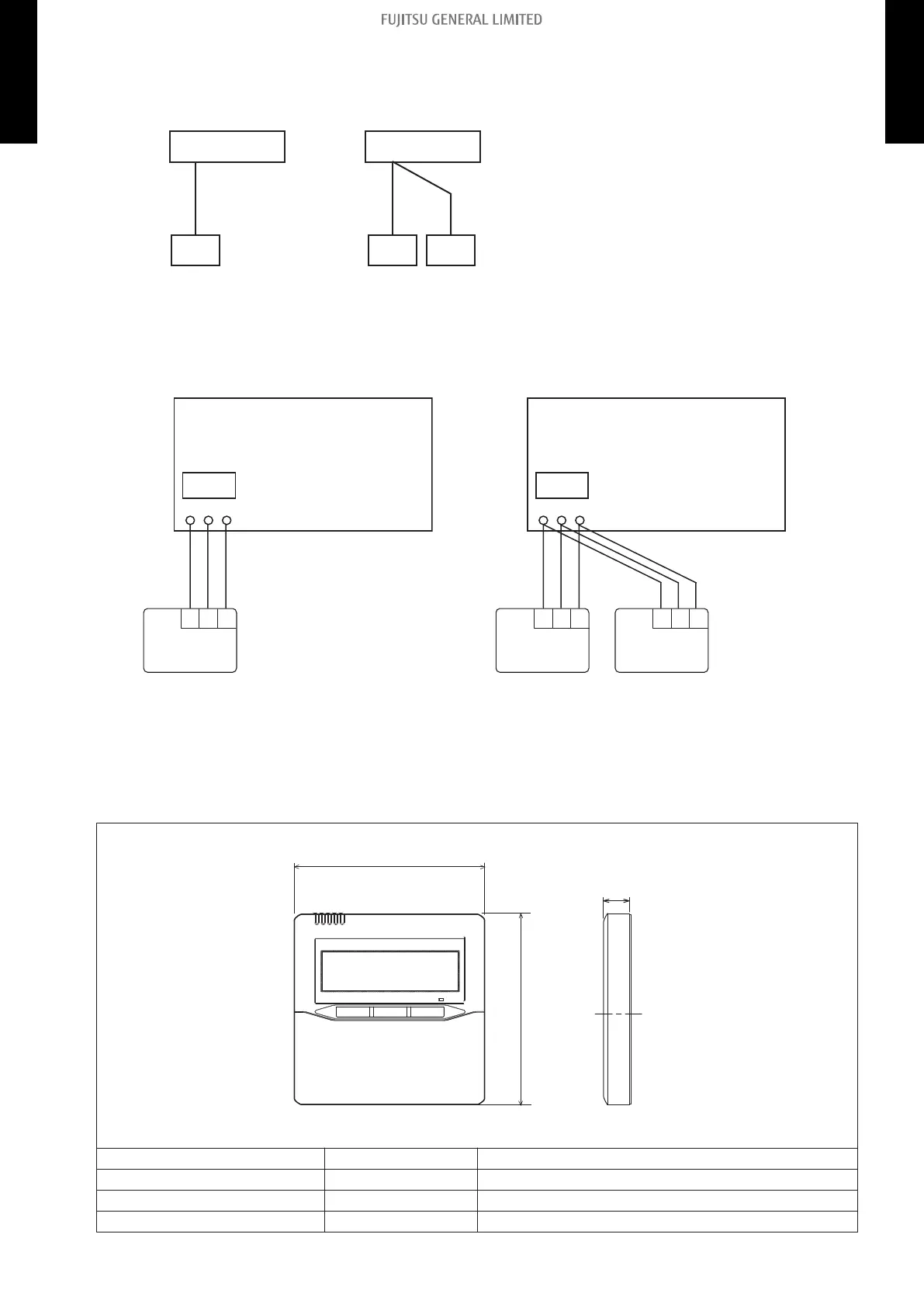

System diagram
1 remote controller:
A
Indoor unit
Remote controller
2 remote controllers:
Primary
Secondary
BC
Indoor unit
Remote controllers
A, B, C: Remote controller cable
A ≤ 1,640 ft (500 m);B + C ≤ 1,640 ft (500
m)
¢
Electrical wiring
1 remote controller:
Remote controller
1 (Red): 12 V
2 (White): Signal
3 (Black): COM
Indoor unit
Remote
controller
123
123
2 remote controllers:
Remote controllers
1 (Red): 12 V
2 (White): Signal
3 (Black): COM
Primary Secondary
Indoor unit
123
123 123
Remote
controller
¢
Specifications
Dimensions and other specifications on the wired remote controller are as follows.
Unit: in (mm)
Side viewFront view
4-3/4 (120)
4-3/4 (120)
11/16 (18)
Size (H × W × D) in (mm) 4-3/4 × 4-3/4 × 11/16 (120 × 120 × 18)
Weight oz (g) 5.6 (160)
Cable length (accessory) ft (m) 33 (10)
Power V 12
- 118 -
13-3. Wired remote controller (UTY-RNNUM) 13. Remote controller
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
