AR-RED1U/AR-REG1U
Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
MIN HEAT button
Setting number
Function number
Refer to Function details
Refer to Function details
Switches between the setting number
(bottom line) and function number (top
line)
The displayed number Increases and
decreases
Changes the display digits
Transmits function setting
Transmits function mode
POWERFUL button
SET TEMP. (
/ ) button
START/STOP ( ) button
RESET button
MODE button

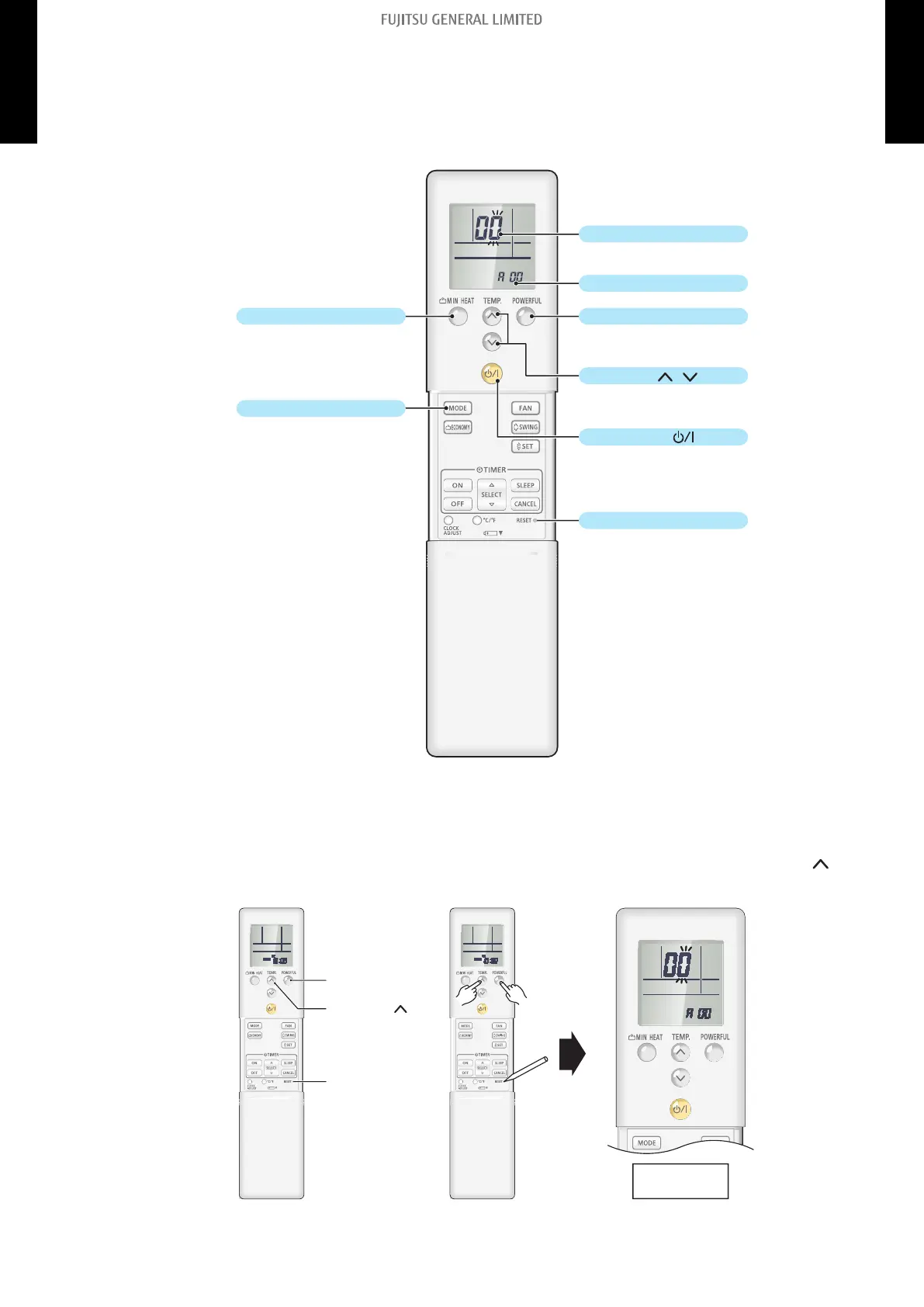

Function setting procedure
1. Connect the power supply of the outdoor unit.
2.
To enter the function setting mode, while holding down the POWERFUL and SET TEMP.
buttons, press the RESET button.
POWERFUL
SET TEMP.
(
)
RESET
Function setting
mode display
- 136 -
14-2. Indoor unit (setting by wireless remote controller) 14. Function settings
MULTI TYPE
2, 3, 4 ROOMS TYPE
MULTI TYPE
2, 3, 4 ROOMS TYPE
To Next Page
