5. CONTROL SYSTEM
INSTALLATION


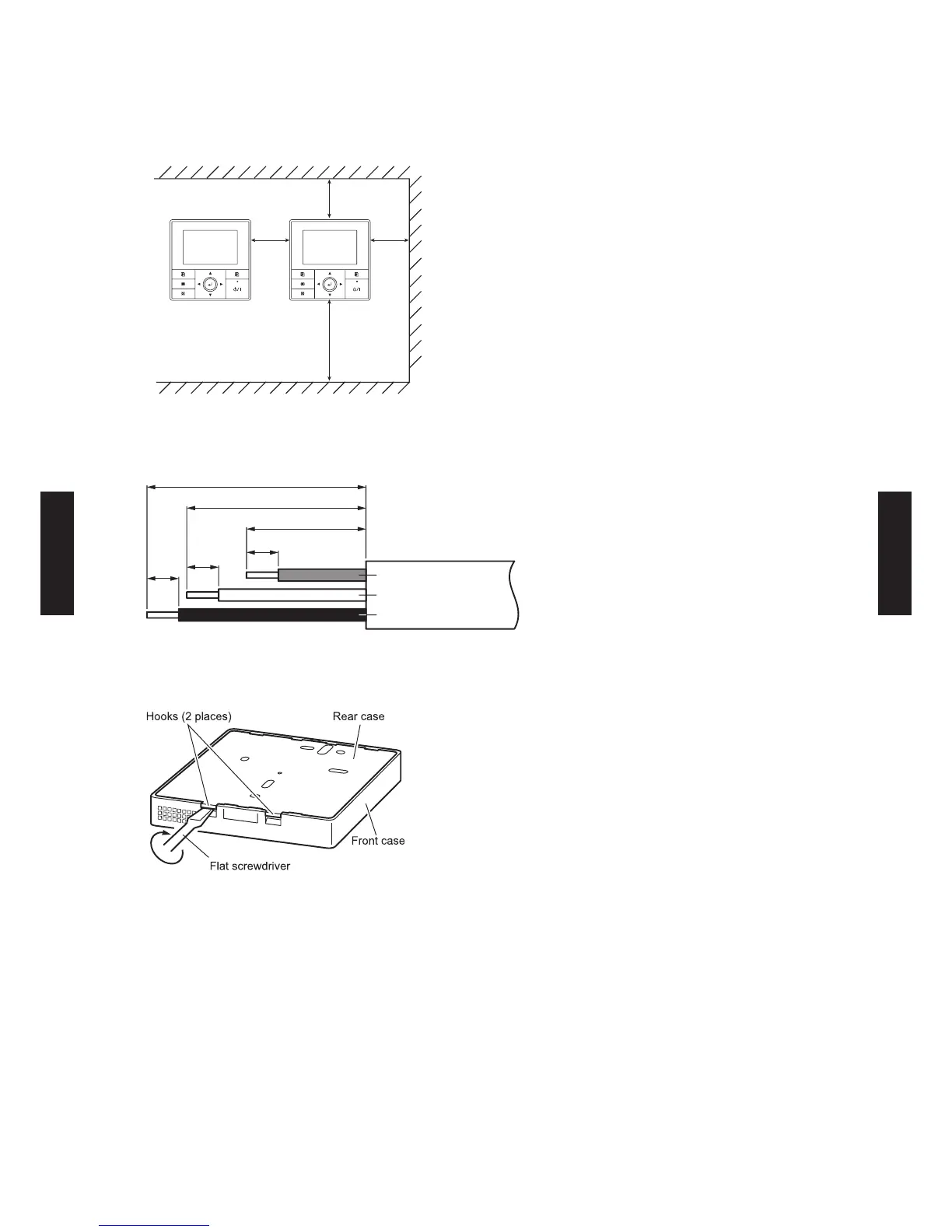

1) Installation space.
220 or more*
Unit : mm
30 or more
30 or more
30 or more
* Please secure enough space
where a at screwdrier can be
inserted to take off the case.
2) Processing of the remote controller cable.
8
8
8
30
45
55
Unit : mm
1. 12V (Red)
2. Signal (White)
3. COM (Black)
 nsert a atbade screwdrier and reoe the ront case and rear case b twisting it sight.
