7. OPTIONAL PARTS

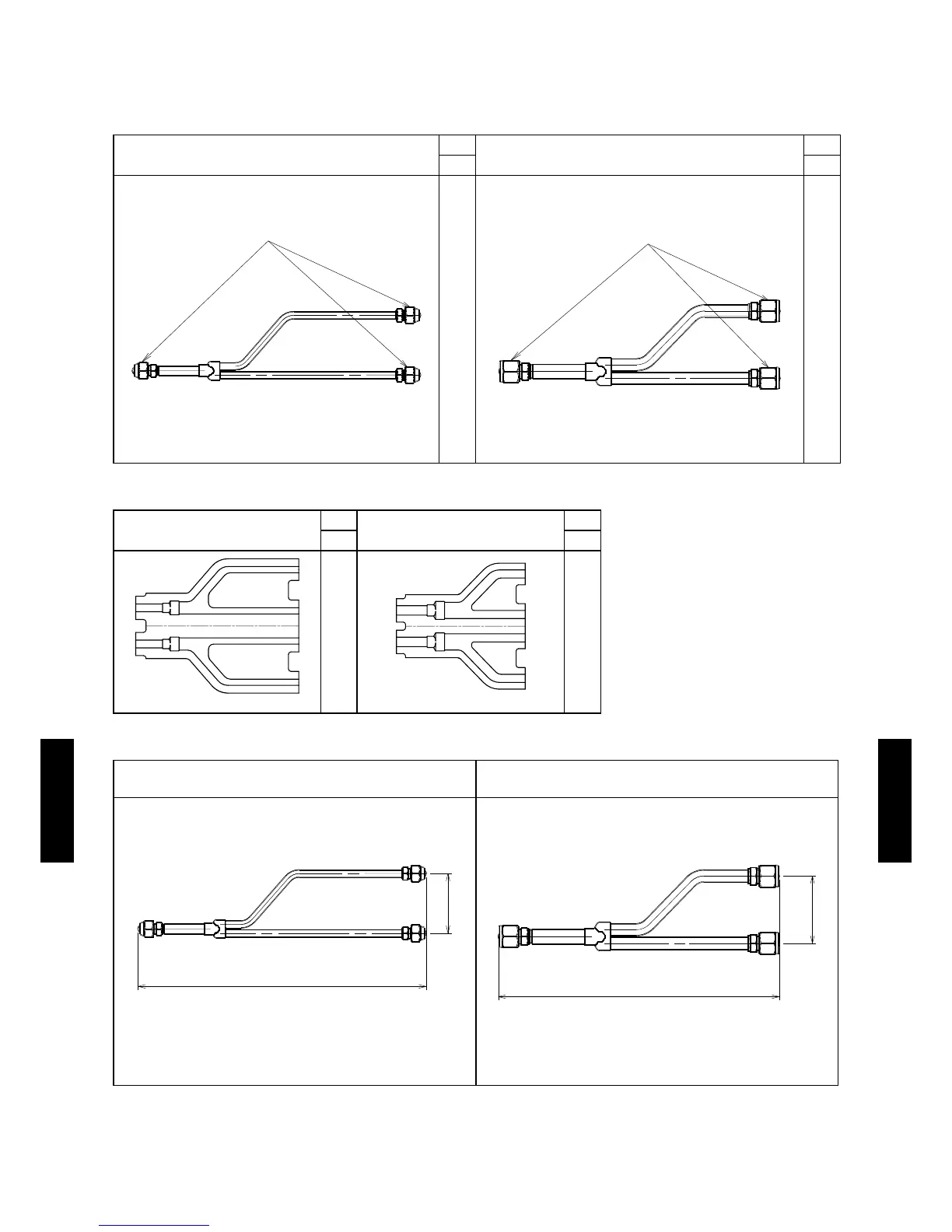

SEPARATION TUBE1.
MODEL : UTP-

SX248A
Port diameters

Liquid pipe Gas pipe
Q'ty Q'ty
ø 9.52
1
ø 15.88
1
Heat insulation

For liquid pipe For gas pipe
Q'ty Q'ty
1 1
Dimensions

Liquid pipe Gas pipe
386
80
376
90
Unit: mm
- (07 - 01) -
