6. SYSTEM DESIGN

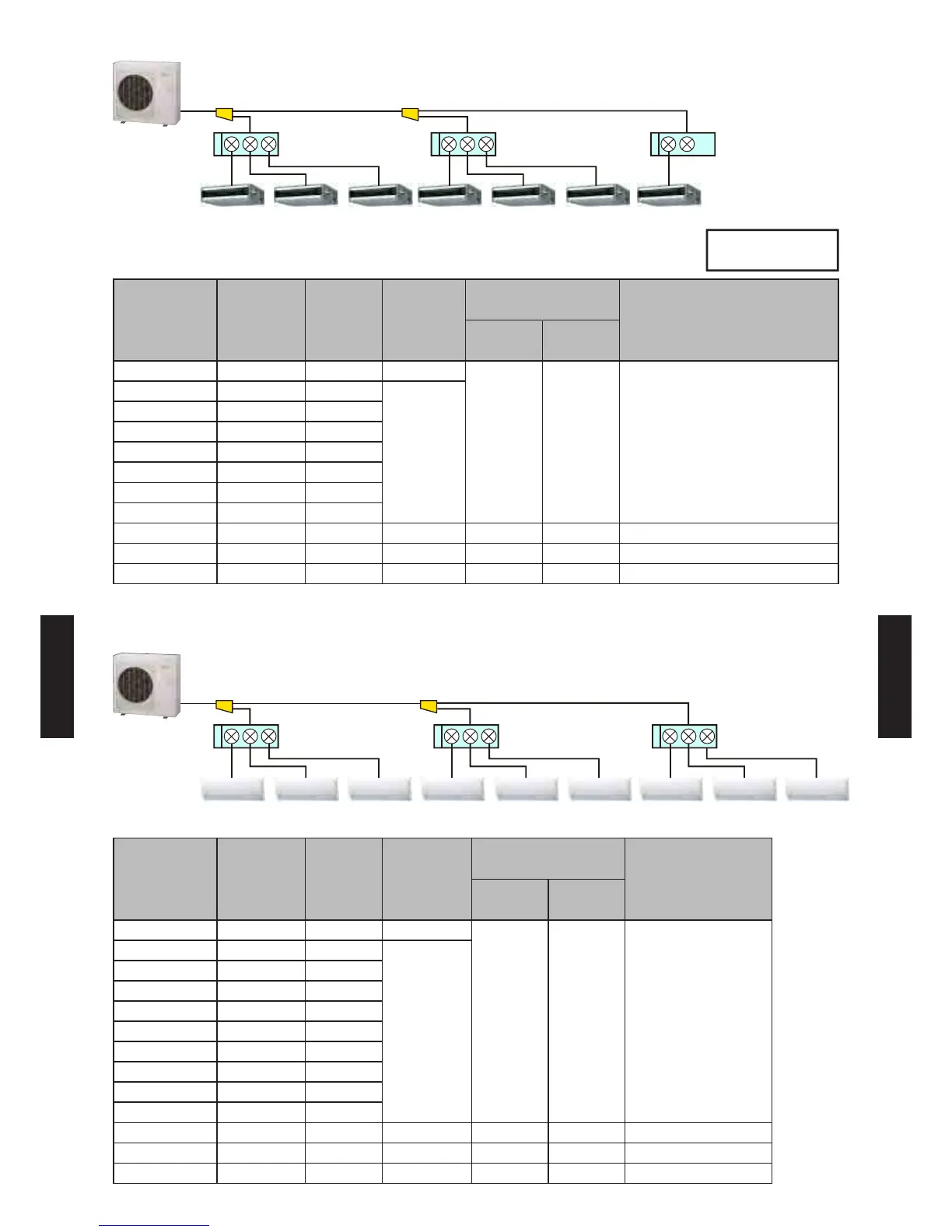

Example 7 (Prohibited)

Outdoor unit
Indoor unit 1
Branch box 1
(3 branches type)
Branch box 2
(3 branches type)
Indoor unit 2 Indoor unit 3 Indoor unit 4 Indoor unit 5 Indoor unit 6 Indoor unit 7
Branch box 3
(2 branches type)
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0

80%
11.2

130%
18.2

<

18.2 < 19.4
 Prohibited
Indoor unit 1 AR12 3.52

19.36
Indoor unit 2 AR09 2.64
Indoor unit 3 AR09 2.64
Indoor unit 4 AR09 2.64
Indoor unit 5 AR09 2.64
Indoor unit 6 AR09 2.64
Indoor unit 7 AR09 2.64
Branch box 1
UTP-PY03A
-
-
- -
-
Branch box 2
UTP-PY03A
-
-
- -
-
Branch box 3
UTP-PY02A
-
-
- -
-
Example 8 (Prohibited)

Branch box 1
(3 branches type)
Branch box 2
(3 branches type)
Branch box 3
(3 branches type)
Outdoor unit
Indoor unit 1 Indoor unit 2 Indoor unit 3 Indoor unit 4 Indoor unit 5 Indoor unit 6 Indoor unit 7 Indoor unit 8 Indoor unit 9
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO48 14.0 14.0

80%
11.2

130%
18.2
Prohibited  ecause
nine indoor units are
connected
Indoor unit 1 AS07 2.05

18.45
Indoor unit 2 AS07 2.05
Indoor unit 3 AS07 2.05
Indoor unit 4 AS07 2.05
Indoor unit 5 AS07 2.05
Indoor unit 6 AS07 2.05
Indoor unit 7 AS07 2.05
Indoor unit 8 AS07 2.05
Indoor unit 9 AS07 2.05
Branch box 1
UTP-PY03A
-
-
- -
-
Branch box 2
UTP-PY03A
-
-
- -
-
Branch box 3
UTP-PY03A
-
-
- -
-
Capacity ratio
138%
- (06 - 06) -
