6. SYSTEM DESIGN

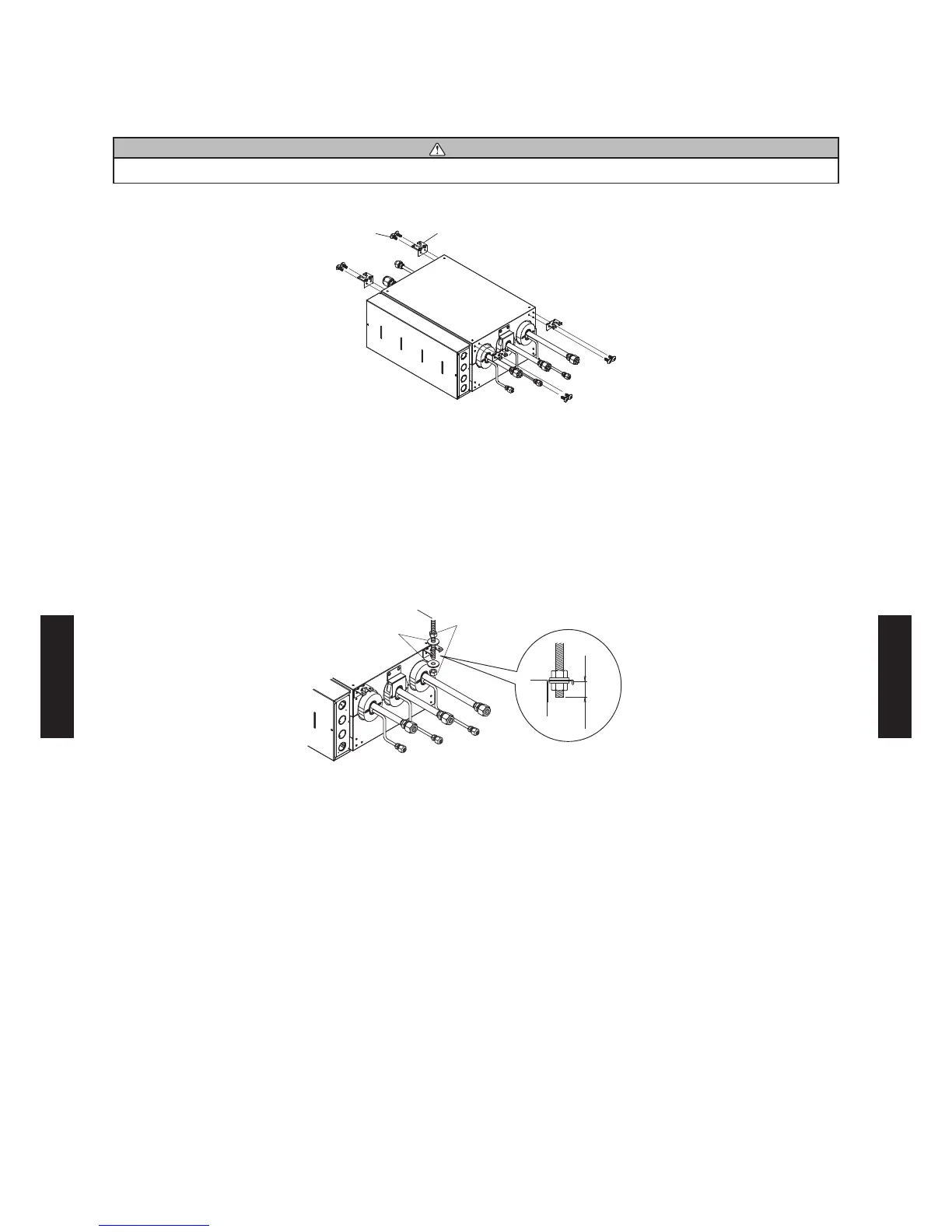

Fix the unit (When hanging from the ceiling)
CAUTION
Do not hang from the ceiling when performing a vertical installation.
(1) Secure the hangers (accessories) with the screws (2 pieces, Ø 4 x 10mm, accessories). (4 places)
Screw
Hanger (4 places)
(2) Secure the attachment section with the hanging bolt. (Use M8 or M10 for the hanging bolt)
ecure the hangers with heagona nuts ed supp and the washers accessories as shown in
the gure beow.
nce ou hae checed the unit is at asten the heagona nuts.
(The unit’s slope must be within ±5° in all directions.)
20 to 30
Hanging bolt (M8 or M10)
Unit: mm
Hexagonal nuts
(M8 or M10)
Washers
- (06 - 34) -
