Fujitsu ASU12RLF1

- (02 - 02) -
OUTDOOR UNIT AOU9-12RLFW1 OUTDOOR UNIT AOU9-12RLFW1

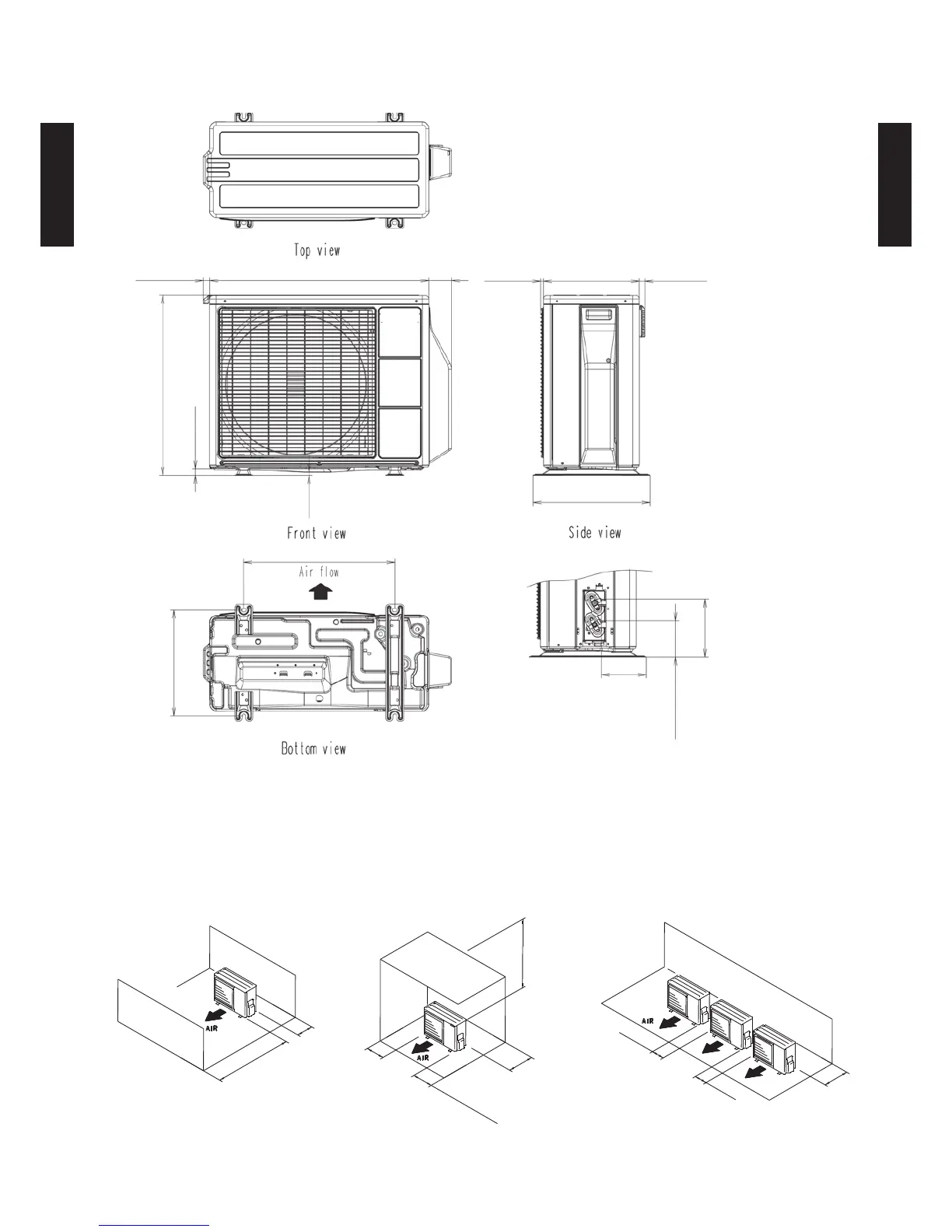

DIMENSIONS2.
MODEL

: AOU9RLFW1
26 (660)
13-7/8 (352)
13/16 (20)
21-1/4 (540)
13-16 (20)
12-1/2 (318)
3/8 (9)
2-11/16 (68) 11/16 (18)3/8 (10) 11-7/16 (290)
17-7/8 (454)
5-5/16 (135)
4-5/16 (110)
6-7/8 (175)
Unit : in.(mm)
INSTALLATION PLACE

24 (600)
or more
10 (250)
or more
10 (250)
or more
12 (300)
or more
24 (600) or more
4 (100)
or more
12 (300)
or more
4 (100)
or more
10 (250) or more
(Service space)
When there are obstacles at the
back or front sides.
When there are obstacles at the
back, side(s), and top.
When there are obstacles at the
back, side with the installation of
more than one unit.
