Fujitsu ASU12RLS3Y

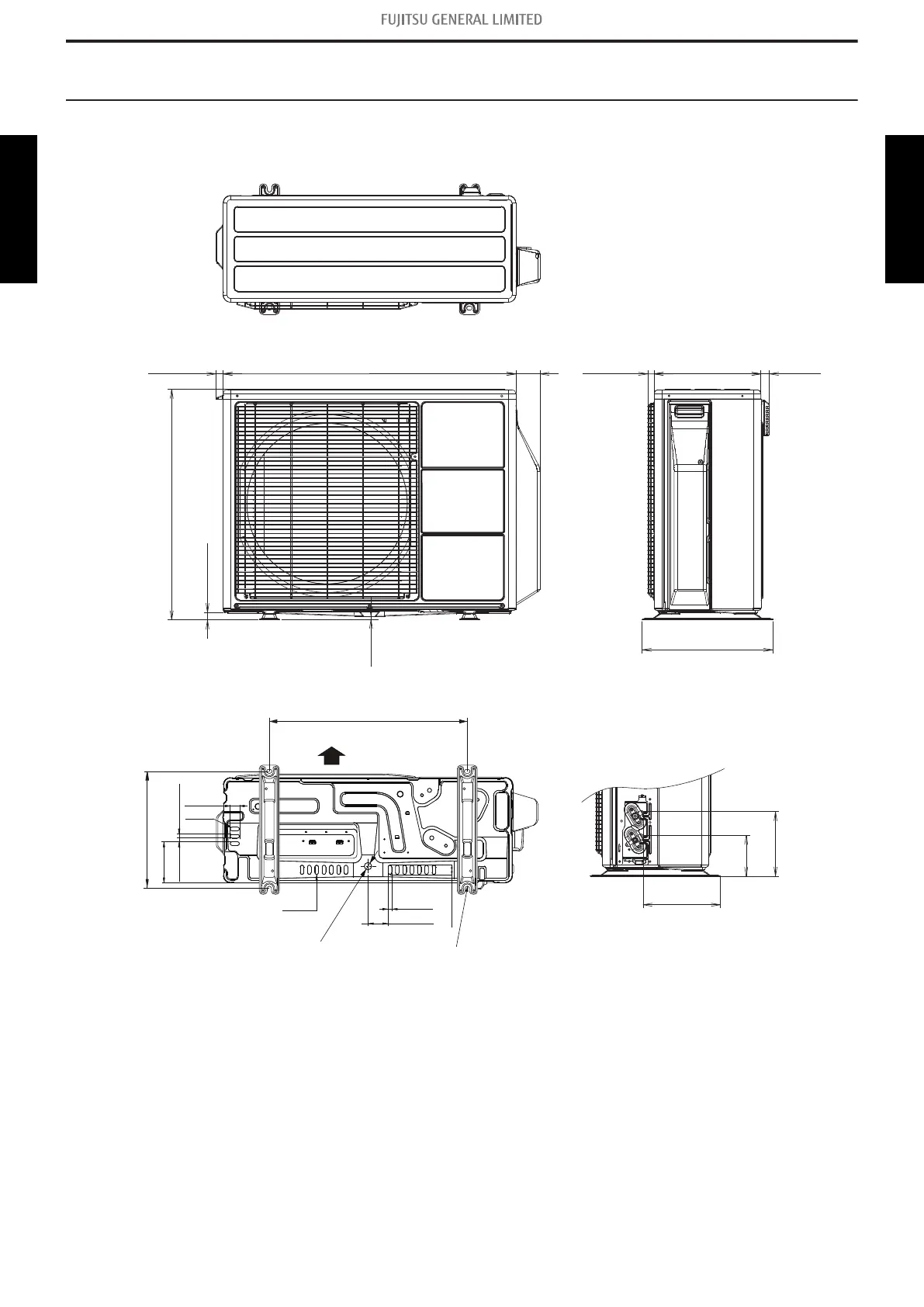

2. Dimensions
2-1. Models: AOU9RLS3H, AOU12RLS3H, and AOU15RLS3H
Unit: in (mm)
Top view
Front view
Bottom view
Side view
31-1/8 (790)
24-7/16 (620)
13/16 (20)
3/8 (9)
3/4 (19) 2-5/8 (67)
11-5/16 (288)
11/16 (18) 7/8 (23)
13-7/8 (352)
4-5/16
(110)
8-1/4 (209)
6-7/8 (175)
12-5/8 (320)
4-ø7/16 (11.3) hole
21-1/4 (540)
Airflow
ø13/16 (20) hole
1 (25)
2-3/16
(55)
3/8(10)
hole
1(25)
3/8 (10)
3/8 (10)
hole
4 (102)
- 41 -
2-1. Models: AOU9RLS3H, AOU12RLS3H, and AOU15RLS3H 2. Dimensions
OUTDOOR UNIT AOU9-15RLS3H OUTDOOR UNIT AOU9-15RLS3H
