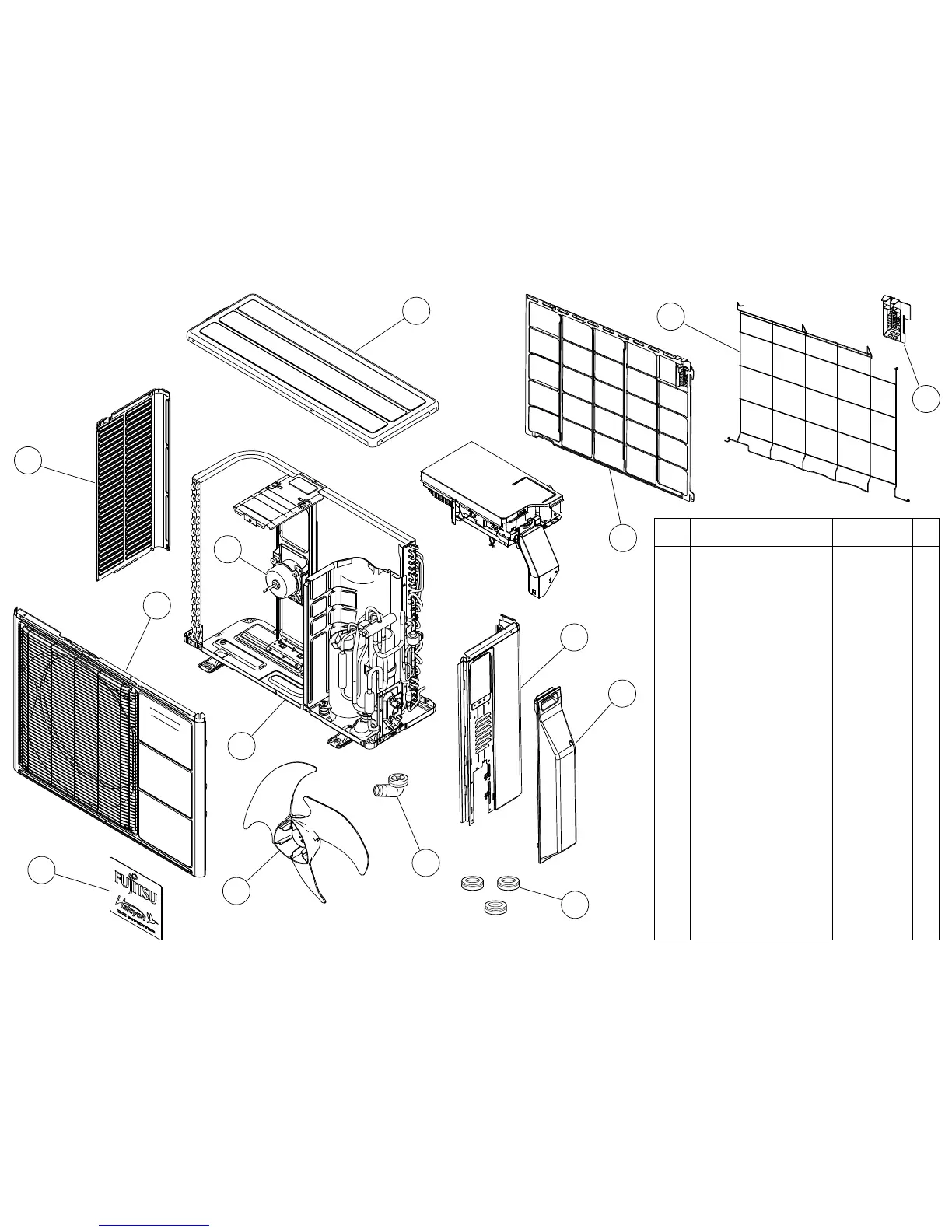

OUTDOOR UNIT
P ARTS
2014.11.06 17
5 Front Panel Assy 9318463033
4 Top Panel Assy 9318464023
1 Protective Net (RLS3) 9331640008
7
9
Cabinet Left Assy 9318461015
6 Emblem 9317903011
Drain Assy (RLS3) 9303029022
Switch Cover 9317692021
10 Base Assy (RLS3) 9316885066
10 Base Assy (RLS3H) 9316885059
8 Cabinet Right Assy 9316044050
11
Drain Cap (RLS3)
31316624302
12
14 Propeller Fan 9313808013
13 Fan Motor Assy 9317757010
Ref. Description Part number
8
9
14
11
13
7
6
10
5
4
1
12
2
Thermistor Holder (RLS3H)
9313954031
3 Protective Net (RLS3H) 9332492002
2
3
