Fujitsu ASU15RLS3

REFRIGERANT

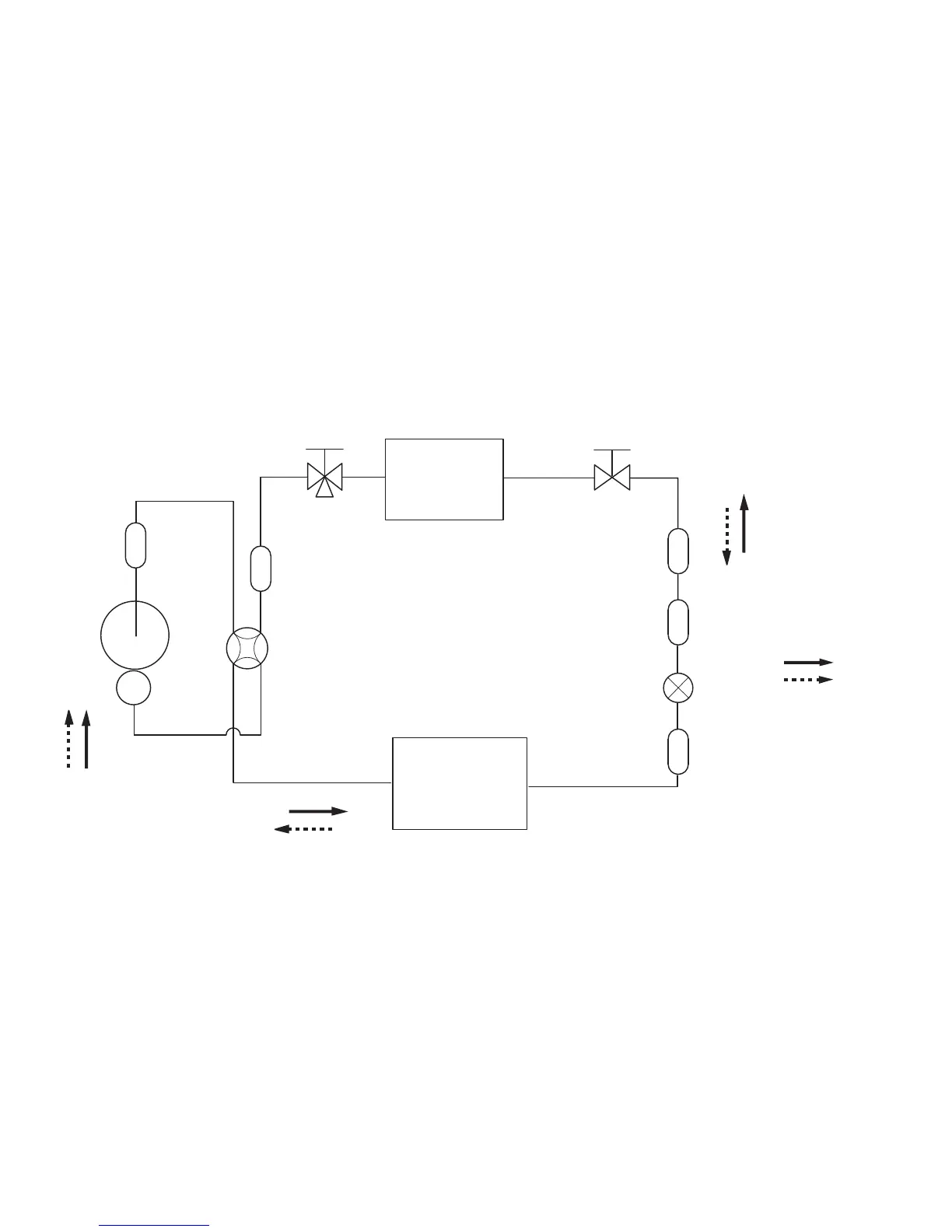

SYSTEM DIAGRAM
Refrigerant direction
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 1/2" (12.7 mm)
2-Way valve
Strainer
Receiver
Strainer
3-Way valve
Muffler
4-Way valve
Expansion valve
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Muffler
Compressor
2015.01.09 3
