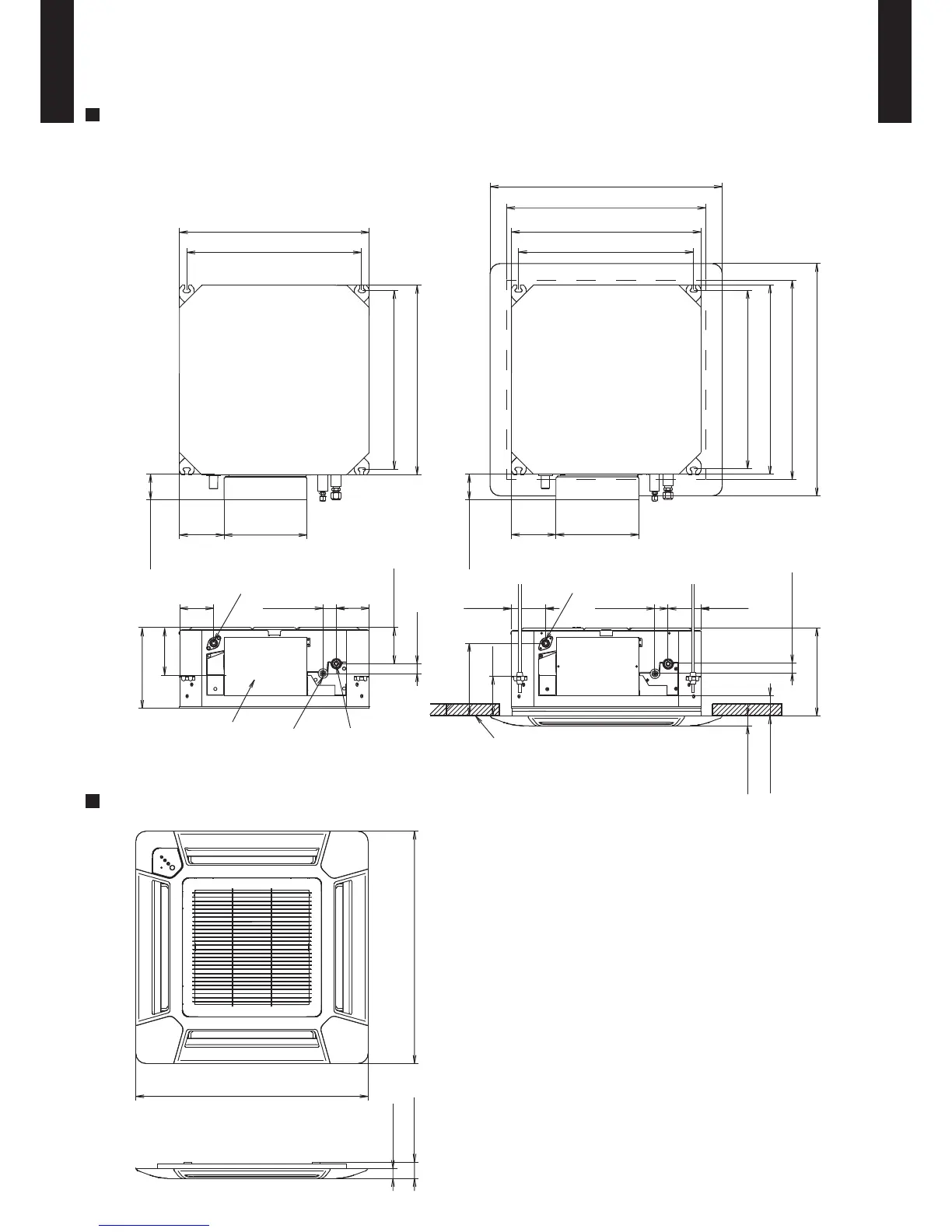

4-3. CASSETTE TYPE
MODEL : AUU9R, AUU12R, AUU18R
MODEL : UTG-UFUB-W
[Unit : Inch (mm)]
[Unit : Inch (mm)]
• Decoration panel mounting state
Side view
Top view
Bottom view
Side view
22-7/16 (570) (Indoor unit)
22-7/16 (570) (Indoor unit)
20-7/8 (530) (Hanging bolt position)
22-7/16 (570) (Indoor unit)
23-26 (580-600) (Ceiling opening)
27-9/16 (700) (Decoration panel)
20-7/8 (530) (Hanging bolt position)
20-1/4 (540) (Hanging bolt position)
22-7/16 (570) (Indoor unit)
23-26 (580-600) (Ceiling opening)
27-9/16 (700) (Decoration panel)
21-1/4 (540) (Hanging bolt position)
9-13/16 (250)5-5/16 (135)
2-15/16 (75)
9-13/16 (250)5-5/16 (135)
2-15/16 (75)
1-9/16 (40)4 (102) 3/7-8 (99)
Drain pipe
Drain pipe
Control box
Liquid pipe
Gas pipe
9-5/8 (245)
5-3/4 (146)
4-1/4 (108)
1-3/16 (30)
Ceiling
4 (102)
8-7/16 (215) 4-1/2 (114)
1-9/16 (40)
3/7-8 (99)
1-3/16 (30)
1-3/16 (30)
10-5/16 (262)
2-5/16 (58)
27-9/16 (700)
27-9/16 (700)
1-3/16 (30)
1-15/16 (49)
