OUTDOOR UNIT AOU36R
OUTDOOR UNIT AOU36R

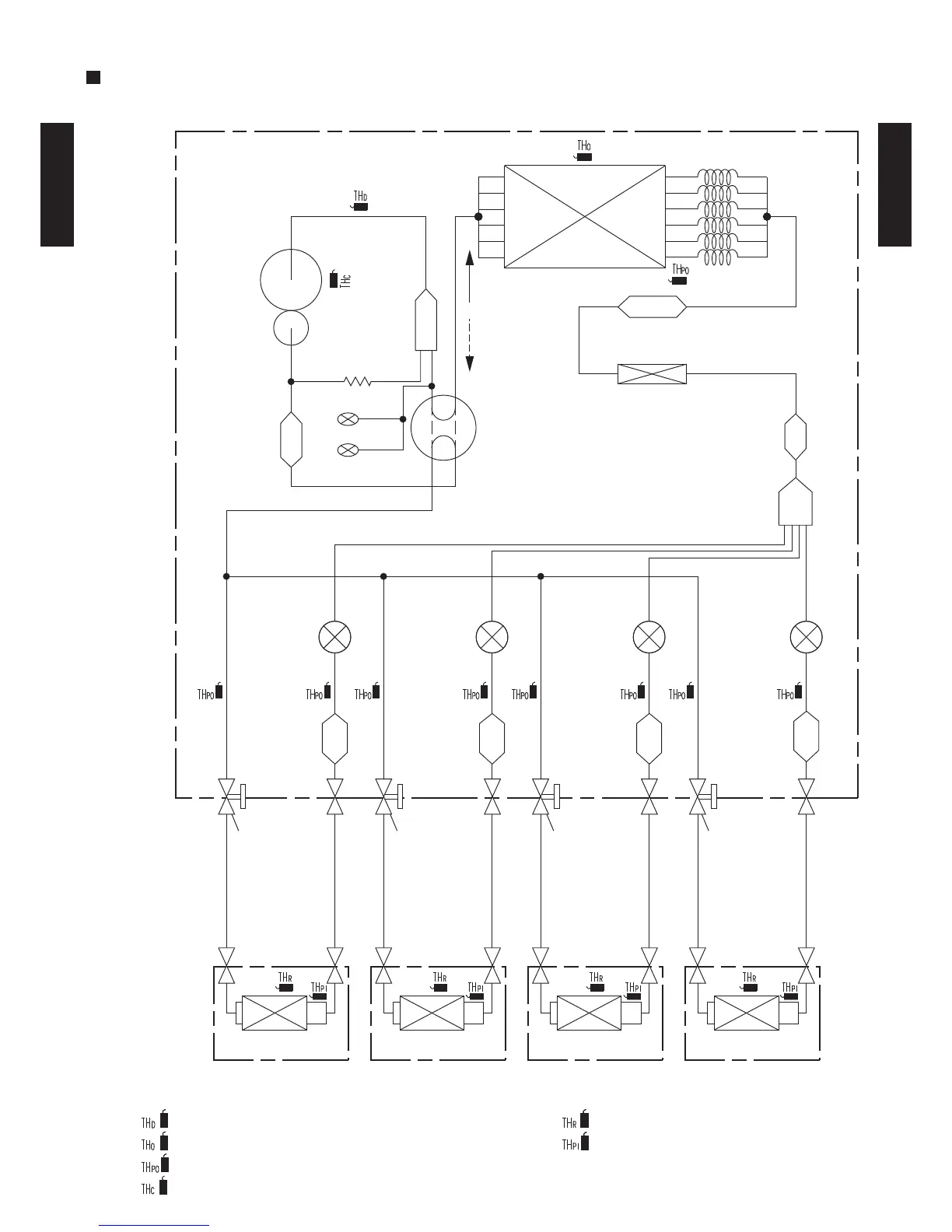

3. REFRIGERANT CIRCUIT
MODEL : AOU36R
HEAT EXCHANGER
HEAT EXCHANGERHEAT EXCHANGERHEAT EXCHANGERHEAT EXCHANGER
CHARGING
VALVE
CHARGING
VALVE
CHARGING
VALVE
CHARGING
VALVE
Outdoor unit
Indoor unit A Indoor unit B Indoor unit C Indoor unit D
OIL BACK
CAPILLARY
PRESSURE SWITCH(1)
PRESSURE SWITCH(2)
OIL SEPARATOR
COMPRESSOR
ACCUMULATOR
STRAINER
EXPANSION
VALVE
STRAINER
EXPANSION
VALVE
4-WAY VALVE HEAT COOL
STRAINER
EXPANSION
VALVE
RECEIVER TANK
STRAINER
STRAINER
DISTRIBUTOR
EXPANSION
VALVE
CONDENSER
CAPILLARY
TUBE
: THERMISTOR (DISCHARGE TEMP.)
: THERMISTOR (COMPRESSER TEMP.)
: THERMISTOR (ROOM TEMP.)
: THERMISTOR (PIPE TEMP.)
: THERMISTOR (PIPE TEMP.)
: THERMISTOR (OUTDOOR TEMP.)
