OUTDOOR UNIT AOU36R
OUTDOOR UNIT AOU36R
MODEL : AOU36R
[Unit : Inch (mm)]
[Unit : Inch (mm)]

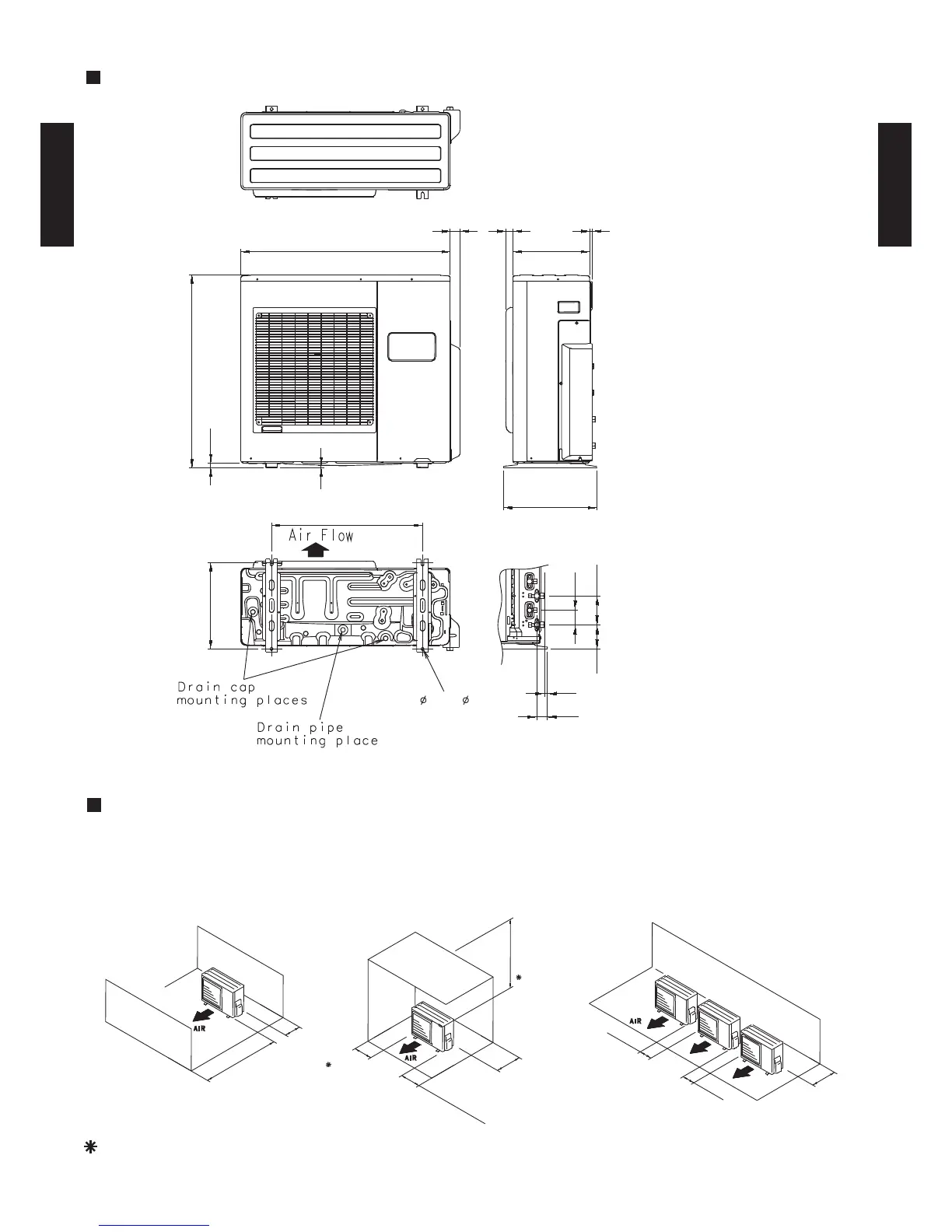

2. DIMENSIONS
35-7/16 (900)
1-11/16
(43)
1-7/32
(31)
15/32
(12)
13 (330)
15-3/4 (400)
4-1/2
(114)
3-11/16
(94)
15/32
(12)
1-5/8
(41)
2-1/4
(57)
11/32
(9)
13/16 (21)
14-7/8 (370)
4- 15/32 ( 12)
32-11/16 (830)
25-19/32 (650)
Top view
When there are obstacles at the
back or front sides.
When there are obstacles at the
back, side(s), and top.
When there are obstacles at the
back, side with the installation of
more than one unit.
23-5/8 (600)
or more
9-27/32 (250)
or more
9-27/32 (250)
or more
11-13/16 (300)
or more
23-5/8 (600) or more
3-15/16 (100)
or more
11-13/16 (300)
or more
3-15/16 (100)
9-27/32 (250) or more
(Service space)
MOUNTING POSITION
Front view
Side view
Bottom view
If the space is larger that is stated, the condition will be the same as that are no obstacles.
