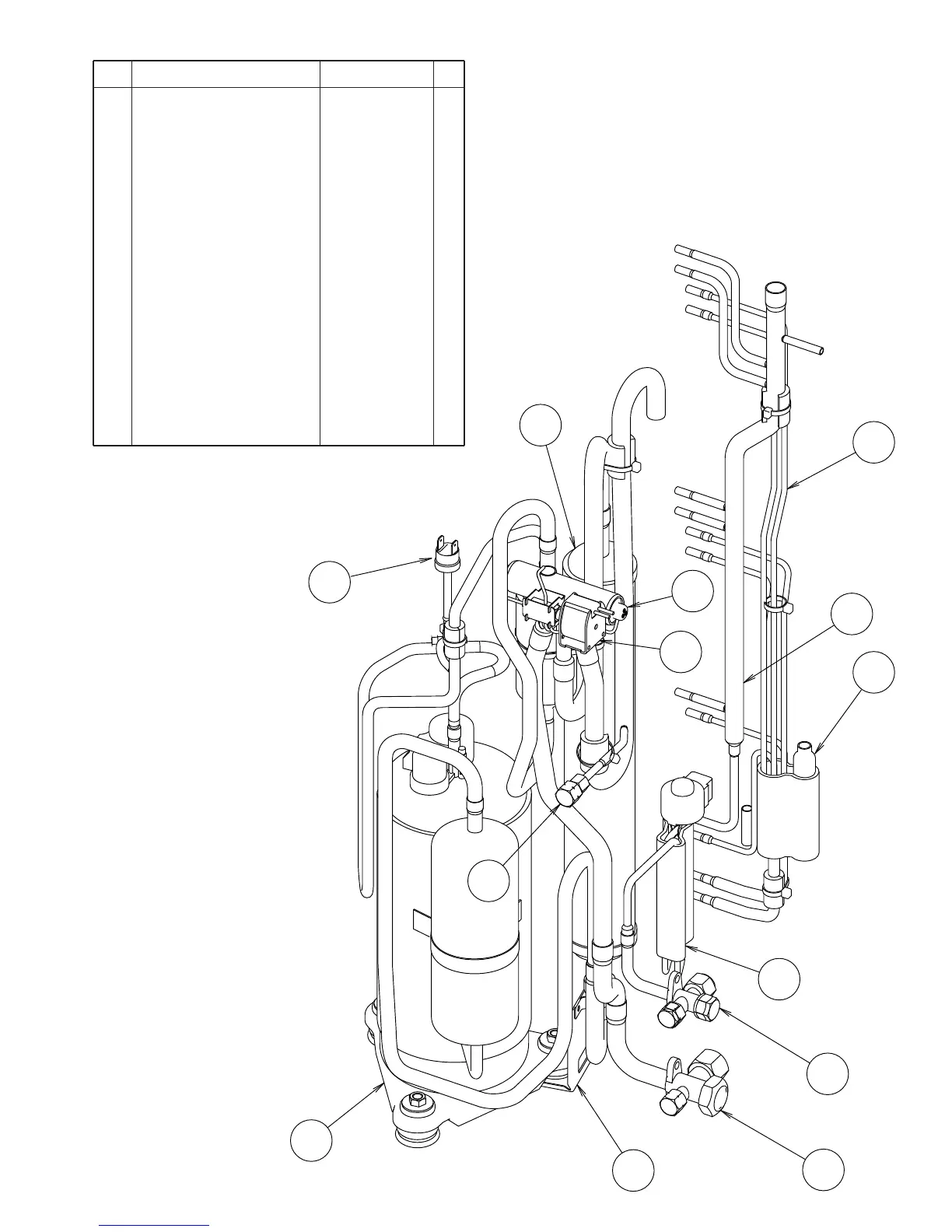

OUTDOOR UNIT
2008.02.08 20
29
26
31
30
32
33
22
23
21
24
25
28
27
32 Strainer Assy 9372524015
22 3-Way Valve Assy 9377958013
23 3-Way Valve Assy 9377959010
25 Check Joint Assy 9372802038
24 Compressor Assy 9372558126
26 Accumulator 9385005006
27 4-Way Valve 9900164010
28 Solenoid 9900165079
29 Pressure Switch 9900186012
30 Inlet Pipe (Cond) A Assy 9373461067
21 Accumulator Support Assy 313986353804
31 Outlet Pipe (Cond) A Assy 9374266104
33 Expansion Valve Assy 9970004018
-- Compressor Cover A 9374430086
-- Compressor Cover B 9374431083
-- Compressor Cover C 9372067062
Ref. Part numberDescription
