Fujitsu ASU24RLXQ User Manual

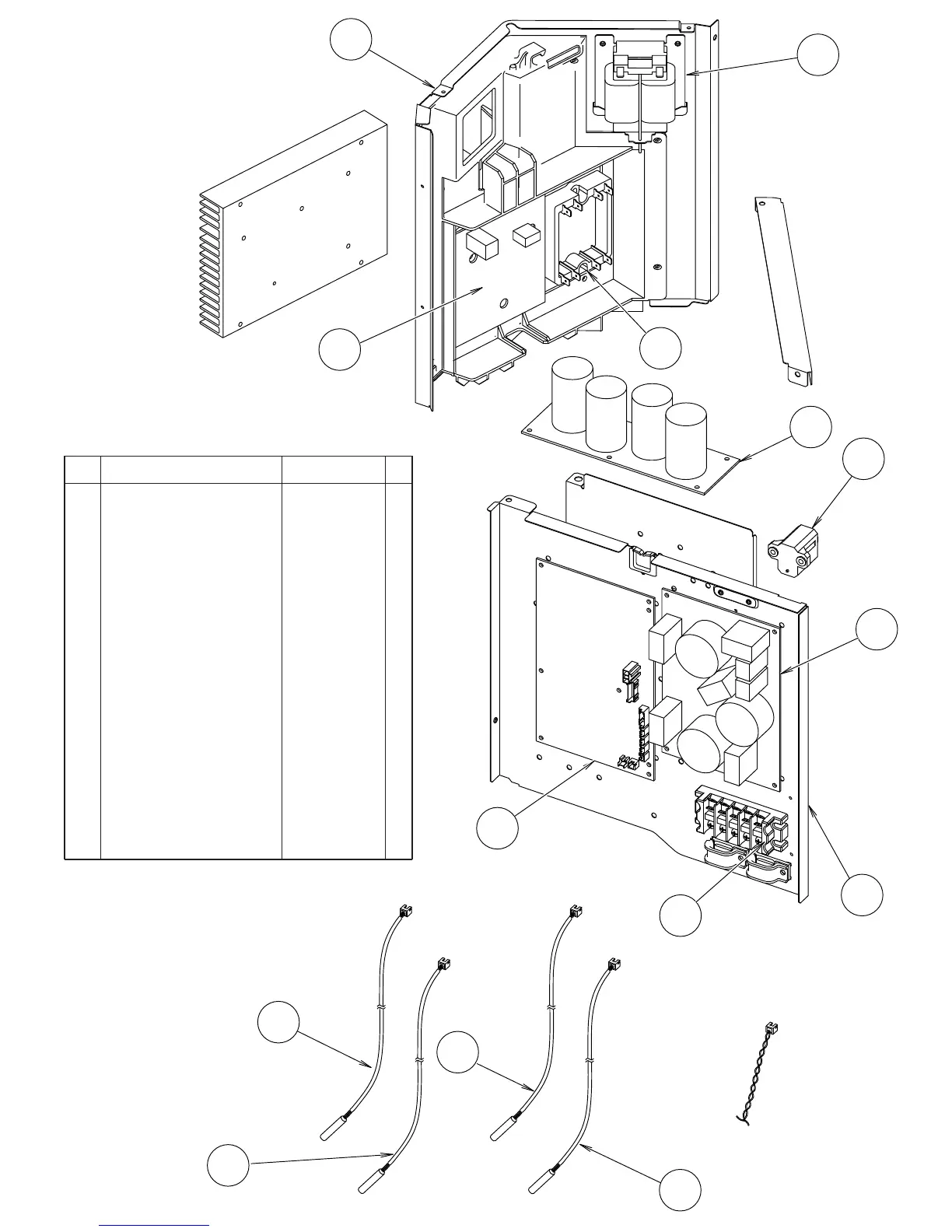

OUTDOOR UNIT
2008.02.08 21
52
53
54
48
45
50
44
49
43
51
47
41
46
42
Connector
: Blue
Connector
: Brown
Connector
: Brown
Connector
: Black
Connector : Red
Pressure switch wire
Ref.
42 Case (PCB) Assy 9375316013
41 Case (Inverter) 9375314019
47 ACTPM 9703457012
50 Thermistor 9704265012
43 Controller PCB Assy (24)
43 Controller PCB Assy (30)
9707121391
9707121407
44 Power Supply PCB Assy
(K05CW-0703HUE-FLO)
9707128178
45 Capacitor PCB Assy
(K05FB-0701HUE-P0)
9707257038
46 TR PCB Assy (IPM) 9707125139
48 Choke Coil 9900366018
49 Terminal 9900203023
51 Discharge Thermistor 9704219114
52 Thermistor (Outdoor Air) 9900378028
53 Compressor Thermistor 9900156022
-- PTC Thermistor 9704265012
54 Heat Exchanger Thermistor 9900476007
Part numberDescription
