3. Installation space
3-1. Models: AOUG09LZAS1, AOUG12LZAS1, and
AOUG15LZAS1
¢

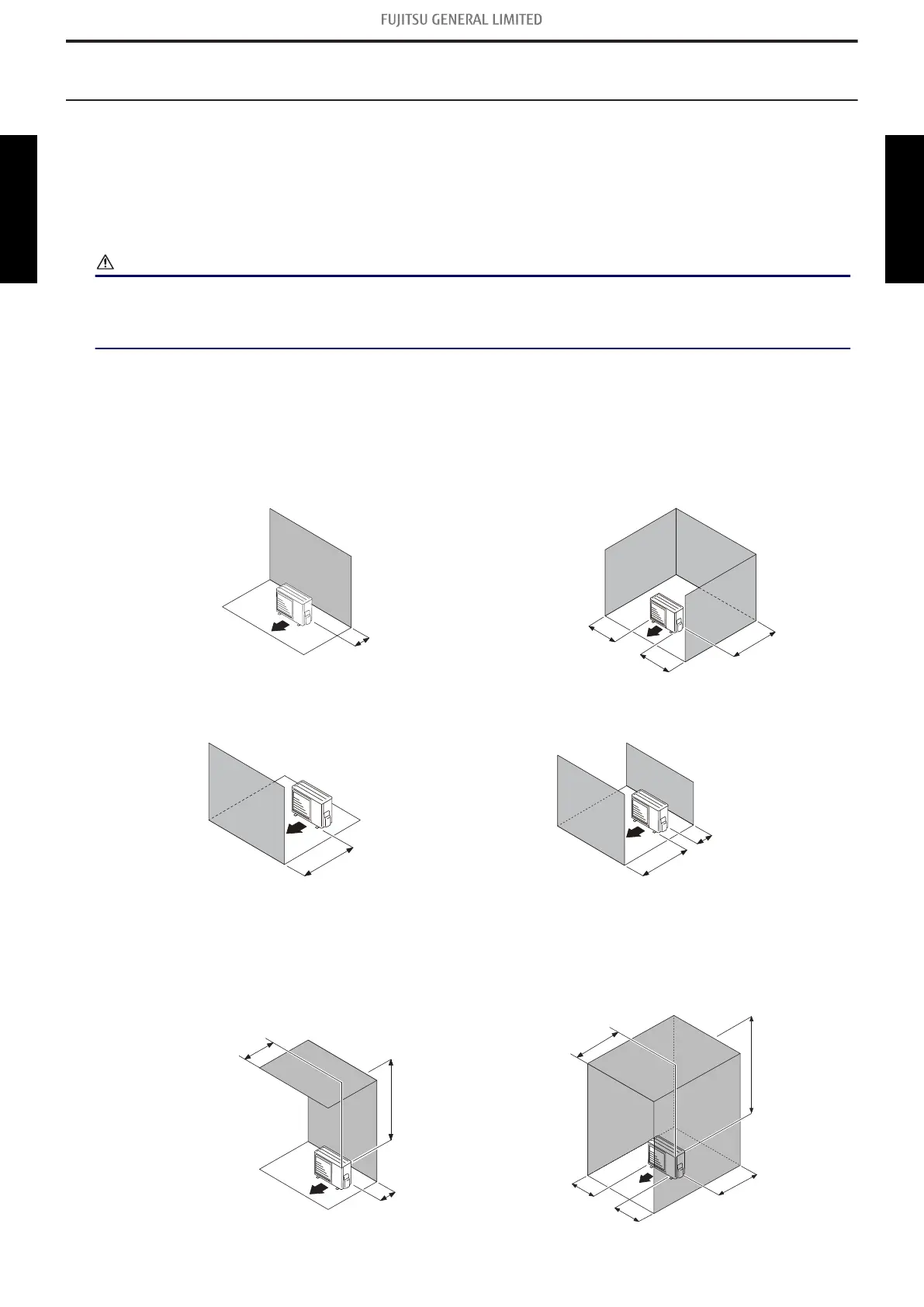

Space requirement
Provide sufficient installation space for product safety.
CAUTION
Keep the space shown in the installation examples.
If the installation is not performed accordingly, it could cause a short circuit and result in a lack of
operating performance.
 Single outdoor unit installation
• When the upper space is open:
Unit: in (mm)
Obstacles at rear only Obstacles at rear and sides
4 (100) or more
10 (250) or more
4 (100)
or more
4 (100)
or more
Obstacles at front Obstacles at front and rear
24 (600) or more
24 (600) or more
4 (100) or more
• When an obstruction in the upper space:
Unit: in (mm)
Obstacles at rear and above Obstacles at rear, sides, and above
4 (100) or more
Max. 7 (200)
24 (600)
or more
24 (600)
or more
4 (100) or more
10 (250) or more
4 (100) or more
Max. 7 (200)
- 56 -
3-1. Models: AOUG09LZAS1, AOUG12LZAS1, and AOUG15LZAS1 3. Installation space
OUTDOOR UNIT AOUG09-15LZAS1 OUTDOOR UNIT AOUG09-15LZAS1
